Solar PV Array Cable Connections: What Is an MC4 Connector?
The Critical Role of DC Connectors in Photovoltaic Arrays
In a commercial 1-megawatt solar photovoltaic installation, more than 4,000 individual electrical connections are exposed to scorching summer desert heat, freezing sub-zero winter blizzards, ultraviolet radiation, and driving rain for 25 to 30 years without maintenance. Every single connection must carry continuous high-voltage direct current (up to 1500V DC) with virtually zero electrical resistance.

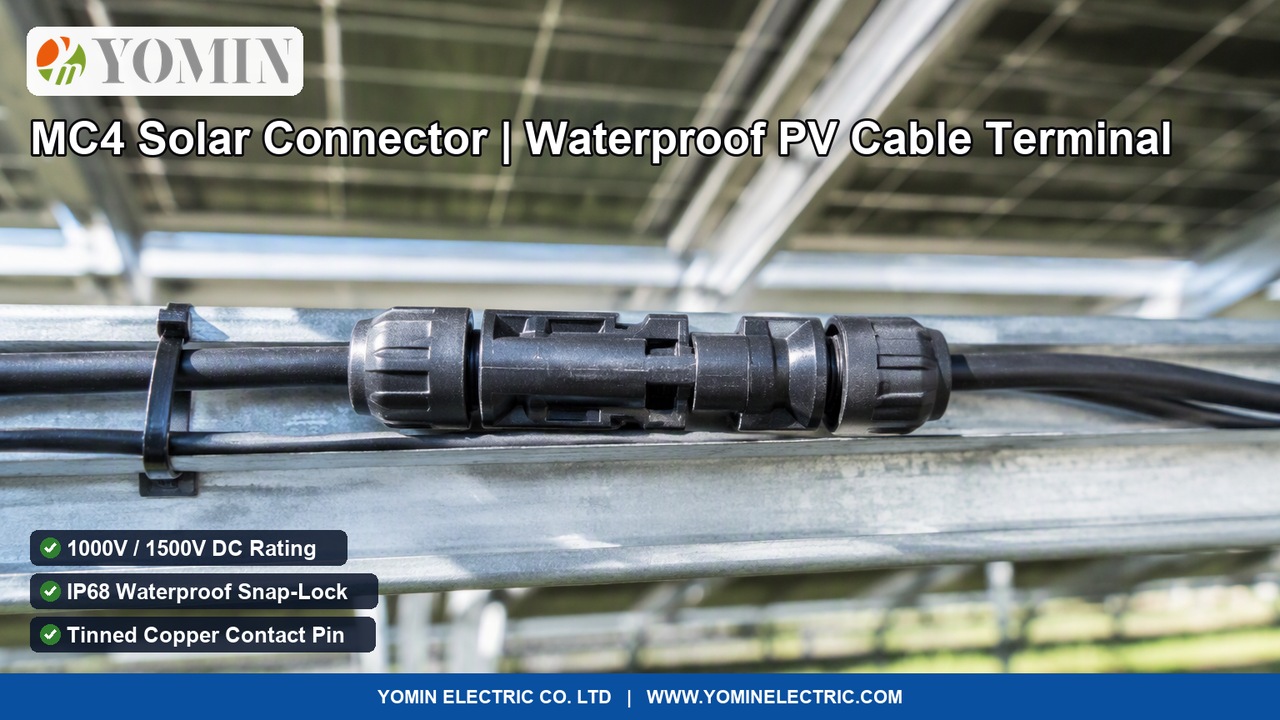

The MC4 solar connector is the universal standard that makes modern high-voltage solar arrays mechanically robust, waterproof, and rapidly deployable.
Anatomy and Engineering of an MC4 Connector
A certified MC4 connector pair comprises four precision-engineered elements:
- Silver or Tin-Plated Copper Contact Pin: The internal conductive core is machined from high-conductivity copper alloy. A precision open-barrel crimp zone forms a gas-tight mechanical bond with stranded solar cable (4mm², 6mm², or 10mm²), while spring-loaded contact louvers maintain continuous multi-point contact pressure.
- UV-Resistant PPO Housing: The outer body is molded from engineering-grade Polyphenylene Oxide (PPO / PPE). This material resists continuous solar ultraviolet degradation, withstands extreme thermal cycling from -40°C to +90°C, and carries a UL94-V0 self-extinguishing flame rating.
- Compression Sealing Gland: A grooved internal silicone rubber compression ring clamps down symmetrically around the outer cable jacket as the rear screw cap is torqued, achieving an IP68 hermetic seal against water and dust ingress.
- Audible Snap-In Safety Latch: Dual external latch arms snap securely into matching retention slots on the female housing. The connection cannot vibrate loose under wind buffeting and requires a specialized MC4 disconnect tool to unlock, fulfilling electrical safety standards for touch-safe high-voltage DC equipment.
Comparison of MC4 Cable Sizes and Ampacity Ratings
| Cable Cross-Section | Rated Current (Ambient 60°C) | Maximum DC System Voltage | Primary Application |
|---|---|---|---|
| 2.5 mm² (14 AWG) | Up to 25 Amperes | 1000V DC | Light commercial solar, off-grid RV and marine battery charging. |
| 4.0 mm² (12 AWG) | Up to 32 Amperes | 1000V / 1500V DC | Standard commercial rooftop solar strings and residential arrays. |
| 6.0 mm² (10 AWG) | Up to 45 Amperes | 1500V DC | High-efficiency commercial solar arrays and multi-string trunk runs. |
| 10.0 mm² (8 AWG) | Up to 65 Amperes | 1500V DC | Utility-scale combiner box homerun feeds and high-current bifacial solar strings. |
Frequently Asked Questions
What is an MC4 connector and why did it become the global standard for solar panels?
An MC4 connector (short for "Multi-Contact, 4 millimeter pin diameter") is a single-contact, touch-proof electrical connector specifically designed for connecting direct-current (DC) photovoltaic solar panel cables. Developed originally by Multi-Contact (now Stäubli Electrical Connectors), the 4mm round pin format revolutionized solar engineering by replacing hazardous screw-terminal junction boxes with a standardized, push-in, snap-locking waterproof connection. Today, virtually all commercial solar panels, string inverters, and DC combiner boxes worldwide are pre-wired with factory-molded MC4 male and female leads.
Why is cross-mating different brands of "MC4-compatible" connectors dangerous?
While many manufacturers produce connectors that physically plug into authentic MC4 terminals (often marketed as "MC4-compatible"), intermating different connector brands is strictly prohibited by international electrical codes (such as NEC 690.33(C) and IEC 62548). Microscopic dimensional tolerances, differences in contact pin spring temper, and incompatible polymer expansion rates create micro-gaps between contact surfaces. Under heavy DC string currents (up to 30A or 40A), loose contact resistance generates intense localized heating, melting the plastic housing and drawing a continuous high-voltage DC electric arc that is the leading cause of commercial rooftop solar fires.
What is the difference between male and female MC4 connectors regarding polarity?
In solar engineering, the physical gender of an MC4 connector refers strictly to the plastic insulating housing, NOT the metal contact pin inside. A "Female" MC4 connector consists of a wider cylindrical outer shell that contains a male metal pin inside, while a "Male" MC4 connector has two latch prongs and contains a hollow female contact socket. By convention, solar panel manufacturers attach the female MC4 housing to the positive (+) DC module cable and the male MC4 housing to the negative (-) DC cable, ensuring polarity keying during array stringing.
