Solar PV Array Protection & Wiring: What Is a Solar Combiner Box?
Centralizing DC Power in Commercial Solar Arrays
In utility-scale solar farms and commercial rooftop photovoltaic installations, solar panels are wired in series to build high system voltages (typically 600V to 1500V DC), forming individual "strings." To deliver massive power output to the central inverter, multiple strings must be paralleled together. Running dozens of separate positive and negative DC cable pairs over long distances across the solar field is financially prohibitive, causes excessive voltage drops, and complicates troubleshooting.
The solar combiner box serves as the central wiring hub of the solar array. It aggregates 4, 8, 12, or 16 parallel strings into a single consolidated positive, negative, and earth run, while packaging vital circuit protection into a rugged outdoor enclosure.

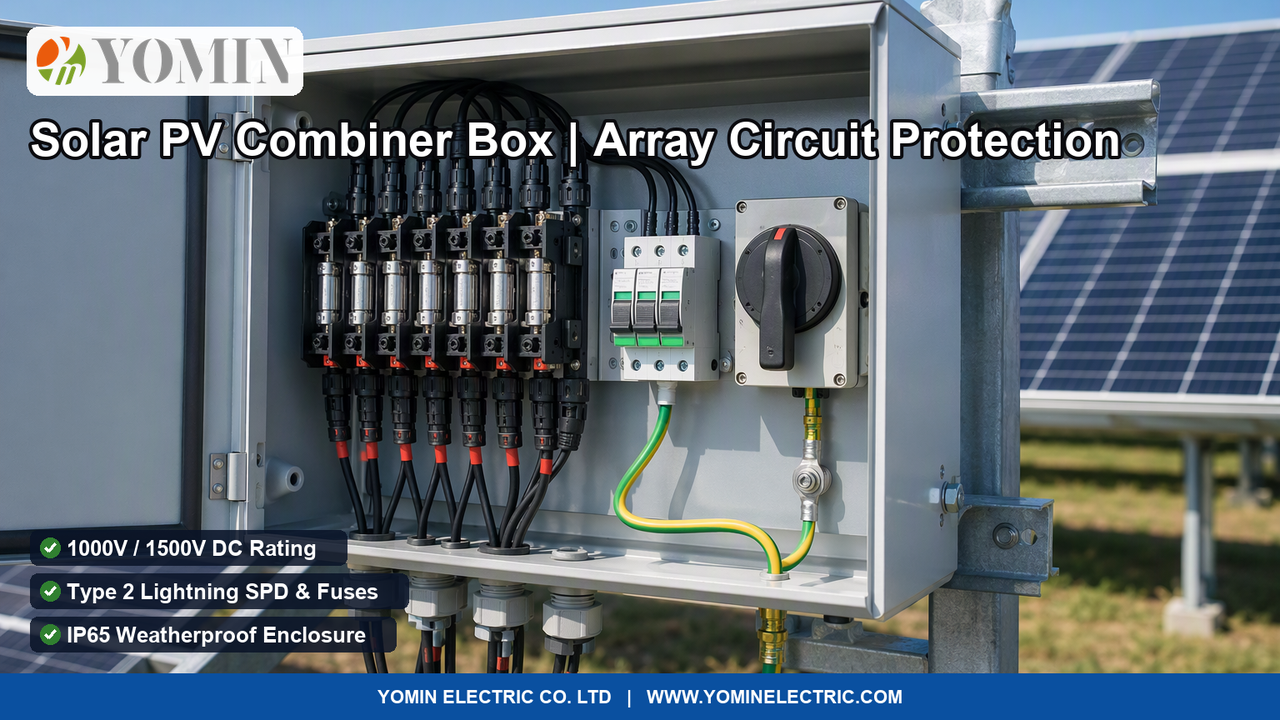

Internal Components of a Commercial PV Combiner Box
A certified solar combiner box integrates five critical electrical subsystems:
- gPV DC String Fuses: Both positive and negative legs of every incoming string pass through 1000V or 1500V cylindrical ceramic fuses (10×38mm or 14×51mm). If reverse current flows back into a shaded or faulted string, the fuse element ruptures within milliseconds, isolating the faulted branch.
- DC Surge Protective Device (SPD): Large outdoor solar fields act as giant antennas for lightning electromagnetic pulses (LEMP). A dedicated Type 2 DC surge arrester with high-energy zinc oxide metal-oxide varistors (MOV) clamps transient overvoltages down to safe levels, diverting lightning energy directly to earth ground.
- Heavy-Duty DC Loadbreak Disconnector: A high-voltage rotary DC isolator allows field technicians to safely disconnect the entire PV array under full load during routine maintenance, string testing, or fire department emergency response.
- Anti-Backfeed Blocking Diodes (Optional): In specialized battery-charging solar architectures, power diodes prevent battery discharge back into the solar modules during nighttime darkness.
- Smart String Monitoring Board: Modern commercial boxes feature Hall-effect current sensors on each string channel, communicating via RS485 Modbus RTU to SCADA control centers to pinpoint underperforming or soiled panel strings instantly.
Comparison of Solar Combiner Box Architectures
| System Architecture | String Capacity | Maximum Voltage | Best Application |
|---|---|---|---|
| Compact Residential Combiner | 2 to 4 Strings | 600V / 1000V DC | Residential rooftop solar, off-grid cabins, solar water pumping stations. |
| Commercial Rooftop Combiner | 6 to 8 Strings | 1000V DC | Industrial factory rooftops, commercial shopping centers, multi-MW distributed arrays. |
| Utility-Scale High-Voltage Combiner | 12 to 16 Strings | 1500V DC | Ground-mounted utility solar farms, desert solar power plants, central inverter feeds. |
Frequently Asked Questions
What is a solar combiner box and why is it necessary in photovoltaic installations?
A solar combiner box (also known as a PV string combiner box or DC junction box) is an outdoor-rated electrical enclosure designed to consolidate multiple incoming direct-current (DC) strings from photovoltaic panel arrays into a single, high-capacity DC output feed that routes to a central or string solar inverter. In commercial and utility-scale solar installations, connecting dozens of individual panel strings directly to an inverter creates messy wiring and violates electrical codes. The combiner box centralizes string wiring, houses essential 1000V/1500V DC string fuses, integrates lightning surge arresters (SPDs), and provides a rapid manual DC disconnect switch for maintenance and fire emergency isolation.
How does a DC solar combiner box differ from a standard AC distribution junction box?
Direct current generated by solar panels behaves fundamentally differently than utility alternating current. Unlike AC power, which crosses zero voltage 100 or 120 times every second (naturally extinguishing electrical arcs), high-voltage DC (up to 1000V or 1500V) has no zero-crossing point. When a switch opens under DC load, an intense sustained plasma arc forms. Standard AC circuit breakers, fuses, and junction boxes cannot extinguish DC arcs and will suffer violent catastrophic burn-through. A dedicated DC solar combiner box is engineered with specialized gPV ceramic-bodied sand-filled fuses, multi-pole series-contact DC loadbreak switches, and heavy non-conductive internal arc shields rated explicitly for continuous DC arc suppression.
Do all solar power systems require a combiner box, or can panels wire directly to the inverter?
Small residential solar arrays featuring only one or two strings (e.g. 8 to 16 panels) rarely need a combiner box, as modern string inverters frequently feature dual Maximum Power Point Tracker (MPPT) inputs with internal DC fuses. However, whenever three or more strings are wired in parallel to a single inverter MPPT channel, international electrical codes (such as NEC 690 and IEC 62548) strictly mandate overcurrent protection for every string. Without a fused combiner box, a short-circuit fault in one damaged solar panel string will cause the remaining parallel strings to backfeed into the faulted string, exceeding the conductor ampacity and igniting a severe rooftop fire.
