Solar Fuse Guide: 1000V & 1500V DC String Protection Standards

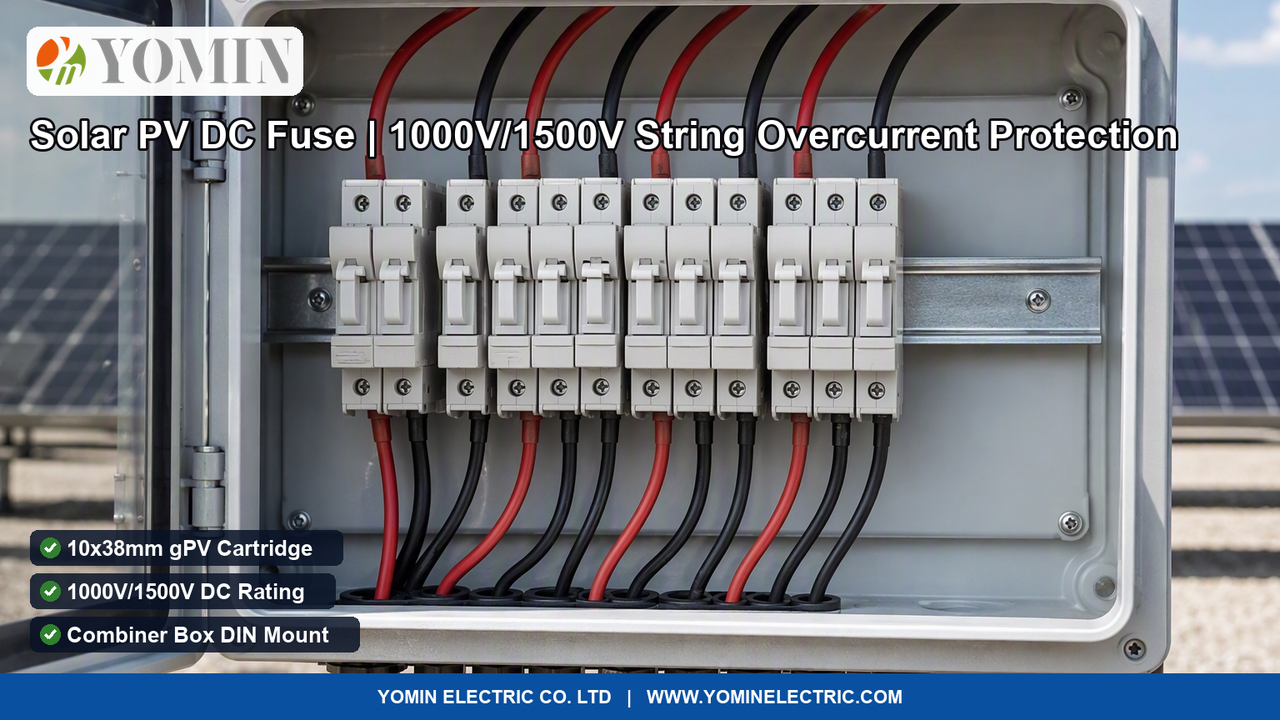

The Critical Role of Dedicated gPV Fuses in Solar Photovoltaic Systems

Solar photovoltaic power generation presents an extreme and unique operating environment for electrical overcurrent protective devices. Unlike traditional utility grids powered by synchronous rotating generators capable of delivering short-circuit currents 10 to 20 times normal load, solar arrays behave as constant-current power sources. The maximum fault current produced by a faulted solar module is only marginally higher (typically 1.1 to 1.3 times) than its normal operating current.

To address this narrow margin, the International Electrotechnical Commission introduced IEC 60269-6, establishing the dedicated Class gPV operating characteristic. A certified gPV solar fuse is engineered to clear low-level reverse overcurrents (as low as 1.35 to 1.45 times rated current) within a defined time frame, while interrupting catastrophic short-circuit currents up to 33,000 Amperes at full system voltages of 1000V DC or 1500V DC.

The Physics of DC Arcing vs. AC Arc Quenching

Using standard AC industrial fuses in solar arrays is one of the most hazardous shortcuts in electrical contracting. The fundamental differences in arc behavior dictate entirely distinct internal construction:

• AC Zero-Crossing Extinguishment: An AC voltage cycle crosses zero volts 100 times per second (in a 50Hz grid). When an AC fuse link melts, the resulting miniature arc naturally cools and de-ionizes at the voltage zero-crossing, allowing standard glass or resin tubes to clear faults safely.
• Unbroken DC Arcing: Solar direct current maintains a smooth, continuous electrical potential with zero periodic zero-crossings. When a fuse link separates under 1000V or 1500V DC, the ionized air forms a self-sustaining plasma arc burning at temperatures in excess of $3,500^\circ ext{C}$. Unless the fuse incorporates extended arc-path geometry, specialized chemical binders, and high-purity quartz grain packing, the DC arc will fail to extinguish, shattering the cartridge and igniting the combiner box enclosure.

1000V vs. 1500V System Architecture: Sizing and Standards

Solar EPCs specify DC fuses primarily across two system voltage tiers:

The "N-1" Reverse Current Rule: When Are String Fuses Legally Required?

According to IEC 62548 and NEC Article 690.9, individual string overcurrent protection is required whenever the number of parallel-connected strings ($N$) satisfies the formula:

$$N - 1 \geq rac{I_{ ext{mod\_max\_fuse}}}{I_{sc}}$$

Where $I_{ ext{mod\_max\_fuse}}$ is the maximum series fuse rating marked on the solar module nameplate (typically $15 ext{A}$ to $25 ext{A}$), and $I_{sc}$ is the module short-circuit current (typically $10 ext{A}$ to $14 ext{A}$). In practical terms:

1. 1 or 2 Strings in Parallel: No string fuses are required. If a fault occurs in one string of a two-string system, the maximum current flowing into the faulted string from the single healthy string cannot exceed $1 imes I_{sc}$, which is well within the module's reverse current withstand capability.
2. 3 or More Strings in Parallel: Dedicated string fuses are mandatory on both positive and negative poles (or positive only in grounded systems). If one string faults, the remaining $N-1$ strings feed their combined currents into the fault ($2 imes I_{sc}$ or greater), exceeding the cable and module withstand rating within seconds.
