Solar PV Systems: What Is a Solar DC Isolator Switch?
The Critical Role of Solar DC Isolator Switches in Photovoltaic Safety
In modern solar photovoltaic (PV) power systems, solar panels silently convert solar irradiance into high-voltage direct current (DC). Unlike conventional alternating current (AC) power grids, solar modules cannot simply be turned "off" with a wall switch—as long as sunlight strikes the photovoltaic cells, live DC voltage up to 1000V or 1500V remains present on the solar string conductors.

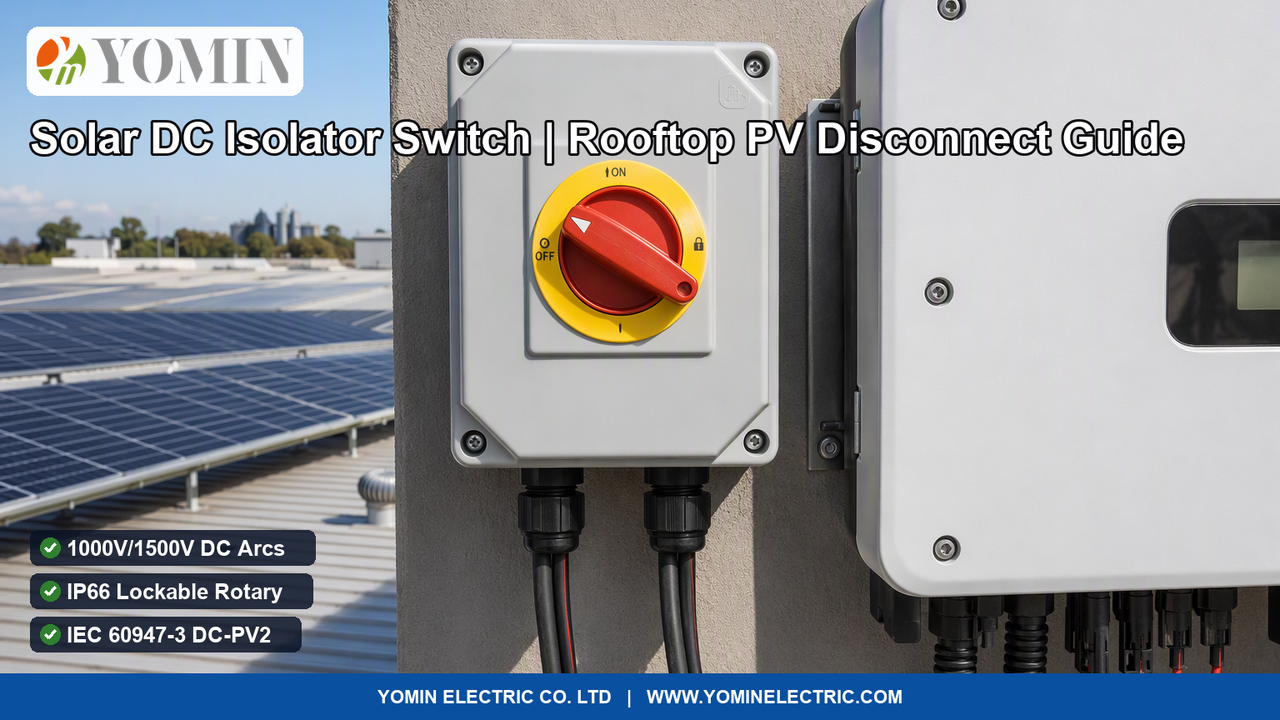

To safely install, inspect, service, or decommission a solar string inverter—and to protect emergency firefighters during a building blaze—the electrical system mandates a dedicated Solar DC Isolator Switch.
The Physics of DC Arcing vs. AC Switching
The primary reason standard electrical switches fail catastrophically on solar arrays lies in the fundamental physics of electric arcs:
- AC Zero-Crossing Arc Extinction: In an alternating current circuit, the voltage wave naturally drops to zero volts twice per cycle (100 times per second in a 50Hz grid). When switch contacts part, the arc automatically extinguishes at the next zero crossing.
- The Continuous DC Arc Hazard: Direct current has no natural zero crossing. When contacts open under 1000V DC load, an electric plasma arc forms instantly across the contact air gap. Reaching temperatures over $3000^\circ ext{C}$, a sustained DC arc acts like an electric welding torch, vaporizing metal terminals and igniting surrounding building materials unless aggressively quenched.
Engineered DC Arc Suppression Mechanisms
YOMIN's ELR1 and SIS-32 series solar DC isolators incorporate advanced multi-stage arc extinguishing architectures:
- Rotary Knife Double-Break Contacts: Each pole utilizes two stationary contact points and a rotating copper blade that breaks the circuit at two separate points simultaneously, halving the arc voltage per gap.
- Spring-Loaded Snap-Action Mechanism: The internal contact speed is completely independent of the operator's handle turning speed. Once the spring trip point is passed, the contacts snap open at high velocity ($< 3\, ext{ms}$), rapidly stretching the arc beyond its breakdown threshold.
- Magnetic Arc Blowout Chambers: Powerful internal permanent magnets create a perpendicular magnetic field that deflects the ionizing arc into de-ionizing splitter plates, rapidly cooling and extinguishing the arc before contact damage occurs.
Technical Specifications
| Technical Specification & Parameter | Standard Metric Rating & Engineering Compliance |
|---|---|
| Rated Operational Voltage ($U_e$) | Standard ratings of $1000\, ext{V DC}$ and $1500\, ext{V DC}$ specifically engineered for string inverters and utility solar arrays |
| Rated Operational Current ($I_e$) | Continuous load-break currents of $16\, ext{A}$, $25\, ext{A}$, and $32\, ext{A}$ per pole; parallel wiring configurations up to $50\, ext{A}$ |
| Utilization Category Standard | Classified as **DC-PV2** under IEC 60947-3 (highest safety rating for connecting and disconnecting photovoltaic circuits under full electrical load) |
| Arc Extinguishment Mechanism | Rotary double-break knife contacts with patented internal permanent magnet arc blowout chambers; extinguishes DC arcs in under $3\, ext{milliseconds}$ |
| Environmental Enclosure Protection | Heavy-duty UV-stabilized polycarbonate enclosure rated **IP66** water-jet proof with silicone sealing gaskets for harsh outdoor desert & coastal climates |
| Safety Lockout Mechanism | Ergonomic high-visibility red/yellow rotary handle equipped with an integrated padlockable lockout hole in the OFF position for maintenance safety |
| Cable Entry Connection Ports | Equipped with M20 / M25 IP68 compression cable glands or factory pre-wired genuine MC4 solar connectors for rapid installation |
| International Manufacturing Standards | Fully certified to IEC 60947-3, AS/NZS 5033, UL 508I, and NEC Article 690 solar disconnect requirements |
Frequently Asked Questions
What is a solar DC isolator switch and why can't you use a standard AC switch for solar panels?
A solar DC isolator switch is a specially engineered load-break switch installed between the photovoltaic solar panels and the inverter to manually disconnect direct current power. <strong>You can NEVER use a standard AC switch for solar DC circuits:</strong> <ul><li><strong>Alternating Current (AC):</strong> Crosses zero voltage 100 or 120 times every second (50Hz or 60Hz), naturally extinguishing electrical arcs as contacts open.</li><li><strong>Direct Current (DC):</strong> Maintains a constant continuous voltage without any zero-crossing point. When contacts open under 1000V DC load, a ferocious continuous plasma arc exceeding $3,000^\circ ext{C}$ forms. In an AC switch, this arc bridges the open contacts, melts the plastic housing, and causes catastrophic rooftop fires!</li></ul>A true solar DC isolator utilizes spring-loaded snap-action contacts and magnetic arc blowout chambers to stretch, cool, and extinguish DC arcs within milliseconds.
Where should a solar DC isolator switch be located in a photovoltaic installation?
According to international solar installation codes (such as IEC 60364-7-712 and NEC 690), DC isolation must be provided at two strategic locations: <ol><li><strong>Adjacent to the Inverter:</strong> An isolator must be located within 1 to 2 meters of the inverter, within line of sight, allowing technicians to completely de-energize the DC input before opening the inverter for maintenance.</li><li><strong>Near the Solar Array (Rooftop):</strong> In commercial and multi-string installations, a rooftop DC isolator allows firefighters and emergency crews to isolate the high-voltage DC conductors entering the building envelope, eliminating electrocution hazards during rooftop emergencies.</li></ol>
What does the IEC 60947-3 DC-PV2 utilization category signify?
IEC 60947-3 defines specific utilization categories for low-voltage switchgear. In solar photovoltaic applications: <ul><li><strong>DC-PV1:</strong> Rated for non-frequent switching of pure resistive or slightly inductive solar circuits under limited load.</li><li><strong>DC-PV2:</strong> The highest, most rigorous international classification. It certifies that the switch is capable of repeatedly breaking and making full operational photovoltaic currents at maximum rated voltage (up to 1500V DC) during severe over-current and fault conditions without contact welding or enclosure rupture.</li></ul>Always ensure your solar switch is certified to DC-PV2 for absolute balance-of-system safety.
Solar PV Systems: What Is a Solar DC Isolator Switch?
Designing rooftop commercial solar systems, utility-scale photovoltaic farms, or residential solar installations requiring certified 1000V/1500V IP66 DC isolator switches compliant with IEC 60947-3 DC-PV2? YOMIN manufactures rugged, weatherproof rotary DC disconnectors engineered for maximum firefighter and maintenance safety.
