What is the difference between a step-up and a step-down transformer?

A step-up transformer increases output voltage above input voltage (turns ratio > 1:1). A step-down transformer reduces output voltage below input voltage (turns ratio < 1:1). Many portable transformers like the ST series are bidirectional — the output socket selection determines which direction the voltage conversion runs.

What is an isolation transformer and when do I need one?

An isolation transformer provides galvanic isolation between primary and secondary windings. It does not necessarily change voltage (often 1:1 ratio) but breaks the conductive path between primary and secondary earth references. Use isolation transformers in medical environments, laboratory test benches, data centre UPS bypass circuits, and anywhere safety from ground faults is critical.

Transformers

Step-Up and Step-Down Transformers: Voltage Conversion, Sizing and Isolation Explained

Q: What is a step-up transformer used for?

A step-up transformer increases voltage from a lower level to a higher level. Common uses: running 220V appliances from a 110V mains supply (e.g. importing equipment from the US to Europe or the Middle East), powering long cable runs where voltage drop would otherwise be excessive, and boosting supply voltage into industrial inverters.

Q: How do I calculate the kVA size I need?

Add the watt ratings of all loads you intend to connect, then divide by the power factor (use 0.8 if unknown). Multiply by a safety margin of 1.25. Round up to the next standard VA/kVA size. Example: 1500 W load ÷ 0.8 pf × 1.25 = 2344 VA → select a 2500 VA (2.5 kVA) transformer.

Q: What is an isolation transformer and when do I need one?

An isolation transformer provides galvanic isolation between primary and secondary windings. It does not necessarily change voltage (often 1:1 ratio) but breaks the conductive path between primary and secondary earth references. Use isolation transformers in medical environments, laboratory test benches, data centre UPS bypass circuits, and anywhere safety from ground faults is critical.

Q: Can a step-up transformer run continuously?

Yes, if sized correctly. Transformers are rated for continuous duty at their VA/kVA nameplate rating. Running a transformer above its rated load causes overheating and insulation degradation. Our ST series includes a thermal protection circuit that trips the integrated MCB breaker on sustained overload.

September 12, 20268 min read

A 110V appliance imported from the United States will not survive being plugged into a 220V European or Middle Eastern socket. A step-up or step-down transformer is the standard, reliable fix — and understanding how to size and specify one correctly is the difference between a safe installation and a burned transformer.

Step-up vs step-down: the basic difference

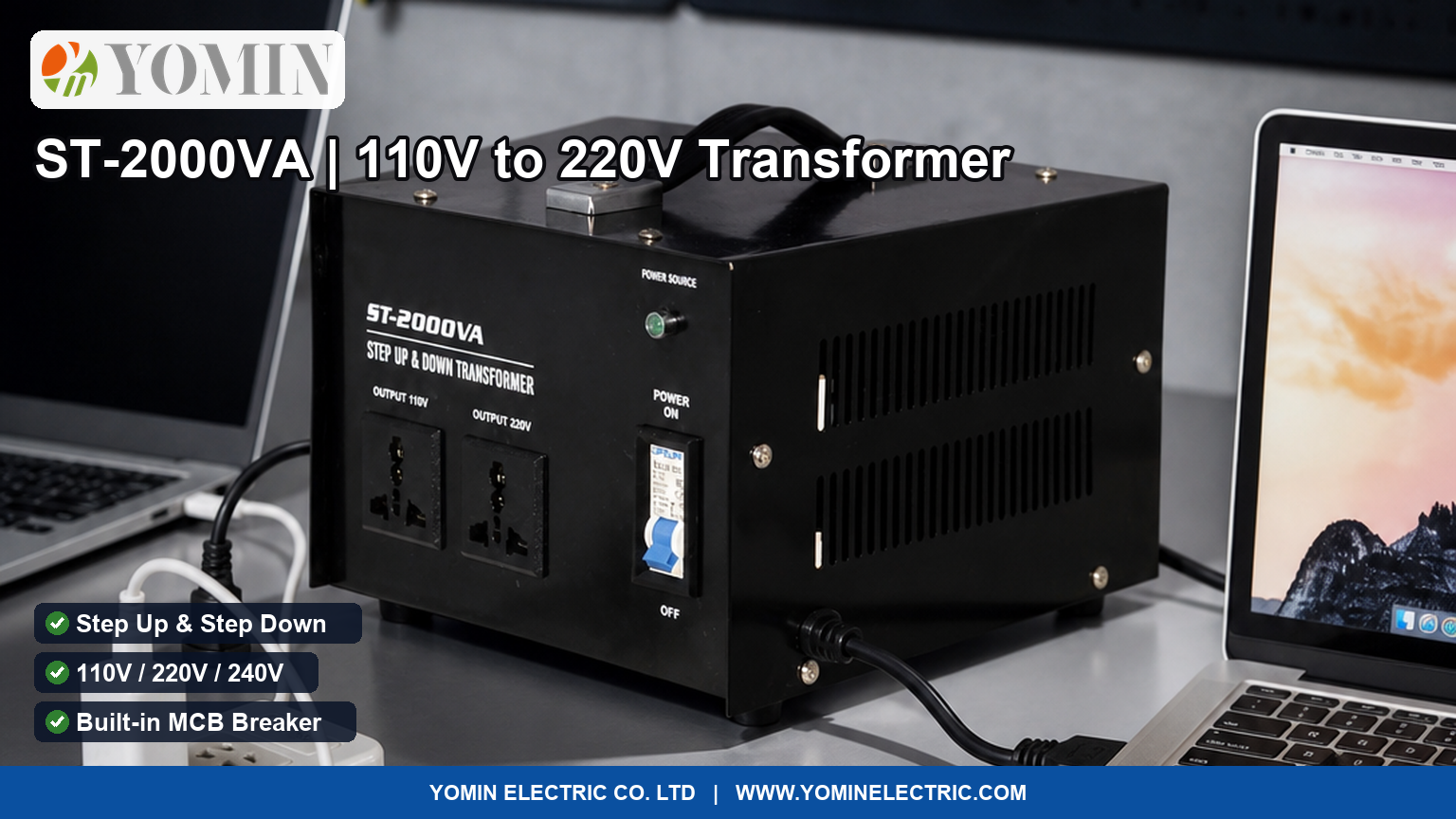

Both types work on the same transformer principle: a changing magnetic flux through a shared iron core links two coils of wire and induces a voltage proportional to the turns ratio. A step-down transformer has more turns on the primary (high-voltage side) than the secondary, so the output voltage is lower. A step-up transformer has more turns on the secondary, so the output voltage is higher. Many portable units like the ST-2000VA are bidirectional: switching the input to the 110V socket and using the 220V socket as output converts in one direction; reversing the connections converts the other way.

Common voltage conversion needs and the transformer you need

110V ↔ 220V — the most common portable scenario; ST series covers 500VA to 10kVA
220V ↔ 240V — buck-boost range, typically 100VA to 2kVA
110V/120V ↔ 220V/230V/240V — bidirectional ST/TC series, all in one box
Isolation only (1:1) — BK / JBK control transformer series, 400VA to 2kVA

How to size a transformer in VA or kVA

The most common mistake is selecting a transformer that exactly matches the load wattage. Transformers must be derated for inductive loads (motors, compressors, air conditioners) and for starting currents. The safe formula:

Sum all connected loads in watts.
Divide by the load power factor (0.7–0.9 for mixed loads; use 0.8 if unknown).
Multiply the result by 1.25 to give a 25% safety headroom.
Round up to the next standard size.

Example: 1 air conditioner (900 W) + 1 laptop (200 W) + 2 lamps (100 W) = 1200 W total load. 1200 ÷ 0.8 × 1.25 = 1875 VA → choose ST-2000VA.

Isolation transformers: when voltage conversion isn't the goal

An isolation transformer provides galvanic separation — the primary and secondary share no direct electrical connection. Uses: medical-grade patient areas (IT power systems per IEC 60364-7-710), laboratory benches where earth faults must not propagate, audio/AV equipment free of ground loops, and data centre bypass circuits. The BK and JBK machine-tool control transformer series provides 400VA–5kVA 1:1 isolation with 36V, 42V, 110V or 220V secondary options for control circuits.

Built-in protection and safety features

Our ST and TC portable transformers include an integrated MCB (miniature circuit breaker) on the output side. The MCB trips on sustained overload or short-circuit within the connected equipment, protecting both the transformer and the appliances. The housing is ventilated sheet steel with a carrying handle for portability. All units are CE and ISO 9001 certified.

FAQ

What is a step-up transformer used for?

A step-up transformer increases voltage — most commonly to run 220V equipment from a 110V supply, or to boost low voltage on long cable runs.

How do I calculate the kVA size I need?

Sum all load watts, divide by power factor (0.8 if unknown), multiply by 1.25, and round up to the next standard VA/kVA size.

What is an isolation transformer?

An isolation transformer provides galvanic separation between primary and secondary — used in medical, laboratory and AV environments where ground faults must not propagate.

Can a step-up transformer run continuously?

Yes, if sized correctly. Running above the VA nameplate rating causes overheating. Our ST series includes an integrated MCB for overload protection.

Converting voltage for imported equipment or an off-grid installation?

We manufacture ST bidirectional step-up/step-down transformers from 500VA to 10kVA, TC and BK isolation transformers for machine-tool and control duty, and JBK control power supplies. Send us your load list and supply voltage — we confirm the right unit within one working day.
