Substation & Industrial Power Measurement: What Is a Current Transformer?
Current Measurement Challenges in Central Asian Grid Modernization
Across the high-voltage transmission networks and industrial distribution hubs of Kazakhstan, Uzbekistan, and Central Asia, power utilities are executing large-scale retrofits of Soviet-era distribution substations. A central pillar of this modernization is the transition to Automated Systems for Commercial Electricity Metering (ASKUE / AMR). Central Asian industrial switchgear operates under punishing continental climate extremes—winter ambient temperatures dropping below -40°C in northern mining sectors and summer temperatures exceeding +50°C in desert processing plants.
Accurate electrical monitoring in these environments requires instrument transformers that maintain strict magnetic linearity without thermal drift. The low-voltage measuring current transformer (CT) serves as the fundamental sensing gateway, translating primary busbar currents into precision telemetry for digital energy meters and programmable logic controllers.
Electromagnetic Working Principle of Current Transformers
Unlike standard power transformers designed to supply voltage to a variable impedance load, a current transformer operates under essentially short-circuited secondary conditions:
- Primary Current Conduction: The primary winding typically consists of the actual power cable or copper busbar passed straight through the central window aperture of the CT (constituting a single primary turn, $N_p = 1$).
- Magnetic Flux Generation: As alternating current ($I_p$) flows through the primary conductor, it induces an alternating magnetic flux in the circular toroidal core of grain-oriented silicon steel.
- Secondary Current Step-Down: A high number of secondary turns ($N_s$) wound uniformly around the core generates an induced secondary current ($I_s$) inversely proportional to the turns ratio: $$I_s = I_p imes rac{N_p}{N_s}$$ For an 800/5A current transformer, $N_s = 160$ turns, stepping 800A down to a manageable 5A for panel instruments.
Comparison of Current Transformer Construction Types
Industrial panel builders select CT architectures based on retrofit convenience, busbar physical dimensions, and seismic stability:
| Construction Architecture | Mechanical Design | Key Advantages | Best Application |
|---|---|---|---|

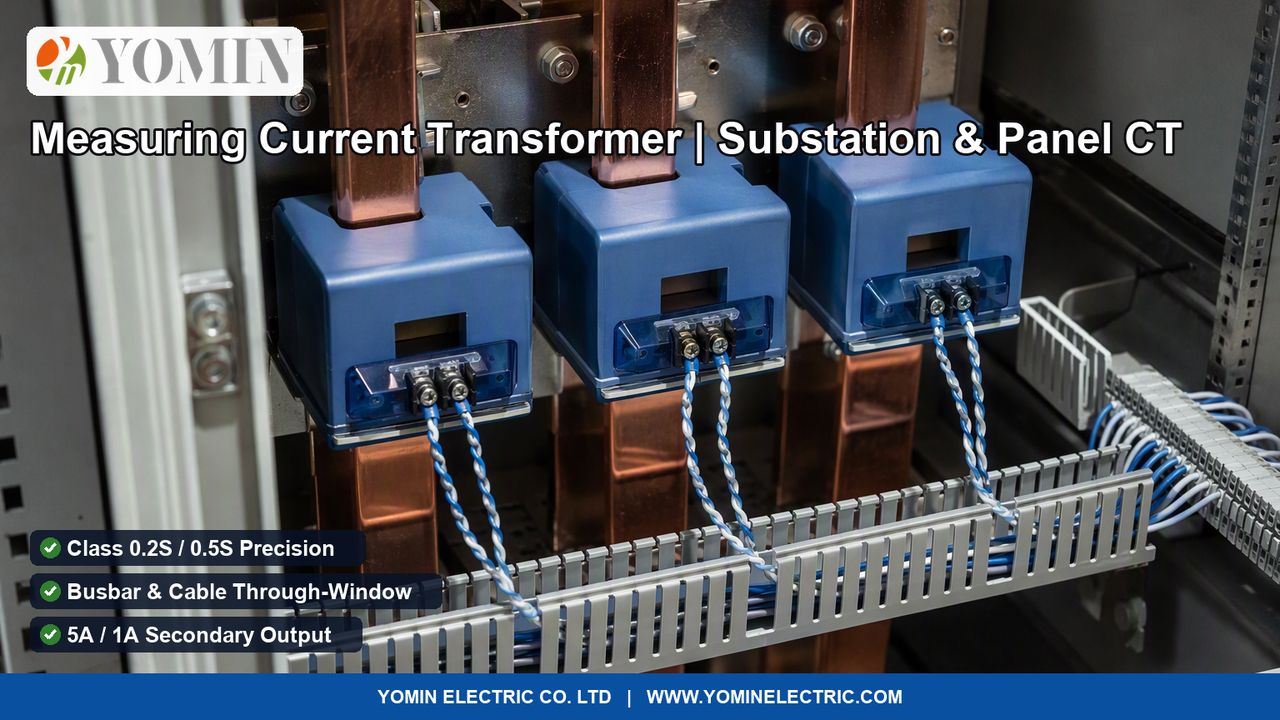

| Window / Busbar Type (MSQ/RCT) | One-piece molded plastic or resin housing with central rectangular/circular aperture. | High mechanical strength, compact footprint, lowest cost, excellent thermal dissipation. | New switchgear assemblies, motor control centers, distribution cubicles. |
| Split-Core Type (DP/KCT) | Two-piece separable magnetic core held together by mechanical clamps. | Zero power interruption: clamps around existing live cables without disconnecting busbars. | Substation retrofits, energy audit logging, temporary power monitoring. |
| Cast-Resin Block Type (LZZBJ) | Solid epoxy resin casting completely encapsulating primary and secondary windings. | Superior moisture resistance, high dielectric strength, high short-time thermal rating ($I_{th}$). | Medium-voltage (6kV–35kV) switchgear, outdoor mining substations. |
Frequently Asked Questions
What is a current transformer and why is it essential in industrial substations?
A current transformer (CT) is an instrument transformer designed to produce an alternating current in its secondary winding proportional to the high AC current flowing in its primary conductor. In heavy industrial substations and distribution switchboards, primary busbars carry hundreds or thousands of amperes at elevated voltages. Direct connection of measuring instruments or protective relays is physically impossible and extremely hazardous. The current transformer steps down the massive primary current to a standardized, safe secondary level (typically 5A or 1A) and provides vital galvanic isolation between high-voltage power circuits and sensitive low-voltage digital meters.
What is the difference between Class 0.5 and Class 0.5S current transformers in grid metering?
Standard Class 0.5 current transformers maintain their certified accuracy (±0.5% ratio error) between 100% and 120% of rated current, but experience widening error margins when loads drop below 20%. In contrast, Class 0.5S ("Special") current transformers are engineered with premium grain-oriented magnetic cores that maintain high permeability down to 1% of rated current. For modern automated metering infrastructure (ASKUE / AMR) in commercial facilities where load fluctuates widely throughout the 24-hour cycle, Class 0.5S CTs prevent unmetered energy loss during light-load operating periods.
Why is an open-circuit secondary condition extremely dangerous in a live current transformer?
Under normal operation, the secondary current produces an opposing demagnetizing flux that counteracts the strong primary magnetomotive force, leaving only a small resultant core flux. If the secondary circuit is accidentally opened while primary current flows, the opposing secondary flux collapses to zero. The entire primary current becomes magnetizing current, driving the magnetic core into extreme saturation. This produces dangerously sharp voltage spikes reaching several thousand volts across the open secondary terminals, presenting a severe risk of fatal electric shock, dielectric breakdown, and catastrophic CT explosion. Shorting terminal blocks must always be used when disconnecting meters.
Specifying Class 0.2S or 0.5S measuring current transformers for substation switchgear, motor control centers, or Central Asian ASKUE power accounting projects?
Tell us your primary busbar dimensions, required transformation ratio (e.g. 200/5A to 5000/5A), accuracy class, and rated burden (VA). YOMIN manufactures precision busbar and split-core CTs tested to IEC 61869 standards.
