The Critical Role of Test Terminal Blocks in Secondary Electrical Metering

In commercial, industrial, and utility power distribution systems, high-voltage and high-current electrical lines cannot be connected directly to electricity revenue meters. Instead, instrument transformers—namely Current Transformers (CTs) and Potential Transformers (PTs / VTs)—step down primary voltages (such as 11kV or 415V) to standardized secondary levels (typically 110V or 100V AC) and primary currents (such as 1000A) to standard 5A or 1A secondary circuits.

Between these instrument transformers and the digital energy meter sits a specialized, mission-critical component: the test terminal block (TTB), also known as a meter test switch or secondary disconnect block. A test terminal block provides a standardized, safe, and tamper-evident interface that allows metering technicians, substation protection engineers, and electrical inspectors to perform in-service testing, calibration, secondary circuit injection, and complete meter replacement without interrupting the customer's primary power supply.

The Physics of Safety: Preventing the Deadly Open-Circuit CT Hazard

The single most important safety function of a test terminal block is preventing an open-circuit condition on the secondary winding of an energized current transformer. In normal operation, primary current ($I_p$) produces a magnetizing force that is almost completely cancelled by the counter-magnetizing force generated by secondary current ($I_s$) flowing through the low-impedance burden of the meter ($N_p I_p pprox N_s I_s$).

If an energized CT secondary circuit is disconnected without short-circuiting:

• The secondary opposing ampere-turns immediately drop to zero ($N_s I_s = 0$).
• The entire primary current acts as an intense magnetizing force, driving the magnetic core into extreme magnetic saturation within milliseconds.
• The resulting rapid rate of change of flux ($d\Phi/dt$) induces peak voltage spikes of several thousand volts across the open secondary terminals.
• This extreme overvoltage destroys CT winding insulation, causes explosive breakdown of terminal boards, and creates a lethal electrical shock and arc-flash hazard for personnel.

YOMIN test terminal blocks integrate heavy-duty, low-resistance copper shorting links. Before disconnecting any meter terminal, the technician shifts the shorting link into the bridging position, establishing an internal, low-impedance short-circuit across the CT secondary ($S_1$ and $S_2$). The meter can then be safely unbolted and serviced with zero risk of CT overvoltage.

3-Phase 4-Wire Circuit Topology and Test Socket Layout

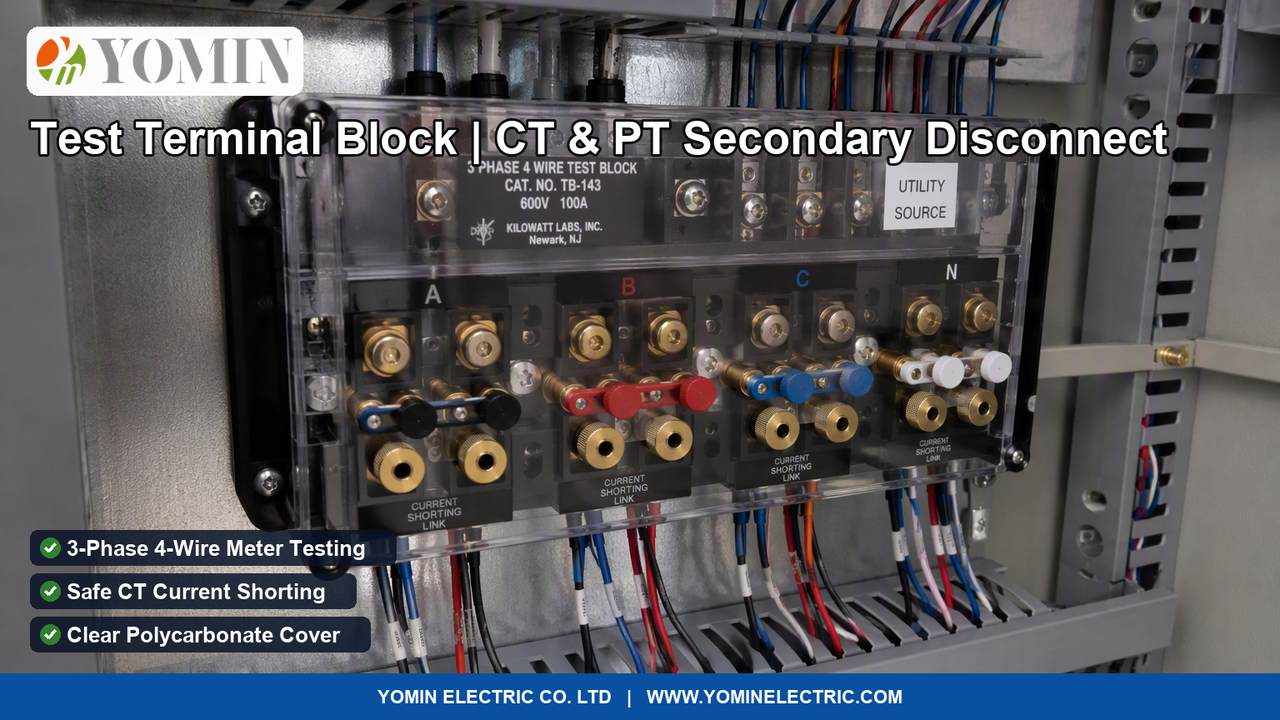

A standard 3-phase 4-wire test terminal block accommodates ten separate electrical circuits: three current phases ($I_A, I_B, I_C$), three voltage phases ($V_A, V_B, V_C$), and a combined neutral path ($N$). YOMIN FJD-series test blocks incorporate a clear color-coded architecture:

Tamper-Evident Revenue Protection and Utility Compliance

Because test terminal blocks have direct control over metering signals, commercial revenue protection is paramount. If an unauthorized party were able to access the block, simply sliding the CT shorting links closed would divert current around the revenue meter, causing the meter to register zero consumption while the facility draws full power.

To eliminate revenue theft, YOMIN test terminal blocks are equipped with a heavy-gauge, flame-retardant polycarbonate transparent cover. The cover features precision-moulded sealing lugs that align with captive sealing screws on the mounting base. Utility revenue inspectors pass high-security wire seals or twist-tite meter seals through these lugs. Any attempt to access the links leaves physical evidence of seal destruction, ensuring complete auditability and peace of mind for utility grid operators.
