Three-Phase Voltage Stabilizer Guide: Industrial Servo AVR Sizing

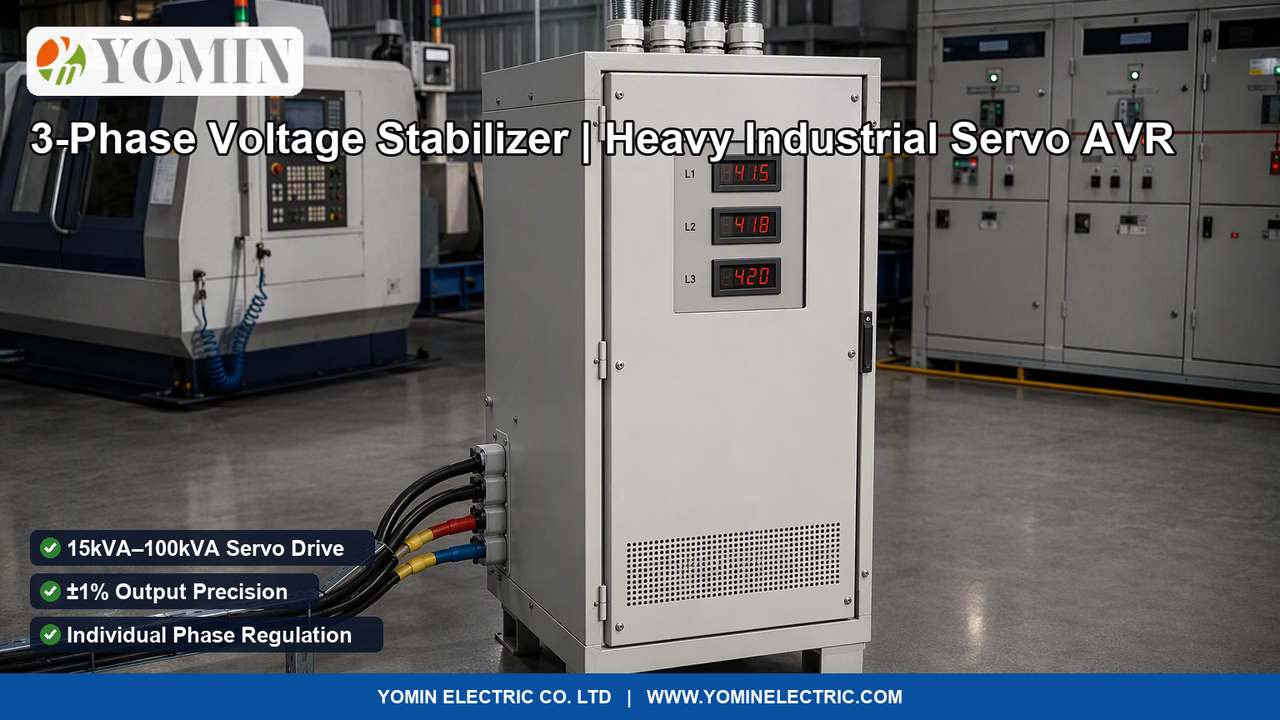

The Critical Role of Industrial Three-Phase Voltage Stabilization

In modern manufacturing, automated production lines rely on high-precision CNC machining centers, automated robotics, sensitive programmable logic controllers (PLCs), variable frequency drives (VFDs), and heavy industrial chiller units. However, utility power grids in expanding industrial zones frequently experience severe voltage fluctuations—ranging from deep brownouts caused by neighboring heavy arc furnaces to dangerous over-voltage surges during off-peak night hours.

When line voltage drops below 90% of nominal rating, industrial AC electric motors draw excessive current to maintain mechanical shaft torque, causing winding temperatures to rise exponentially ($P_{loss} = I^2 R$) and tripping thermal overload relays. Conversely, chronic over-voltage saturates transformer magnetic cores, breaks down power semiconductor gate insulation in inverters, and causes costly unrecoverable downtime. An industrial three-phase automatic voltage stabilizer (also known as a three-phase AVR) dynamically corrects incoming grid variations, delivering a continuous, ripple-free, balanced three-phase 380V, 400V, or 415V supply.

Architecture of the Servo-Motor Driven Automatic Voltage Regulator (AVR)

Industrial three-phase voltage stabilizers utilize a closed-loop electromechanical servo architecture comprising three core components per phase:

1. Toroidal Variable Autotransformer (Regulating Coil): Precision-wound with high-conductivity oxygen-free electrolytic copper wire on a high-permeability grain-oriented silicon steel toroidal core. The upper track of the coil is diamond-polished to create a flat, low-resistance commutator contact surface.
2. Buck-Boost Series Compensation Transformer: For units above 30kVA, regulating the entire load current directly across carbon brushes would create excessive heat. Instead, the servo-driven autotransformer supplies only an auxiliary low-current primary signal to a buck-boost transformer whose secondary winding is connected directly in series with the main load, smoothly adding (boosting) or subtracting (bucking) corrective voltage vectors.
3. Microprocessor Control Board & High-Torque Servo Motor: High-speed sampling circuits monitor true RMS phase-to-neutral and phase-to-phase voltages. When voltage deviates beyond the preset tolerance band (±1%), the CPU signals the reversible DC/AC servo motor, which drives the carbon roller brush assembly along the commutator track via a low-backlash reduction gear.

Individual Phase Regulation vs. Coupled Three-Phase Regulation

A critical engineering decision when procuring three-phase stabilizers is selecting between coupled (three-phase linked) control and independent individual phase regulation:

Electrical Engineering Calculations: Sizing kVA Capacity for Mixed Plant Loads

Undersizing an automatic voltage stabilizer results in nuisance bypass switching, carbon brush arcing, and thermal shutdown during factory startup hours. To ensure long service life, electrical consulting engineers size kVA capacity using the following formula:

$$S_{ ext{stabilizer (kVA)}} = rac{P_{ ext{running (kW)}}}{ ext{Power Factor}} imes K_{ ext{safety}} + S_{ ext{motor\_inrush (kVA)}}$$

Where:

• $K_{ ext{safety}}$ Margin: 1.25 to 1.30 (accounts for future load expansion and continuous thermal dissipation at high ambient temperatures).
• Direct-On-Line (DOL) Motors: If an unassisted squirrel-cage induction motor starts across the line, its locked-rotor current ($I_{LRA}$) reaches 6 times full-load current ($I_{FLA}$). The stabilizer’s short-time overload capability (typically 150% for 30 seconds) must absorb this surge without output voltage collapsing below 90%.
• Star-Delta or VFD Starters: For soft-started machinery, the inrush multiplier drops to 1.5x, significantly reducing the required frame size of the voltage stabilizer.
