Toroidal Transformer Guide: When the Ring Core Is Worth It
A toroidal transformer is a transformer wound on a ring-shaped core instead of the familiar rectangular stack of laminated steel. The ring is the whole design decision, and it changes three things at once: the magnetic field the transformer throws out, the noise it makes, and how compact it can be for a given rating. For most power distribution work none of that matters and a laminated transformer is the cheaper answer. For isolation supplies, audio, instrumentation and medical equipment it often decides whether the product passes.
Why the ring core behaves differently
In a conventional laminated (EI) transformer the core is built from stacked plates with an air gap at the joints, and the windings sit in bobbins on the outside of the core legs. In a toroidal transformer the core is a continuous wound strip of grain-oriented steel, and the windings are wound directly through and around that ring. Two consequences follow from the geometry:
- The magnetic circuit has no joints. There is no gap for flux to jump, so the core works more efficiently and the stray magnetic field is far smaller. The field is largely contained inside the ring rather than spilling sideways.
- The windings are distributed around the whole core. The magnetic forces on the copper are spread evenly instead of being concentrated at the bobbin ends, so the core does not physically buzz against its own windings.
Practically, that means lower radiated hum and lower electrical noise on the secondary. In an audio amplifier or a sensitive measurement front end, that difference is audible and measurable. In a machine-tool control panel it usually is not.
Toroidal versus laminated: the honest comparison
| Consideration | Toroidal | Laminated (EI) |
|---|---|---|
| Stray magnetic field | Low — field largely confined to the ring | Higher — spills from the core joints |
| Mechanical hum | Low | Higher |
| Size and weight for a given VA | Smaller, lighter | Larger, heavier |
| Inrush current | Higher — the low-loss core saturates fast on switch-on | Lower |
| Cost for a given VA | Higher | Lower |
| Mounting | Centre bolt through the ring, or a potted enclosure | Foot brackets or a frame |
| Custom windings | Easy to wind to order in small quantities | Needs a bobbin for the size |
Two of those rows catch people out. The first is inrush: because a toroidal core is efficient, it can draw a large current spike for the first cycles after switch-on. If the transformer is fed from a breaker or a solid-state relay on the primary, size that protective device with the inrush in mind, not just the steady-state VA. The second is mounting: a toroid cannot simply be bolted to a backplate at its corners. It is normally held by a single centre bolt through the ring, clamped between metal plates, which is exactly how the units in our range are built.
Where a toroidal transformer earns its cost
- Isolation supplies. Where a circuit must be galvanically separated from the mains for safety or for noise reasons, and where a stray field would couple into nearby signal wiring.
- Audio and instrumentation. Low hum and low radiated field directly improve the noise floor, which is why this is the classic application.
- Medical and laboratory equipment. Compact, low-leakage construction where the enclosure is small and the surrounding electronics are sensitive.
- Control and signal supplies inside tight enclosures. Where there is simply not the depth for a laminated stack plus its bobbin.
What to specify
An order for a toroidal transformer is defined by a short list. Give the factory all of it and there is nothing left to interpret:
| Parameter | What to state |
|---|---|
| Rated power | The VA you need, not the VA of the transformer you found first. Add up the actual secondary loads, including start-up peaks. |
| Primary voltage | Nominal mains voltage and frequency at the installation site. |
| Secondary voltage and current | Every secondary winding, with its own voltage and current. Multiple secondaries are normal on a toroid. |
| Regulation | How much the output may droop from no-load to full load. A small toroid with thin wire can drop noticeably. |
| Insulation and class | The insulation system and temperature class required by the enclosure and the applicable standard. |
| Termination | Flying leads, screw terminals, or a terminal block; lead length and colour coding. |
| Mounting | Centre-bolt with mounting plates, or a potted/resin-filled enclosure. |
| Compliance | Which standard the unit must be marked to, and whether a declaration is needed with the shipment. |
Reading the nameplate

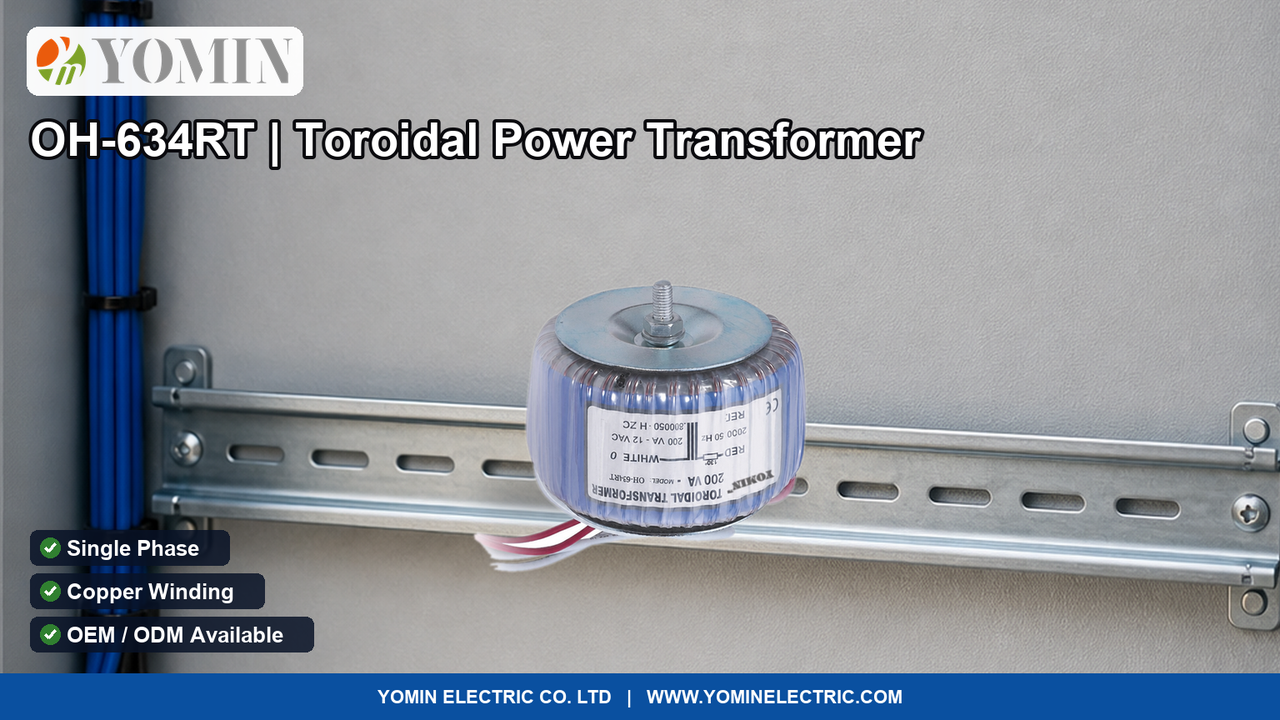

A toroidal transformer nameplate normally carries the brand, the model code, the VA rating, the primary voltage and frequency, and the secondary voltage, with each lead identified by colour. On the single-phase unit shown in this guide, for example, the nameplate identifies the primary side and the secondary side separately and carries a CE mark. If a quotation arrives without a nameplate drawing showing those fields, ask for one before ordering — the lead colours and the thermal cut-out arrangement are what the installer will actually work from.
Frequently asked questions
Is a toroidal transformer better than a laminated one?
Not universally. It is better on stray field, hum, and size for a given rating, and worse on cost and on inrush current. It is the right choice when low noise or low radiated field matters, and the wrong choice when the only requirement is the cheapest way to change a voltage.
Can a toroidal transformer be used as an isolation transformer?
Yes. A transformer with separate primary and secondary windings provides galvanic isolation whatever the core shape. The toroidal construction simply adds the benefit of a smaller stray field, which is why isolation supplies for sensitive equipment are usually toroidal.
Why does my toroidal transformer trip the breaker on switch-on?
Because the core is efficient, the first half-cycles after switch-on can draw a large inrush. If the primary protection is a fast magnetic breaker sized only for the steady-state current, it may trip. Use a slower curve, a higher rating, or a soft-start arrangement, and check the inrush figure with the manufacturer.
Can a toroidal transformer be wound to a custom voltage?
Yes, and it is easier than for a laminated transformer because no new bobbin is needed. Custom VA, custom primary and secondary voltages, and multiple secondaries are all normal OEM work rather than a special order.
If you are specifying one, send us the required VA, the primary voltage and frequency, every secondary voltage and current, the mounting you have space for, and the standard the unit must be marked to. We will confirm the winding rather than the nearest catalogue item.
