Utility Revenue Protection & Smart Prepayment: What Is a Prepaid Energy Meter?
The Global Imperative for Utility Revenue Protection
For municipal power utilities and private distribution concessionaires across emerging economies, commercial viability is continuously threatened by non-technical losses (electricity theft) and chronic billing payment defaults. In conventional postpaid utility frameworks, power is delivered first and billed 30 to 60 days later. Utilities face crippling overhead costs employing armies of meter readers, printing paper bills, and resolving customer billing disputes, often writing off millions of dollars in uncollectible debt.
The STS Prepaid Energy Meter re-engineers utility cash flow, converting receivables into upfront liquidity while empowering consumers to monitor and manage their own daily electricity usage in real time.
How the 20-Digit STS Cryptographic Token Operates
The Standard Transfer Specification (IEC 62055) governs the automated vending and decryption lifecycle:
- Vending Station Token Generation: The consumer purchases electricity at a vendor terminal or mobile app. The vending system takes the purchase value (e.g. 200 kWh), the unique 11-digit Meter ID, and a sequential Token Identifier (TID), encrypting them with a secure Vending Key into a standardized 20-digit numeric token.
- Keypad Decryption & Validation: The consumer types the 20 digits on the meter keypad. The meter internal processor decrypts the token using its stored secret device key. If the decryption verifies that the token was minted specifically for this meter and has not been used previously, the purchased kWh is added to the active credit register.
- Credit Depletion & Automatic Disconnection: As the consumer draws power, the active credit decreases. When credit drops below a pre-programmed threshold (e.g. 10 kWh), an audible buzzer sounds and an LED warns the tenant to recharge. If credit reaches zero, the microcomputer fires a pulse to an internal heavy-duty magnetic latching relay, physically opening the contact points and disconnecting the load until a new token is input.
Integrated Keypad vs. Split Prepayment Meter Architecture
| System Architecture | Hardware Layout | Anti-Tamper Security Level | Installation Environment |
|---|---|---|---|

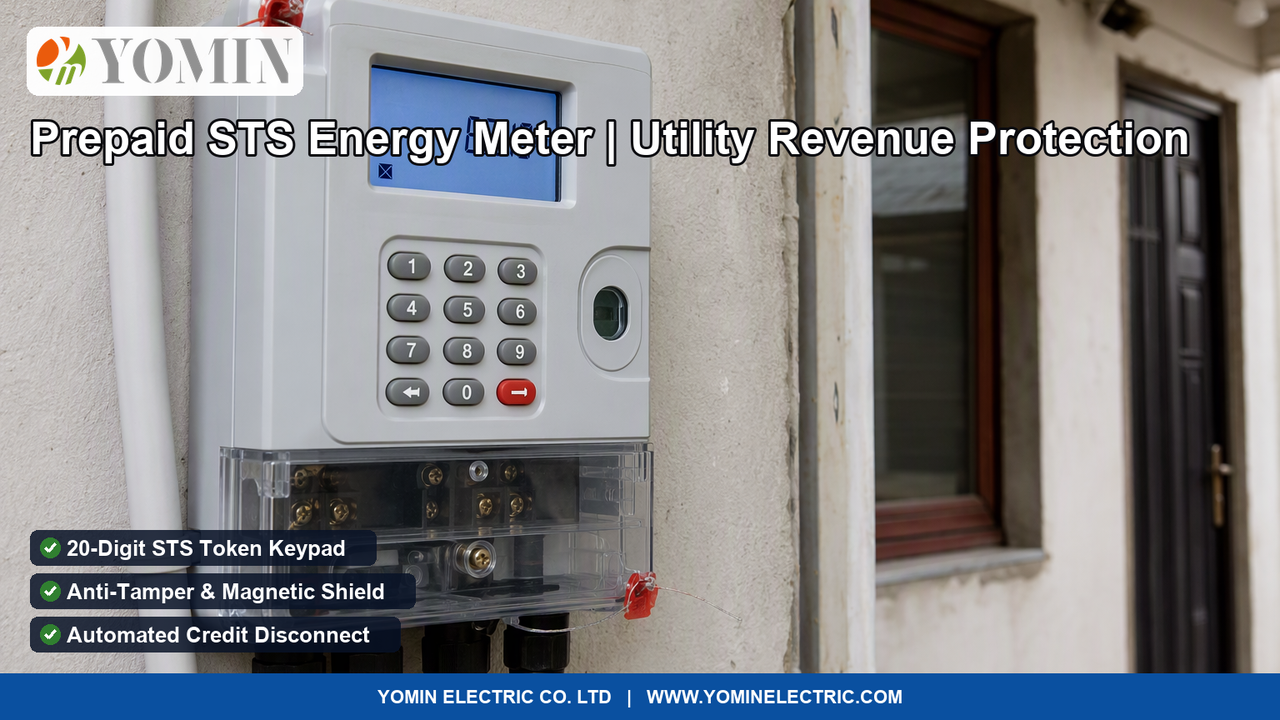

| Integrated Keypad Meter | Keypad, LCD display, MCU, and latching relay housed in one wall-mounted unit. | Standard: protected by terminal seal wire and optical case-open sensors. | Secure residential apartments, managed estates, commercial shopping stalls. |
| Split Prepayment Meter (MCU + CIU) | Measuring Unit (MCU) locked in outdoor pole cabinet; Customer Interface Unit (CIU) placed inside home. | Maximum: consumer has zero physical access to measurement shunt or disconnect relay. | Utility residential electrification, high-theft urban zones, rural village grids. |
Frequently Asked Questions
What is a prepaid energy meter and how does it protect utility revenue?
A prepaid energy meter (commonly termed a prepayment electricity meter or STS meter) is an intelligent electricity meter that requires consumers to pay for electrical energy in advance before power is consumed. The consumer purchases an encrypted 20-digit numerical token from a vending station, bank, or mobile payment application, and inputs the code into the meter keypad. The meter credits the purchased kilowatt-hours to its internal balance register. As appliances run, the meter decrements the balance. If the credit reaches zero without replenishment, an internal motorized magnetic latching relay automatically disconnects the power supply, completely eliminating utility unpaid bad debt, manual meter-reading billing costs, and customer payment defaults.
What is the Standard Transfer Specification (STS) and how does token encryption work?
The Standard Transfer Specification (STS) is the globally recognized international open standard (IEC 62055) for secure transfer of prepayment tokens between utility vending systems and smart electricity meters. When a customer purchases electricity, the utility vending server generates a 20-digit numerical token using advanced 112-bit Triple-DES or 128-bit AES cryptographic algorithms, keyed to the unique factory serial number of that specific meter. This ensures that a token generated for one meter cannot be entered into any other meter. The algorithm also embeds a unique Tariff ID and Token Identifier (TID) to prevent replay tampering or re-use of old voucher codes.
What is a split-type prepayment meter and why do utilities prefer it over integrated keypad meters?
In an integrated prepaid meter, the keypad, display, and disconnect relay are all housed in a single enclosure mounted inside the customer residence, where dishonest consumers can attempt physical tampering or wire bypasses. In a split-type prepayment meter architecture, the robust Metering and Control Unit (MCU) containing the measuring shunt and disconnect contactor is locked away high on a utility pole or inside a tamper-proof street cabinet outside the property. The customer is provided only with a lightweight Customer Interface Unit (CIU) placed inside their kitchen or hallway. The CIU communicates with the pole-mounted MCU via Power Line Carrier (PLC) or wireless Radio Frequency (RF), rendering physical tampering virtually impossible.
