Voltage Protectors: How Adjustable Over/Under Cut-off Protects Appliances and Panels

Surge devices clamp spikes that last microseconds. Stabilizers correct a supply that is permanently off-nominal. A voltage protector does a third job: it watches the supply continuously and disconnects the load when the voltage stays outside limits you set — then reconnects it when the supply behaves again. That is the difference between surviving a lightning strike and surviving a bad feeder.

The failure modes a protector catches

Sustained over-voltage cooks motor windings and compressor valves slowly — the damage shows up weeks later as premature failure. Sustained under-voltage is worse for motors: current rises to hold torque, windings overheat, and the motor dies under load. A protector sees both as steady-state conditions and opens the circuit before thermal damage accumulates.

Adjustable thresholds are the product

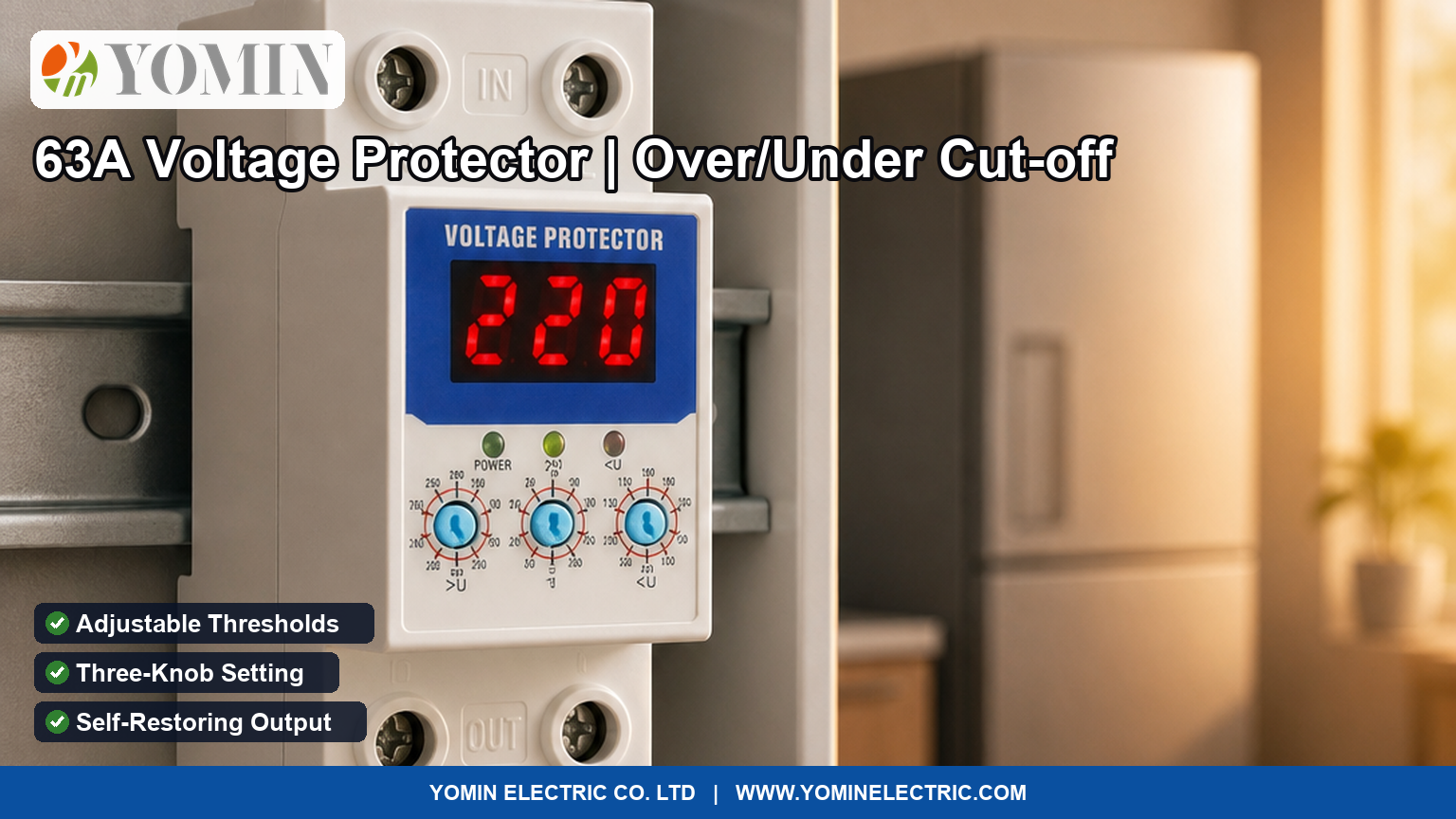

On our single-phase 63A protectors the front panel carries three adjustments — over-voltage trip, under-voltage trip and restart delay — each with a printed scale, plus an LED or LCD readout of the live voltage. Adjustable matters because the right limits differ by load: a refrigerator wants a wide band and a long delay; a sensitive electronic load wants a tighter band and a fast trip. Fixed-threshold devices force one compromise on every installation.

The delay is not a nuisance — it is the protection

After a trip, the protector waits before re-energizing. That delay protects compressors from restarting against equalized pressure, and it prevents rapid on-off cycling when a feeder is hunting around the threshold. Our dual-display self-restoring units (VAP2P style) show both the live voltage and the set limits, so the installer can verify the band without a meter.

Protector vs SPD vs stabilizer — where each belongs

• SPD: clamps transient surges (lightning, switching). Always installed; never substitutes for cut-off.
• Voltage protector: disconnects on sustained over/under voltage, self-restores after a delay.
• Stabilizer / AVR: continuously regulates an out-of-tolerance supply for equipment that must keep running.

A complete installation often uses all three: SPD at the entrance, protector at the load, stabilizer only where the supply is chronically bad and the load cannot tolerate interruption.

Ratings and mounting

Our protectors are single-phase, 63A-rated, DIN-rail mounted, with PC housings and copper-based electronics; WiFi-enabled variants add remote monitoring and switching for rental and unattended sites. DC versions cover battery and solar-side protection where over/under-voltage cut-off protects the storage rather than the load.

Selection checklist

• Load current within the device rating (63A class covers most residential and light-commercial feeds)
• Adjustable over and under thresholds with visible scales or digital setting
• Restart delay suited to the load (long for compressors, short for electronics)
• Display type: LED indicators or numeric LCD for commissioning evidence
• Self-restoring behaviour confirmed for unattended installations
• DIN-rail format matching the distribution board

Frequently asked questions

Will a protector stop a lightning surge?

No. Surges are microseconds long; a protector's trip is far too slow and is not designed for that energy. That is the SPD's job, installed upstream.

Can I set the band tighter than the appliance tolerates?

You can, and then you get nuisance tripping. Set the band from the appliance's nameplate voltage range, then add margin for normal feeder variation.
