Wall-Mounted Voltage Stabilizer Guide: Home AVR Sizing & Duty
Why Wall-Mounted Voltage Stabilizers Are Essential for Modern Homes
In developing power grids across Africa, South Asia, Latin America, and the Middle East, electric utility distribution networks suffer from chronic voltage volatility. Peak-hour demand routinely drops residential voltages down to 140V or even 95V (brownouts), while sudden industrial load shedding spikes line voltages above 270V. These extreme voltage swings destroy expensive domestic appliances—most notably inverter air conditioners, refrigerators, deep freezers, and television circuitry.

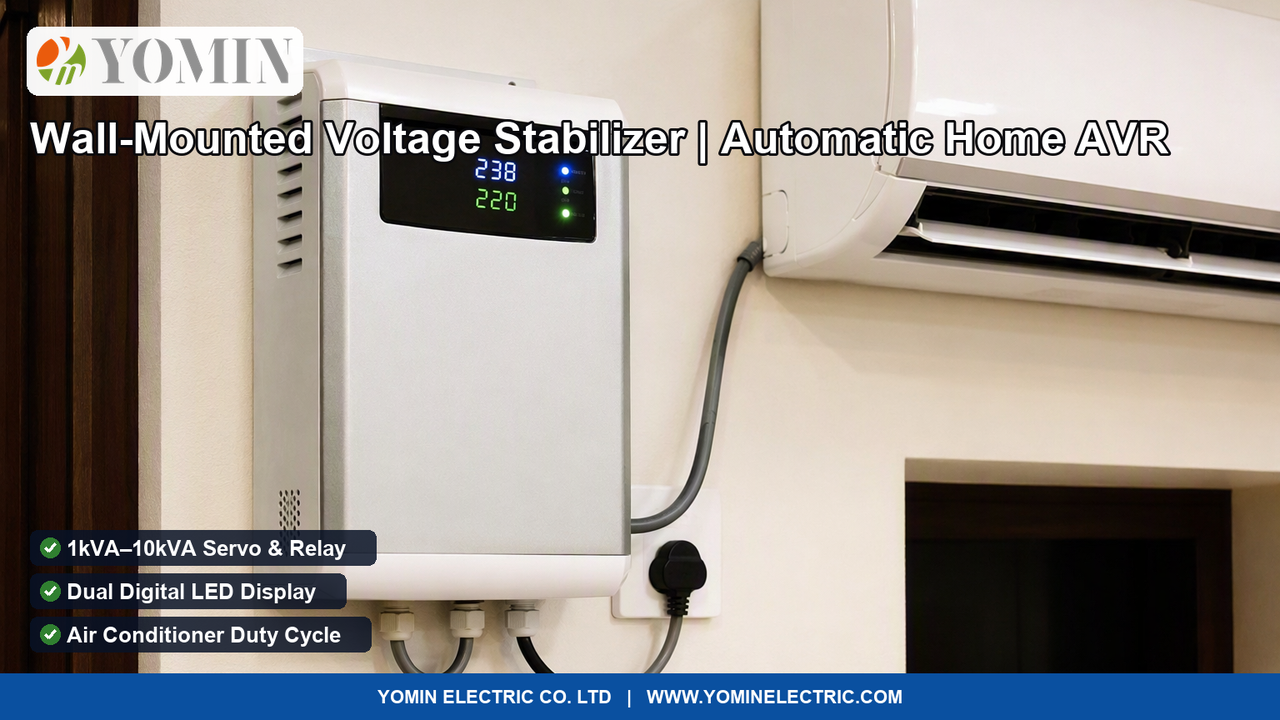

Traditional floor-standing voltage regulators occupy valuable room space, accumulate dust, and create messy floor cable hazards. The wall-mounted automatic voltage stabilizer (wall AVR) re-engineers voltage protection into a slim, wall-hanging vertical enclosure. Bolted securely at eye level beside air conditioning units or near consumer main distribution panels, it delivers high-performance voltage stabilization while keeping living spaces and commercial offices tidy and safe.
Thermal Architecture & Vertical Airflow Cooling Design
Because wall-mounted stabilizers operate continuously inside residential living rooms, bedrooms, and small commercial shops, thermal management and acoustic performance are critical engineering priorities:
- Natural Convection Chimney Effect: The vertical steel chassis incorporates perforated ventilation louver grilles along the bottom and top edges. Hot air generated by the internal toroidal transformer naturally rises, exiting through the top vents while drawing cool ambient air from the bottom. This passive chimney effect allows units up to 5kVA to operate silently without noisy cooling fans, ensuring quiet sleep in residential bedrooms.
- Intelligent Thermostatic Fan Boost: On high-capacity 8kVA and 10kVA wall units handling full-house loads, an internal microcomputer temperature sensor activates a low-noise ball-bearing brushless DC cooling fan only when internal heatsink temperatures exceed 65°C, ensuring robust cooling during extreme 45°C ambient summer heatwaves.
- Anti-Vibration Wall-Mounting Bracket: Heavy-gauge galvanized mounting brackets with rubber isolation grommets isolate 50Hz/60Hz transformer magnetic hum from transferring into wall plaster or concrete, eliminating acoustic wall resonance.
Dual Digital LED Interface & Microcomputer Protection Suite
A premier wall-mounted stabilizer serves as an intelligent power quality monitor for homeowners:
| Integrated Protection Feature | Technical Trigger Threshold | Operational Appliance Protection Benefit |
|---|---|---|
| Extreme Over-Voltage Cutoff | Line Output > 250V ± 4V AC | Instantly disconnects load, preventing catastrophic dielectric burnout of electronics. |
| Deep Under-Voltage Cutoff | Line Output < 180V ± 4V AC | Prevents motor locked-rotor overheating and burning out compressor windings. |
| 180-Second Compressor Delay | Selectable 3s (TV/Lighting) or 180s (HVAC) | Allows refrigerant gas pressure equalization before compressor restarts, avoiding motor stall. |
| Overload & Short-Circuit Trip | Bimetallic Miniature Circuit Breaker (MCB) | Protects internal toroidal copper winding and building wiring against dead shorts. |
| Over-Temperature Thermal Sensor | Transformer Core Thermistor > 110°C | Auto-shutdown before coil enamel insulation degrades, automatically self-resetting after cooling. |
Frequently Asked Questions
Why are wall-mounted voltage stabilizers specifically recommended for air conditioners and refrigerators?
Air conditioner compressors and commercial refrigerators are exceptionally vulnerable to low voltage (brownouts). When utility voltage sags below 180V, an AC compressor motor draws massive locked-rotor current trying to start, causing thermal overload and burning out windings. A wall-mounted automatic voltage stabilizer mounts directly beside the air conditioner on the wall, saving valuable floor space in living rooms and bedrooms while providing immediate voltage correction. Furthermore, its integrated 180-second time-delay protection prevents destructive back-pressure restarts when power flickers on and off rapidly during grid storms.
How do you correctly size a wall-mounted voltage stabilizer for a 1.5-ton or 2.0-ton air conditioner?
Air conditioners contain electric induction motor compressors that draw starting inrush currents 3 to 5 times higher than their continuous running wattage. A 1.5-ton split air conditioner typically consumes approximately 1,800 Watts (1.8 kW) during steady operation. Factoring in compressor starting surge and power factor (PF ≈ 0.8), a 1.5-ton unit requires minimum a 3kVA or 5kVA stabilizer. For a 2.0-ton air conditioner (running wattage ~2,500W), an 8kVA or 10kVA stabilizer is required to ensure the regulator does not trip or suffer relay contact welding during hot summer compressor start-ups under severe low-voltage conditions.
What is the difference between a wall-mounted servo stabilizer and a wall-mounted relay stabilizer?
A relay-type wall stabilizer utilizes microcomputer-driven electromagnetic relays to switch between fixed transformer coil taps. It reacts ultra-fast (under 10 milliseconds) and handles extreme brownouts down to 95V, but regulates voltage in small steps (±8% precision). A servo-motor wall stabilizer utilizes a motorized carbon brush rotating across a toroidal copper autotransformer coil. It delivers smooth, continuous voltage regulation with high precision (±3%), zero waveform distortion, and seamless tracking, making it ideal for luxury residential properties and sensitive medical/audio equipment, whereas relay units excel on rugged home appliances.
