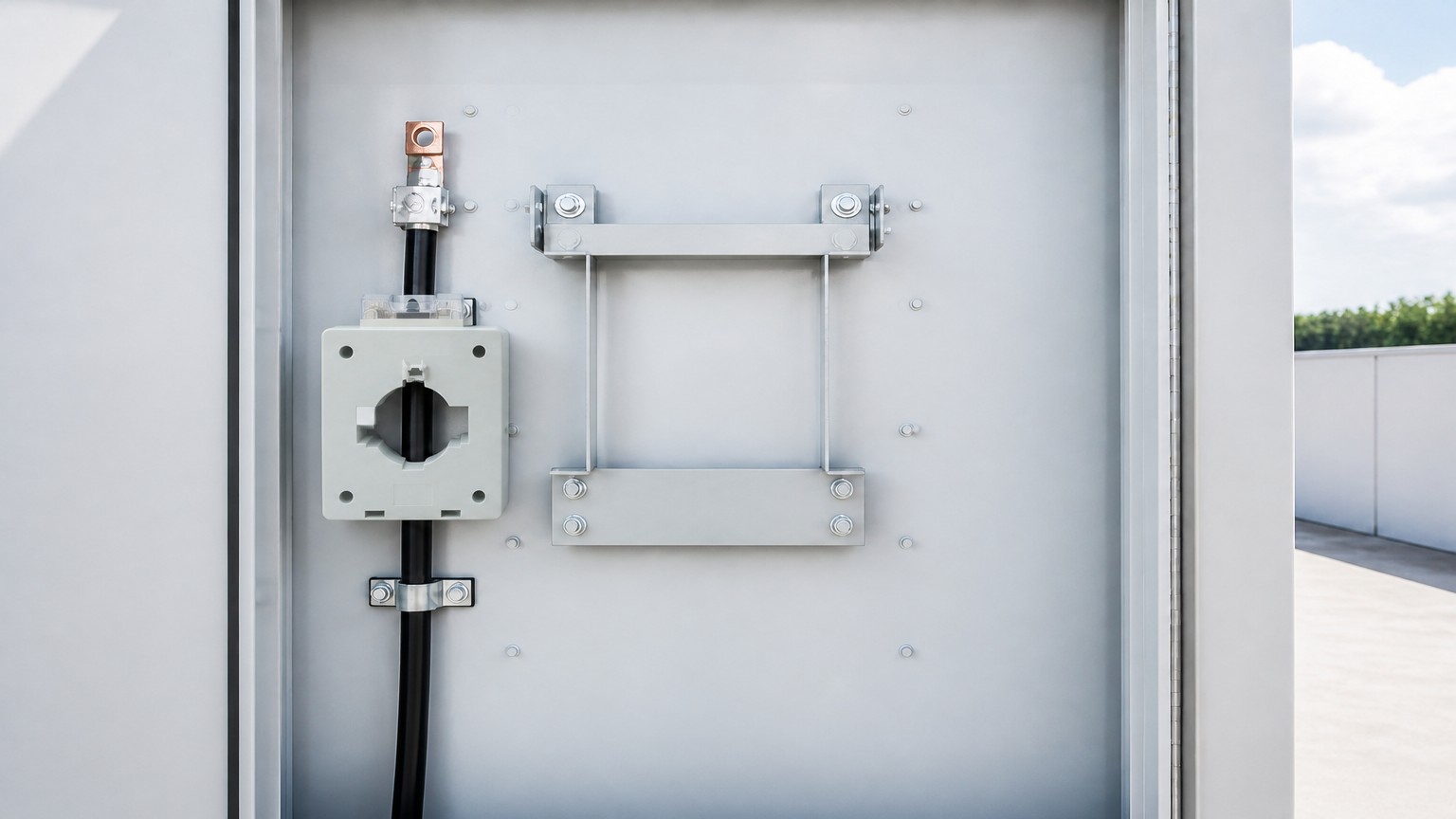

What Is a Current Transformer Meter
A current transformer meter is an energy metering setup that uses a current transformer (CT) to measure electricity in high-current circuits. Instead of passing the full supply current through the meter, the CT steps it down to a safe, standard value — typically 5 A or 1 A — that the meter can read accurately. This makes CT metering the standard approach for industrial, commercial, and utility installations.
How a current transformer meter works
The CT is clamped around or wired into the main conductor. It produces a secondary current proportional to the primary current, and the meter multiplies this by the CT ratio to display the real energy consumption in kWh. For example, a 400/5 A CT with a meter reading 2.5 A secondary means the primary current is 200 A.
CT ratio: the key number
The ratio (e.g., 100/5, 400/5, 1000/5) must match the expected load. Choose a primary rating at about 60-80% of the maximum load for best metering accuracy — too high loses low-load accuracy, too low risks saturation.
Accuracy classes
| Class | Use |
|---|---|
| 0.5 / 0.5S | Utility and high-accuracy billing |
| 1.0 | General commercial metering |
| 5P10 / 10P10 | Protection relays |
Solid-core, split-core, or Rogowski?
- Solid-core CT — highest accuracy; must be installed with the conductor disconnected.
- Split-core CT — clamps around a live cable without disconnection; ideal for retrofits.
- Rogowski coil — flexible, non-saturating, for large or irregular conductors and wide measurement ranges.
Where CT meters are used
- Main incoming feeders in commercial and industrial switchboards.
- Submetering of tenants, floors, or departments.
- Solar and EV infrastructure monitoring.
- Utility metering and power distribution.
Safety rules
The secondary of a current transformer must never be opened while primary current flows — it can generate dangerous voltages. Terminals must be shorted before disconnection and the CT grounded as specified.
FAQ
When do I need a CT meter instead of a direct meter?
When the load exceeds about 100 A, or when the busbar/cable is too large for direct connection.
Can I add a CT to an existing meter?
Only if the meter is designed for CT operation — direct-connect meters cannot use CTs.
Is a Rogowski coil a current transformer?
It is a related sensing technology with no iron core: linear, non-saturating, and flexible, but its output needs an integrator.
Final Thoughts
A current transformer meter lets you measure high-power circuits accurately and safely. Yomin Electric supplies split-core and solid-core current transformers plus CT-operated energy meters for complete, reliable metering systems.
