What Is a Fuse Cutout? Working Principle, Types and Pole Mounting

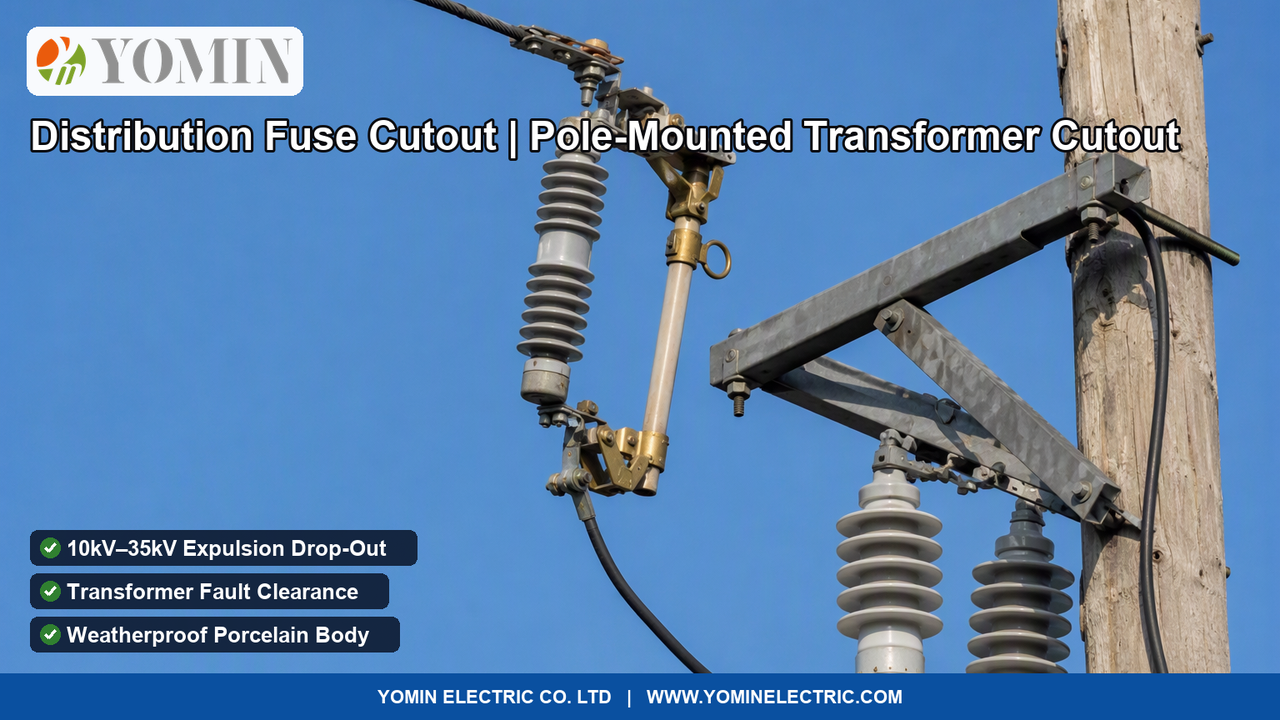

The Indispensable Role of Fuse Cutouts on Utility Distribution Poles
Across global electric utility networks, medium-voltage distribution feeders operating at 11kV, 15kV, 24kV, and 33kV deliver power across thousands of kilometers of overhead power lines. Mounted high on wooden, concrete, or steel utility crossarms, distribution transformers step this medium voltage down to 230V/400V for residential homes and commercial buildings.
However, overhead lines are exposed to severe hazards: lightning strikes, falling tree branches, animal contacts, and internal transformer winding failures. Without localized protection, a single short-circuit on a rural transformer would trip the entire substation circuit breaker, plunging thousands of customers into a blackout. The expulsion drop-out fuse cutout (commonly called a fuse cutout or cutout switch) provides localized, cost-effective overcurrent protection and manual sectionalizing for every pole-mounted transformer on the grid.
Mechanical Architecture & The Physics of Expulsion Arc Quenching
A high-voltage fuse cutout combines electrical insulation, mechanical latching, and pneumatic arc extinction into an elegant standalone design:
- Insulator Body (Porcelain or Polymer): A heavy-duty glazed electrical porcelain or silicone rubber composite insulator provides rigid mechanical support and electrical isolation between the energized line conductors and the grounded steel crossarm bracket, rated to withstand up to 170 kV Basic Impulse Level (BIL).
- Spring-Loaded Contact Assembly: Silver-plated phosphor bronze top contacts with stainless steel backup springs maintain high clamping pressure against the upper contact ferrule of the fuse holder, preventing contact pitting under continuous 100A or 200A full-load currents.
- The Expulsion Fuse Tube: The heart of the cutout is the removable fuse holder tube. The outer casing is wound from high-strength filament epoxy fiberglass to withstand massive bursting pressures generated during short-circuit faults (up to 16 kA symmetrical). The inner bore is lined with vulcanized organic bone fiber that decomposes under the heat of the electric arc, generating supersonic deionizing gas jets that blast the arc out of the tube bottom at current zero.
Why the "Drop-Out" Action Is Essential for Grid Reliability
Unlike indoor sealed fuses that blow invisibly inside an enclosure, the outdoor expulsion cutout features an automatic mechanical gravity drop-out mechanism:
| Operational Phase | Mechanical State of Cutout Switch | Electrical Grid Safety Benefit |
|---|---|---|
| Normal Operation | Fuse link wire is intact; holds lower hinge toggle latch in rigid tension. Fuse tube locked upright. | Continuous circuit connection; low contact resistance and stable current transfer. |
| Fault Inception | Overcurrent melts internal fuse link; arc is extinguished inside tube within 1 to 2 cycles. | Isolates transformer fault before upstream substation circuit breaker trips. |
| Mechanical Release | Loss of link wire tension allows lower toggle hinge to collapse under spring pressure. | Releases upper contact latch; tube drops downward under its own weight. |
| Drop-Out Final State | Fuse tube hangs downward suspended from lower trunnion hinge. | Visible physical air gap: guarantees circuit isolation and immediate visual identification by linemen. |
Dual Functionality: Automatic Protection and Manual Loadbreak Switching
Beyond automatic fault protection, the fuse cutout serves as an essential manual sectionalizing disconnect switch. Using an insulated fiberglass operating hotstick, a utility lineman inserts the hotstick hook into the pull-ring of the upper fuse tube ferrule from the ground. By using a portable loadbreak tool (such as a Loadbuster), the lineman can manually open the cutout under full 100A or 200A load current, breaking the circuit without external arcing, enabling safe transformer de-energization for routine maintenance.
Frequently Asked Questions
What is a fuse cutout and where is it installed in electrical distribution systems?
A fuse cutout (commonly referred to as an expulsion drop-out fuse or cutout switch) is an outdoor high-voltage electrical protective device installed on overhead utility poles and distribution line crossarms. Its primary function is to protect overhead distribution transformers, capacitor banks, and branch feeder lines from catastrophic overcurrent faults and short circuits. It acts as both an automatic protective fuse and a manual isolation switch: utility linemen can open and close the fuse tube manually from the ground using an insulated fiberglass hotstick to isolate the transformer for maintenance.
How does an expulsion drop-out fuse cutout extinguish high-voltage electric arcs?
When an overcurrent fault occurs, the internal silver/copper fuse link melts, generating an intense high-temperature electric arc. The arc burns against the inner lining of the fuse holder tube, which is constructed from a special vulcanized fiber (bone fiber). The extreme heat vaporizes the organic lining material, producing a violent blast of deionizing and cooling gases (principally water vapor, hydrogen, and carbon dioxide). The gas blast builds high internal pressure inside the tube and expels violently out the open bottom end, elongating and cooling the arc until the electrical current passes through its natural alternating current (AC) zero-crossing, successfully extinguishing the arc within cycles.
Why does a fuse cutout drop open (drop-out action) after clearing a fault?
The fuse holder tube is held in its closed, spring-tensioned upright position by the physical mechanical integrity of the intact fuse link wire. The lower hinge assembly incorporates an over-center toggle latch mechanism under tension from an ejector spring. The instant the fuse link melts under fault current, the mechanical tension holding the toggle latch is released. The lower hinge collapses, and gravity pulls the heavy fuse tube downward, causing it to swing open into a hanging vertical position. This drop-out action serves two critical engineering purposes: it creates a wide, visible physical air-gap isolation distance preventing voltage restrikes across the blown fuse, and provides immediate visual confirmation to utility line crews from hundreds of meters away that the fuse has blown.
