What Is a Surge Protective Device (SPD)? Types, Working and Selection
The Anatomy of an Electrical Voltage Surge: Microseconds to Destruction
In alternating current (AC) and direct current (DC) power networks, equipment is engineered to operate within strict steady-state voltage tolerances (typically ±10%). However, electrical distribution systems are constantly bombarded by transient overvoltages—intense, high-frequency voltage spikes lasting from a few microseconds (μs) to milliseconds:
- External Lightning Transients: A lightning strike directly hitting a building or striking nearby power lines injects immense electromagnetic energy, generating voltage surges exceeding 10,000 V and current waves reaching 100 kA.
- Internal Switching Transients (80% of all surges): Routine industrial events—such as the startup of heavy chillers, elevator motors, capacitor bank switching, and arc welders—induce inductive kickback spikes that continuously degrade computer power supplies and electronic relay boards.
The Surge Protective Device (SPD) provides the indispensable defense mechanism against these transients, preventing catastrophic equipment destruction, fire, and catastrophic operational downtime.
How an SPD Operates: The Physics of Metal Oxide Varistors (MOVs)

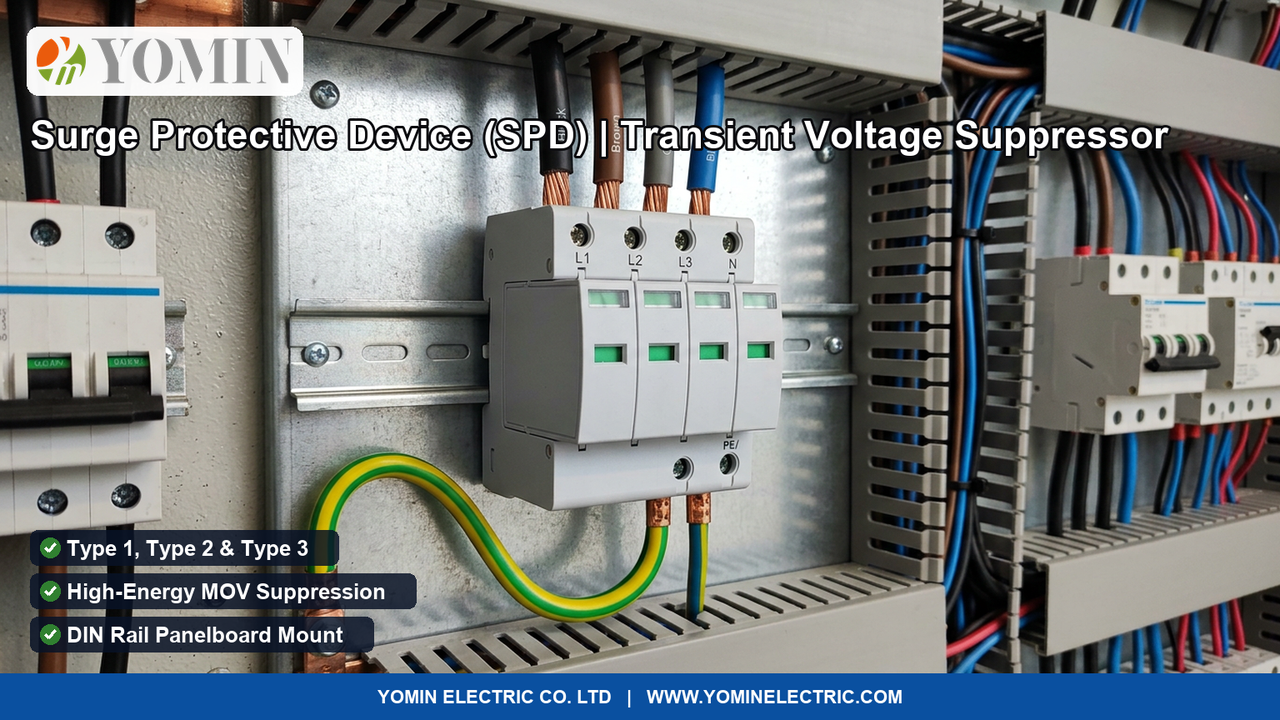

An SPD is wired in parallel with the protected electrical circuit (connected between Phase and Neutral, Phase and Earth, or Neutral and Earth). Its operation relies on non-linear semiconductor physics:
- Normal Steady State: At nominal operating voltage (e.g. 230V AC), the Metal Oxide Varistor (a sintered ceramic disc of zinc oxide grains with metal oxides) exhibits mega-ohms of electrical resistance. It acts as an open circuit, drawing only negligible micro-amperes of standby leakage current.
- Surge Conduction Threshold: When a transient overvoltage exceeds the varistor's continuous operating voltage (Uc), the semiconductor grain boundaries instantly break down. Within less than 25 nanoseconds, the MOV transitions into a low-impedance conductor, clamping the voltage spike and shunting thousands of amperes of surge current safely into the grounding busbar.
- Thermal Disconnection & Safety: As MOVs absorb surge energy over time, thermal degradation occurs. YOMIN modular SPDs incorporate an internal spring-loaded mechanical thermal disconnector with low-temperature solder. If an MOV overheats from end-of-life breakdown, the thermal solder melts, popping the mechanical flag from Green (Normal) to Red (Defective) and isolating the cartridge to prevent panelboard fire.
Classification: Type 1, Type 2, and Type 3 Surge Protective Devices
International standard IEC 61643-11 defines three distinct classes of surge protection deployed in a coordinated cascading cascade:
| Surge Arrester Class | Standard Test Waveform | Primary Substation / Panel Installation Location | Primary Transient Source Protected |
|---|---|---|---|
| Type 1 (Class I) | 10/350 μs (Simulates direct lightning stroke). | Main incoming service entrance panel (MDB) where external lightning rods exist. | Direct lightning strikes and high-energy utility transmission line surges. |
| Type 2 (Class II) | 8/20 μs (Simulates indirect lightning & switching). | Sub-distribution boards (SDBs), branch floor panels, machine tool panels. | Induced lightning surges, grid switching transients, inductive motor kickback. |
| Type 3 (Class III) | 1.2/50 μs voltage & 8/20 μs current. | Installed locally within 5 meters of critical electronic equipment or sockets. | Residual low-level voltage spikes entering computers, PLCs, and medical monitors. |
Frequently Asked Questions
What is a Surge Protective Device (SPD) and how does it protect electrical circuits?
A Surge Protective Device (SPD), historically termed a lightning arrester or transient voltage surge suppressor (TVSS), is an electrical safety component designed to limit transient overvoltages and divert destructive surge currents away from equipment. Transients are caused by direct lightning strikes, utility grid switching, or large inductive motor startups, generating voltage spikes reaching thousands of volts in microseconds. An SPD is connected in parallel with the power circuit. Under normal voltage, it maintains extremely high electrical resistance (open circuit). The moment a high-voltage surge hits, the internal non-linear components (MOVs) instantly transition into a low-resistance conductor within nanoseconds, shunting the surge energy safely into the grounding system while clamping residual voltage (Up) below equipment withstand limits.
What is the difference between Type 1, Type 2, and Type 3 surge protective devices?
Type 1 SPDs are tested with the heavy 10/350 μs waveform representing direct lightning strikes; they are installed at the main service entrance (main distribution board) of buildings equipped with external lightning protection rods. Type 2 SPDs are tested with the 8/20 μs waveform representing indirect lightning and utility switching transients; they are installed in sub-distribution boards and branch panels to protect downstream equipment. Type 3 SPDs provide fine-point protection with low discharge capacity and very low clamping voltage (Up < 1.0 kV), installed directly adjacent to sensitive consumer endpoints such as computers, servers, and laboratory instruments.
Why do solar photovoltaic (PV) systems require dedicated DC surge protective devices?
Solar PV panels are installed in open outdoor environments (rooftops and solar farms), acting as large metallic antennas highly vulnerable to atmospheric lightning discharges. Crucially, solar arrays generate high-voltage direct current (600V, 1000V, or 1500V DC). Standard AC surge arresters cannot extinguish DC electric arcs because DC current has no natural zero-crossing point. A dedicated solar DC SPD features specialized thermal disconnectors, arc extinguishing chutes, and non-linear MOVs certified to IEC 61643-31 to safely clamp lightning transients on solar string circuits without catching fire or shorting out the solar array.
