WiFi Energy Meter Guide: Connectivity, Specs and Where They Pay Off

A WiFi energy meter is an electricity meter with a radio inside it. The measurement part does what every meter does - it samples voltage and current and accumulates kWh. What the radio adds is the ability to hand that data to someone without anyone walking to the panel to read a display. For a landlord splitting bills across tenants, or a plant manager watching a feeder, that single change is usually the whole point.

What a WiFi energy meter actually does

Two jobs run in parallel. The metering front end measures voltage and current per phase and accumulates energy; the specifications that govern its accuracy are the same ones that govern any Class 1 or Class 0.5S meter. The communications side then packages those registers and publishes them over WiFi - typically to a local app on the same network, to a cloud dashboard, or to both.

Because the two jobs are independent, a WiFi meter is not automatically more or less accurate than a plain meter. Buy the metering class you need first, and treat connectivity as the second decision. It is common to see buyers pick a cheap connected meter with poor accuracy when what they actually needed was a Class 1 meter that happens to report over WiFi.

The specifications that decide whether it fits

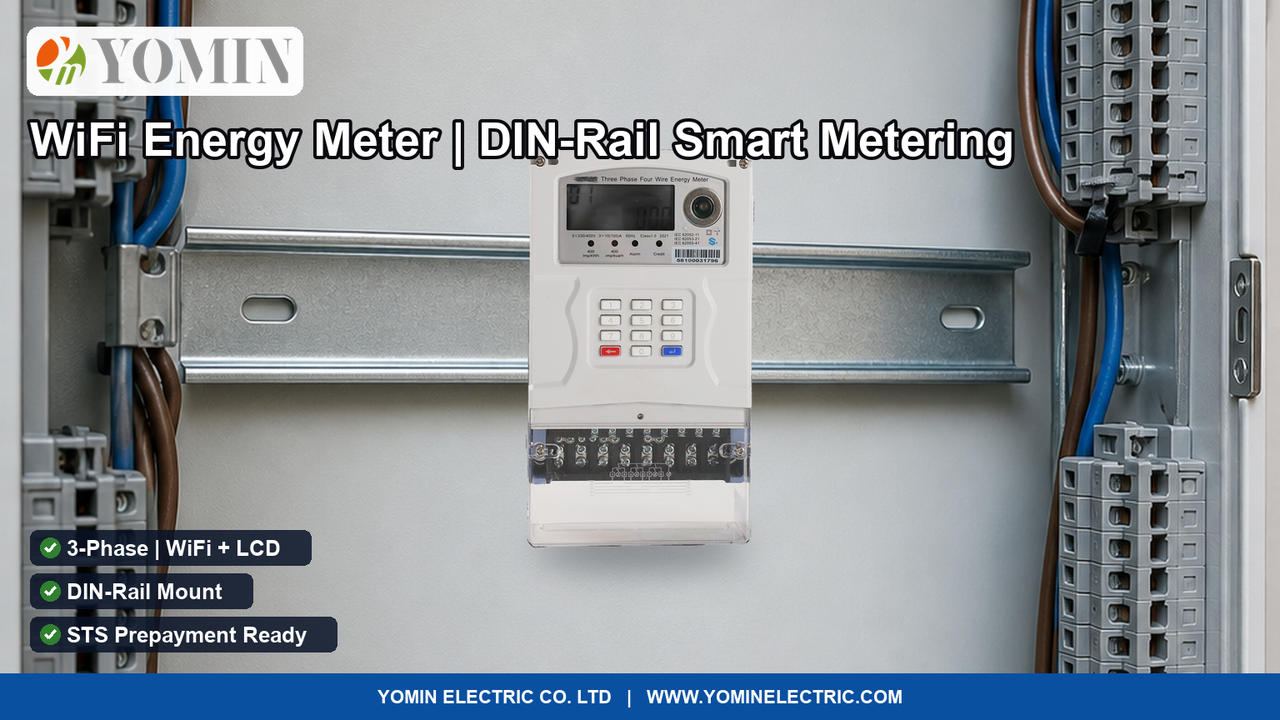

The meter in our range that this guide is built around is a three-phase DIN-rail unit with an integrated LCD and keypad. The ratings below are taken from the nameplate:

The current rating is the one buyers misread most often. A 10(100) A meter is direct-connected: the load current passes through the meter terminals, so nothing sits between the load and the measurement. Above that - typically 100 A and up - you move to a transformer-operated meter fed by current transformers, and the accuracy question shifts to the CT's class and burden.

WiFi vs GPRS vs RS485 vs LoRa

Connectivity is where most of the confusion lives, because four technologies are sold as if they were interchangeable.

• WiFi - the cheapest route when there is already a network on site: a home, shop, office or small plant. No subscription, no SIM, immediate local access. Its weak point is coverage and provisioning: a meter deep inside a metal enclosure in a plant may not hold a link.
• GPRS / 4G - for sites with no network at all: remote pump stations, containers, agricultural sites. Costs a SIM and a data plan, but works anywhere with cellular coverage.
• RS485 with Modbus - the industrial default. Wired, deterministic, easy to integrate into a BMS or SCADA system. It needs cabling and a master, which is exactly what WiFi avoids.
• LoRa / NB-IoT - long range at low data rates, used where meters are scattered over a wide site and battery life matters.

A practical rule: if the meter has a stable WiFi network within reach, use it. If the site is remote or the panel is a Faraday cage, use 4G or RS485 and stop trying to make WiFi work.

Where connected metering earns its cost

• Tenant submetering - each unit reads itself, so the landlord stops walking the building monthly.
• Solar self-consumption - seeing import versus export per circuit is the only way to size a battery sensibly.
• SME energy management - catching a feeder that runs at 3 a.m. or a compressor degrading slowly.
• Prepaid and credit metering - STS-based units let a consumer top up without an operator.

Planning the network before you order

The meter is the easy part; the network is where projects stall. Confirm before purchase: that the site has a 2.4 GHz network where the meter will sit (many meters do not support 5 GHz); that the network can hold the number of extra clients you are adding; who owns the SSID and password, and what happens when they change; whether data leaves the site to a cloud service or stays local; and what integration exists - a documented Modbus TCP register map or a local API is worth far more than a pretty app, because it is what lets the data reach your own system.

Selection checklist

Frequently asked questions

What is a WiFi energy meter used for?

Measuring electricity consumption and delivering the readings over a WiFi network instead of a manual display read - typically for tenant submetering, solar self-consumption monitoring, small-business energy management and prepaid metering.

Is a WiFi energy meter as accurate as a normal meter?

Accuracy comes from the metering class, not the radio. A Class 1.0 WiFi meter has the same accuracy obligation as a Class 1.0 meter without connectivity. Connectivity changes how data leaves the meter, not how it is measured.

Does a WiFi energy meter need the internet?

No. Many models will serve data to a local app on the same network without any internet connection. Internet access is only required if you want remote dashboards or cloud storage.

Can a WiFi energy meter replace a current transformer setup?

Only up to its direct-connected current rating. The three-phase unit described here is rated 3×10(100) A, so it connects directly up to 100 A per phase. Above that you still need current transformers and a transformer-operated meter.

If you are specifying one for a project, send us the phase configuration, maximum load current, whether the site has a 2.4 GHz network, and how the data needs to be consumed. We will confirm the correct model rather than the closest one on the shelf.
