Power System Monitoring Single-Phase Bus-bar 10/5A Class 0.5 Current Transformer Current Transformer

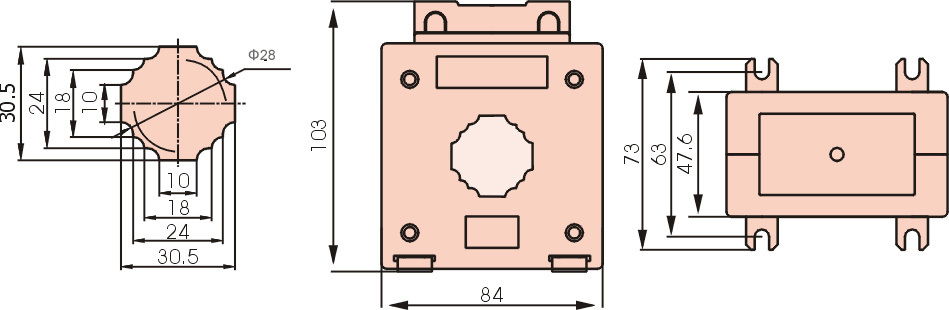

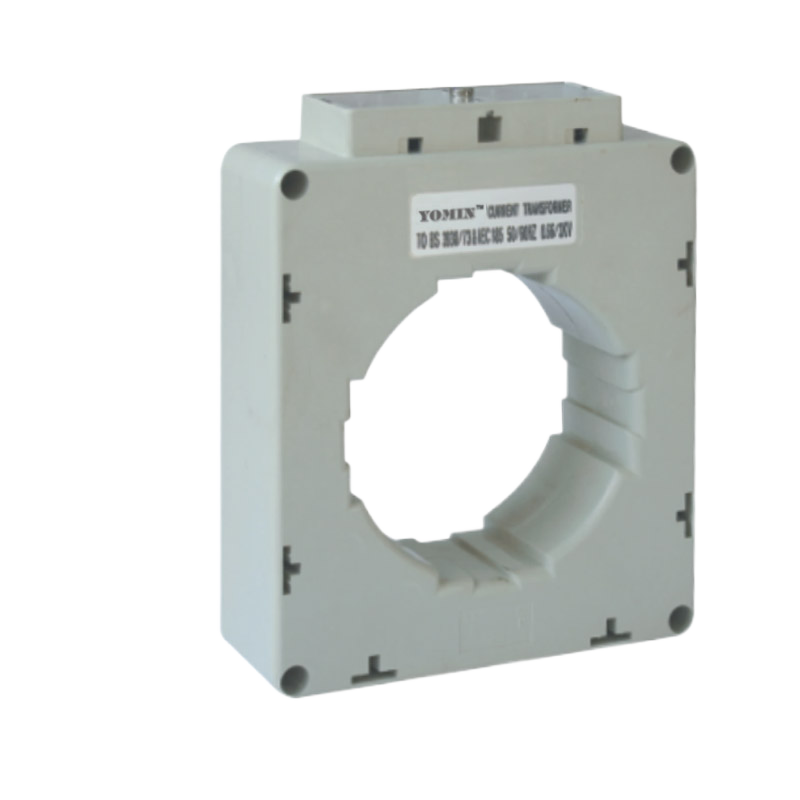

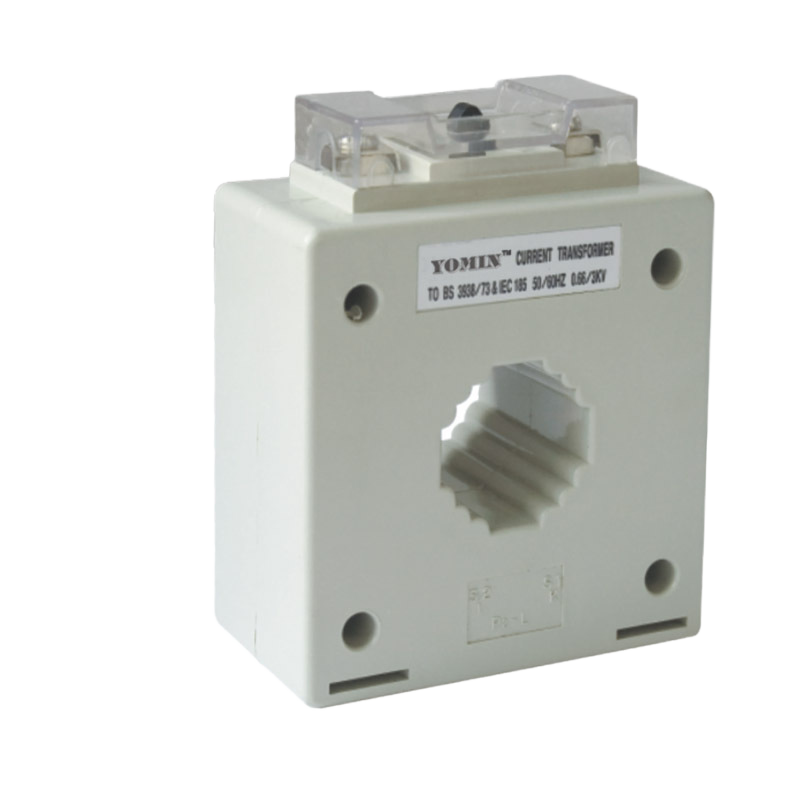

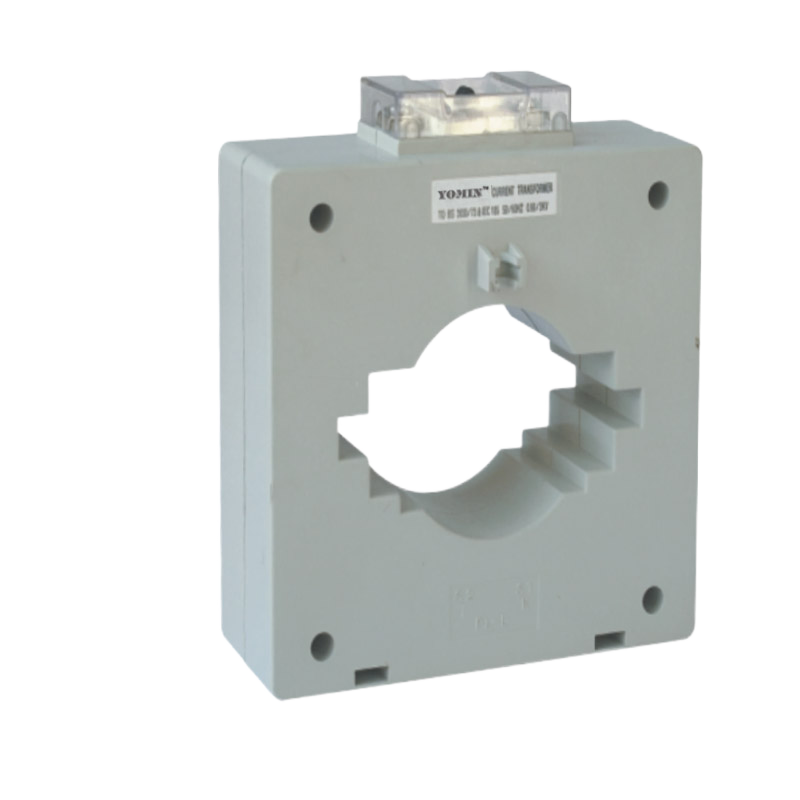

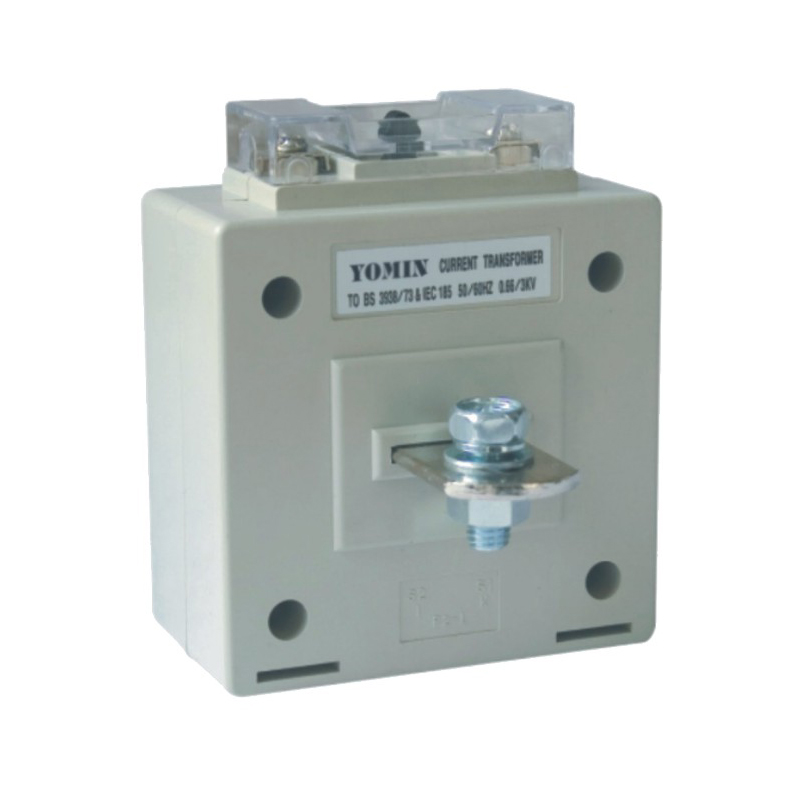

Item Current Ratio Rated Burden (VA) Case Qty. Model (A) Class: 0.5 Class: 1.0 (Pcs) MSQ-30B 5/5 5 7.5 36 MSQ-30B 10/5 5 7.5 36 MSQ-30B 15/5 5 7.5 36 MSQ-30B 20/5 5 7.5 36 MSQ-30B 25/5 5 7.5 36 MSQ-30B 30/5 5 7.5 36 MSQ-30B 50/5 5 7.5 36 MSQ-30B 60/5 5 7.5 36 MSQ-30B 100/5 5 7.5 36 MSQ-30B 150/5 5 7.5 36 MSQ-30B 200/5 5 7.5 36 MSQ-30B 250/5 5 7.5 36 MSQ-30B 300/5 5 7.5 36 10/5A Class 0.5 Current Transformer Model: MSQ-30B-10/5-CL0.5 Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They're connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments. Low voltage current transformers are manufactured as of two types for measuring CT. * Measuring CT: Measuring current transformers are constructed to feed on other low voltage apparatus such as measuring instruments, relays, watt-hour meter (KW meter) and these type of current transformers are mainly used 0.5 and 1.0 class to transfer the current from highest rated current to rated secondary current. * Protection CT: Protection current transformers are constructed to feed the protection relay. These type of current transformers are mainly used 5P. (Customer supplied when required.) Selection of the Current Transformer To select the current transformer correctly, the following points should be clarified: * -The application (for measuring or protection). * -The features of the working environment (Indoor or outdoor, operating temperature, air humidity etc….). * -Operation voltage and frequency. * -Range of the primary current (maximum and minimum of the current to be measured). * -Dimension of the cable or Bus bar. * -Data of the overload. * -Short circuit current. * -Specification of the measuring device associated with the current transformer (Accuracy, rated current, consumption etc…). * -The diameter and length of the cable, the cable which is used to connect the current transformer and associated measuring device. Power Losses of the CT In the practical application, the power generated by the primary current should be equal or bigger than the power requirement of the associated measuring device plus the consumption of the connecting line. Losses in the line, PL: This is the power loss, through heat, generated by current through the resistance RL in the cable, in the transformer’s secondary circuit. Factors to be taken into account: Secondary current: PL = RL / 2 Cable diameter: RL is inversely proportional to the square of the diameter cable length: RL is proportional to the length of cabling (there and back). Power: The nominal apparent power (VA) with a specified power factor, which was supplied by the Current Transformer, to the secondary current with the assigned current when it is connected to its nominal load. Sc (VA) = Zc (/sn)2 According to Standards, for apparent power greater than or equal to 5VA, the power factor is 0.8 inductive. For apparent power less than 5VA the power factor is considered to be one (unity). Accuracy of A Current Transformer The percentage of error, produced in a transformer, is established by IEC60044-1. In measurement transformer: 25% and 100% of nominal power. In protection transformers: 100% of nominal power. Note: with…/1A transformers losses are reduced 25 times. Saturated Condition of CT The current transformer is saturated if the primary current, passing through the CT, is greater than the nominal rating of the CT. The linearity of CT, between the primary and secondary sides decreases, so error increases. The saturation of the CT is inversely proportional to the load (FIG. 1). The difference between measuring and protection current transformers is their behavior when an overload occurs on the primary side. Measuring CT is saturated when there is a primary current overload. In order to protect the equipment. On the secondary side, protection CT will not saturated until there is a very high current on the primary side, A class 5P15 protection transformer indicates that it has an accuracy rating of ±1% that it does not become saturated until the primary current reaches 15 times the nominal current rating of the CT. In measuring transformers, the SAFETY FACTOR “FS” parameter indicates the excessive amperage on the primary side current in relation to the current sent to the measuring device on the secondary side Application Note If the primary current is too small, to keep the same accuracy and output, we can add primary winding, but the rated turns ration should be the same, For example, if the primary current is 50A, we can use 100/5A current transformer with the primary current be turned twice which help to keep the same rated turns ratio (1:50 = 2:100). Construction CT consist of primary winding, secondary winding, magnetic core and insulated body. The high-grade silicon steel core is annealed, varnished then insulated with polycarbonate core caps. The secondary winding is toroidally wound by high precision semi-automatic machinery. For the tape wound ring type current transformer, the PEW coated windings are then covered with elephantite paper, varnished and double-tapped with PVS tapes. For the encapsulated type current transformer, the windings are enclosed in a compact and heat resistant split cap. * Current Ratio..................................................................................10/5A * Accuracy.........................................................................................Class 0.5 * Burden.............................................................................................See Selection Form. * Security Factor................................................................................FS<5 * Max System Voltage.......................................................................720V AC * Test Voltage.....................................................................................3kV AC. (1 min.) * Frequency........................................................................................50/60Hz * Rated Short-time Thermal Current (Ith)........................................Ith = 60 X In * Rated Dynamic Current (Idyn).......................................................Idyn = 2.5 X Ith * Continuous Overload.....................................................................1.2 X In * Working Temperature....................................................................-25°C ~ +50°C * insulation Rating.............................................................................Class B * Housing Self-extinguishing Class.................................................VO * Panel Mounting................................................................................Provided * Hinged Sealable Terminal Cover....................................................Provided * Standards.........................................................................................IEC/EN60044-1, VDE0414-44-1, BS3938, BS7626 Note: Class and VA rating must be mentioned when ordering. Yueqing Yomin Electric Co., Ltd (Before called Yueqing Yomin Electric Factory, found in 1996) is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success! 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian Why Work With Us? 23+ Years of Export Experience Full Certification Support (CE, ROHS, etc.) Fast Sampling & Mass Production Reliable Quality Control System Provide OEM/ODM Service
