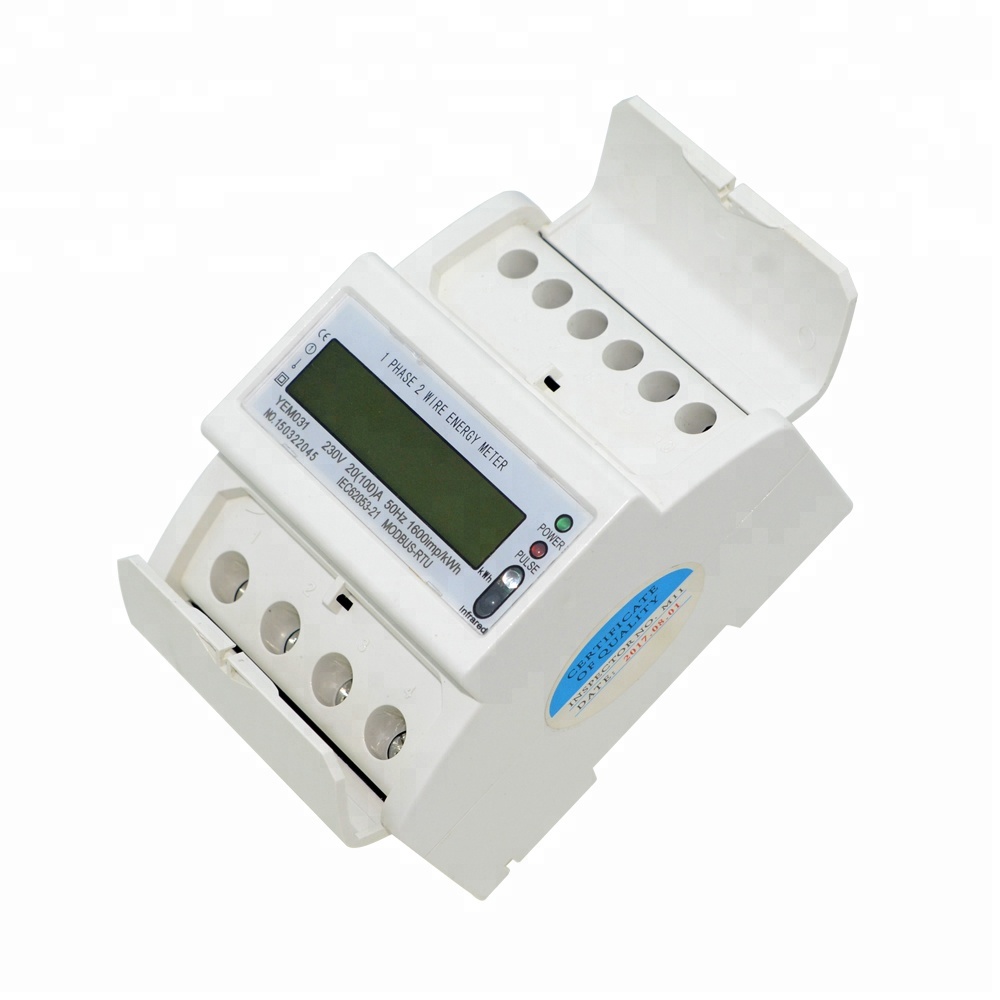

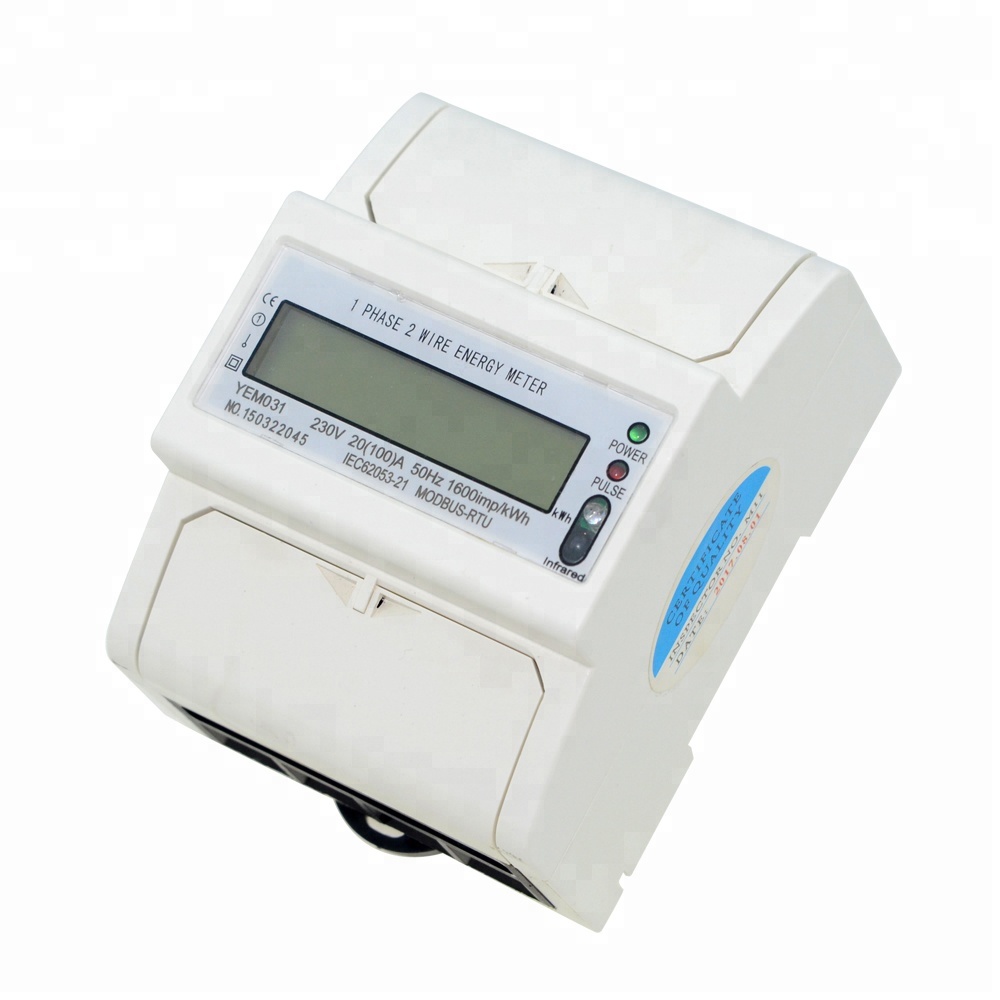

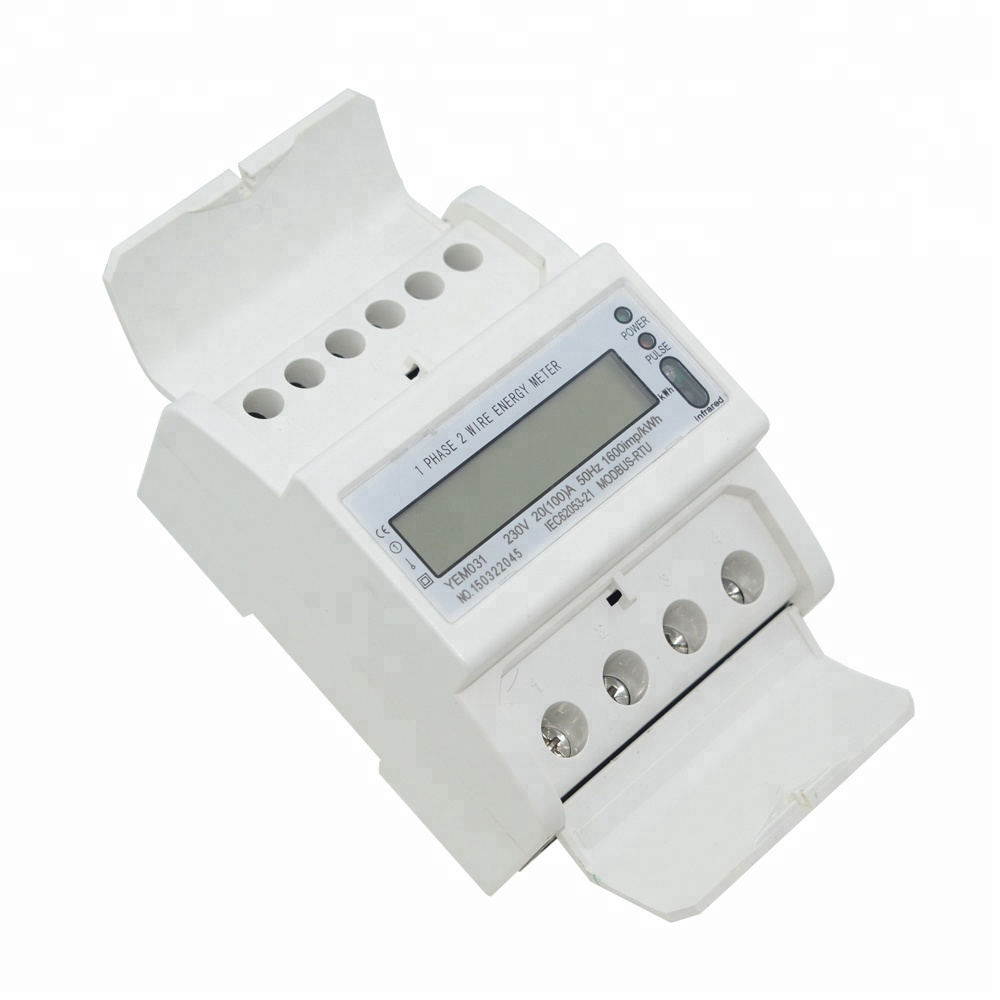

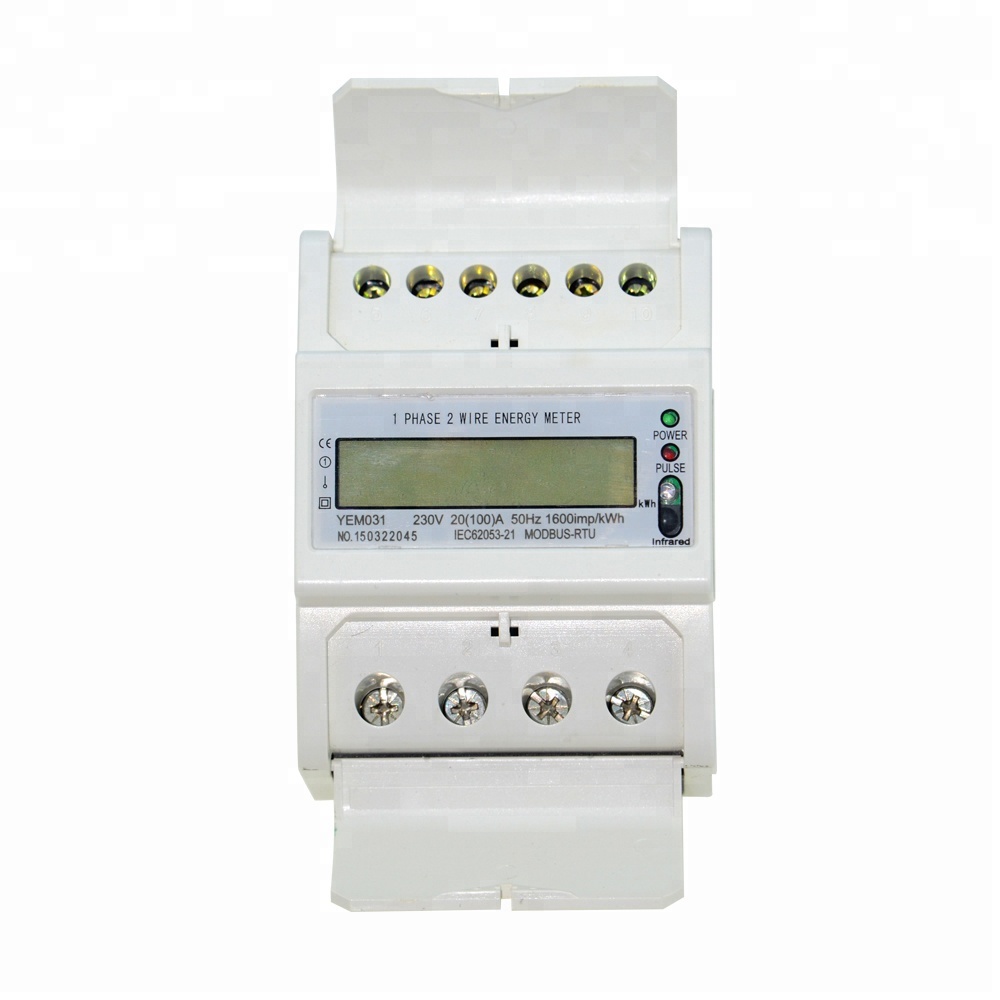

Din Rail Single Phase Modbus Electricity Meter Multi-Rate Energy Meter Digital Kwh Meter With RS485

Product description Model YEM031AL single phase electronic multi-rate DIN rail active energy meter is a kind of single phase two wire three tariffs (time-sharing billing)active energy meter, the meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21.It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is used for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. As a special reminder, this is new electricity meter.Rate is displayed on the LED display screen. Model Accuracy Reference Voltage（v） Current Specifications（A） Starting Current（A） Insulation Performance YEM031AL Class 1 127 230 5（30） 10（50） 20（100） 0.02 0.04 0.08 AC voltage 4KV for 1minute，1.2/50us waveform impulse voltage 6kv Terminal Note L Phase line N Natural Line(Inlet from bottom, outlet from top) 3 and 4 port of pulse output passive item value Place of Origin China Zhejiang Brand Name TOMIN Model Number YEM031AL Display Type Digital Only Phase Single Phase Measuring Energy Range 0~999999.99 Accuracy Class Class1 Output Voltage 220V/240V Operating Temperature -10℃~+45℃ Dimensions 75*88*74 Display LCD Display Color White Rated current 5(30)A,10(60)A,20(100)A, Standard IEC62053-21 Communication RS 485 Frequency 50HZ/60HZ Product name Single Phase Electronic KWh Meter Certificate CE ROHS ISO9001 Type DIN Rail Energy Meter 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian Why Work With Us? 23+ Years of Export Experience Full Certification Support (CE, ROHS, etc.) Fast Sampling & Mass Production Reliable Quality Control System One-Stop OEM/ODM Service
