Factory Price 4P LCD 230V Rail-mounted Electricity AC Active Three Phase 4 Wire Energy Meters with Transparent Cover & Backlight
From $9.80
Energy Meters
Factory Price 4P LCD 230V Rail-mounted Electricity AC Active Three Phase 4 Wire Energy Meters with Transparent Cover & Backlight — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: Class 1; Max. Current: 80A; Measuring Energy Range: 0-999999.9 kWh. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available

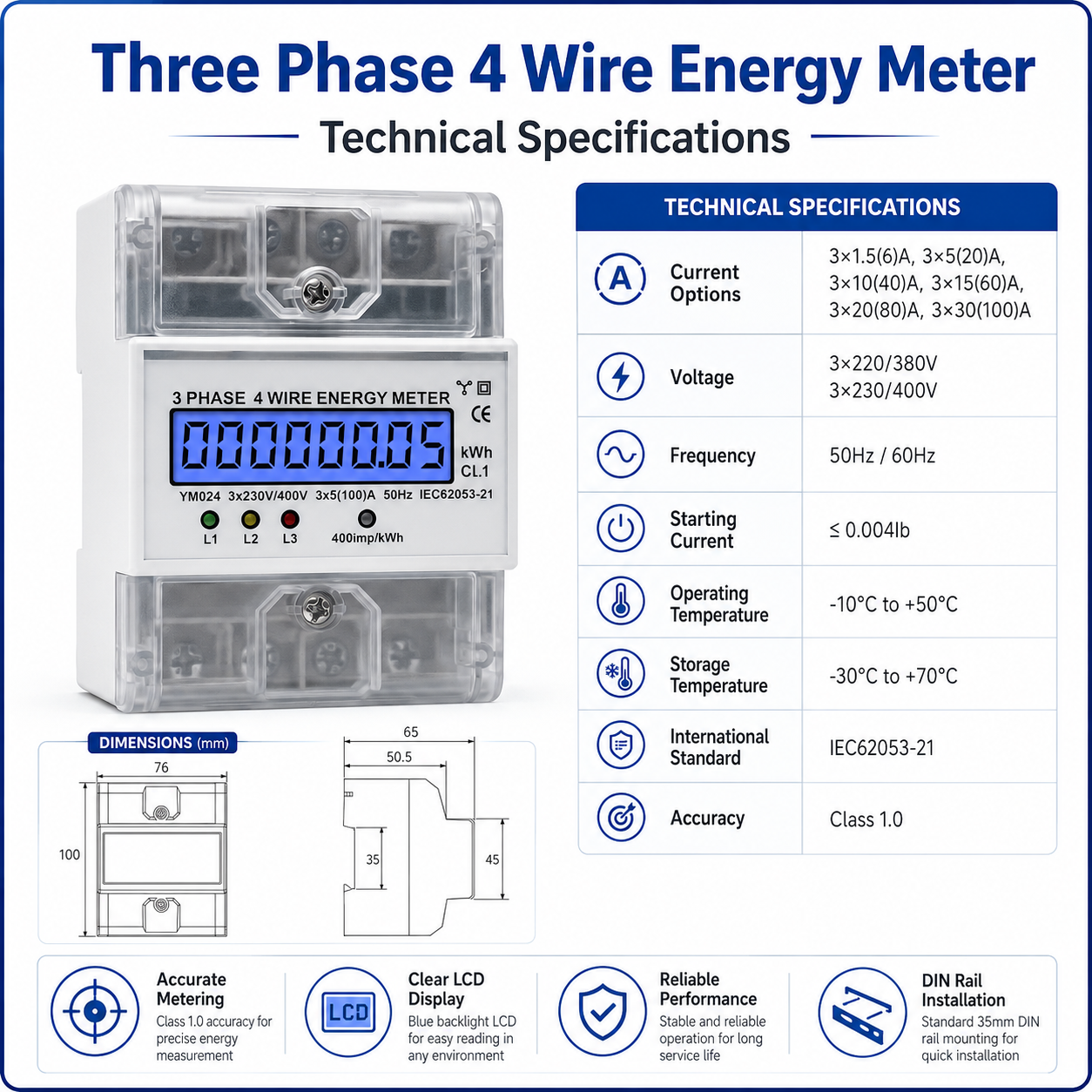

Technical Specifications
| Accuracy Class | Class 1 |
|---|---|
| Max. Current | 80A |
| Measuring Energy Range | 0-999999.9 kWh |
| Phase | Three Phase |
| Rated Current | 5A, 3x1.5(6)A 3x5(20)A3x10(40)A 3x15(60)A 3x20(80)A3x30(100)A 3x5(100)A |
| Model Number | YEM024 |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Application | Industrial, Household |

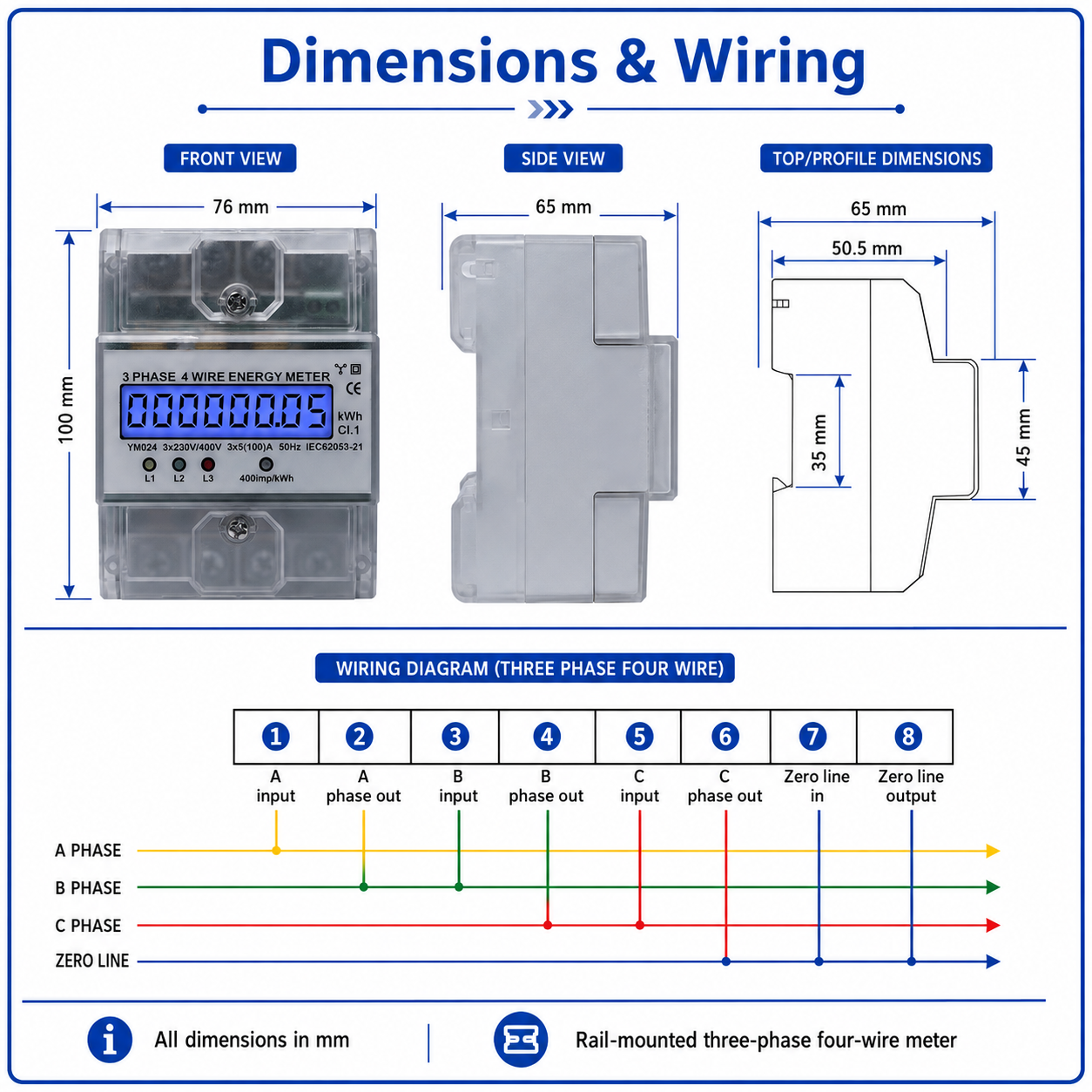

| Dimensions | 76x65x100 mm |
| Display Type | LCD |
| Feature | Safety |
| Operating Temperature | -10℃～60℃ |
| Output Voltage | 230 V |
| Standard | IEC62053-21 |
| Starting Current | <0.004b |
| Frequency | 50HZ/60HZ |
| Color | White |
| Certificates | CE, RoHS, ISO9001 |
| Product name | Kwh meter |
| Type | AC Active Meter |
| OEM | Avaliable |

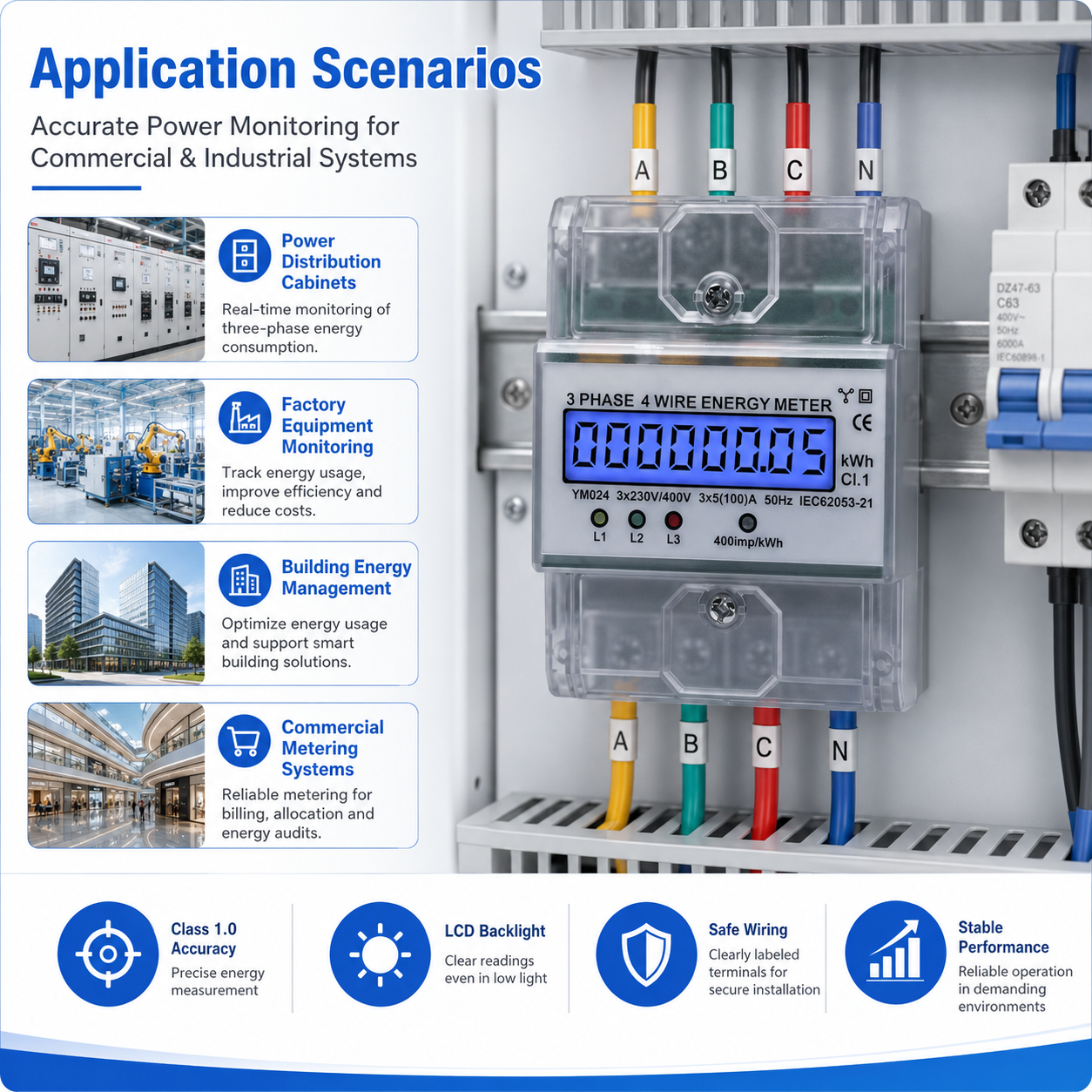

Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
