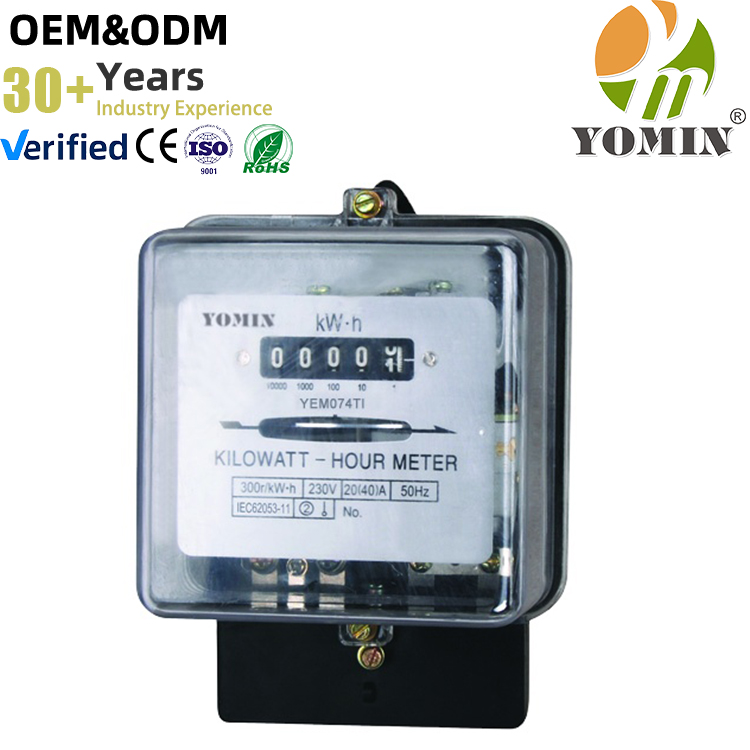

Front Board Installation Analog Electric 50HZ 127V 230V KWH Energy Meter Single Phase Energy Meters with PC Transparent Cover
From $5.44
Energy Meters
Front Board Installation Analog Electric 50HZ 127V 230V KWH Energy Meter Single Phase Energy Meters with PC Transparent Cover — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: class 2; Max. Current: 40A; Measuring Energy Range: 10(20),20(40),30(60),40(80)A. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | class 2 |
|---|---|
| Max. Current | 40A |
| Measuring Energy Range | 10(20),20(40),30(60),40(80)A |
| Phase | Single Phase |
| Rated Current | 20A |
| Model Number | YEM074TI |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Application | Industrial, Household |
| Basic Current | 20A |

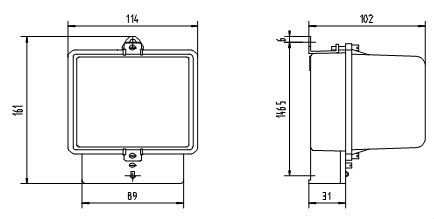

| Dimensions | 161x114x102mm, 161*114*102mm |
| Display Type | Analog Only, Analog Only |
| Feature | Safety, Durable |
| Operating Temperature | -20°C ~ + 60°C, -20℃~60℃ |
| Output Voltage | 127,230V |
| Installed | Front board mounted |
| Product name | Front Board Mounted Energy Meter |
| Certificate | CE ROHS |
| Cover Material | PC |
| Bottom Materil | Steel |
| Terminal | Bakelite |
| Accuracy | Class 2 |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
