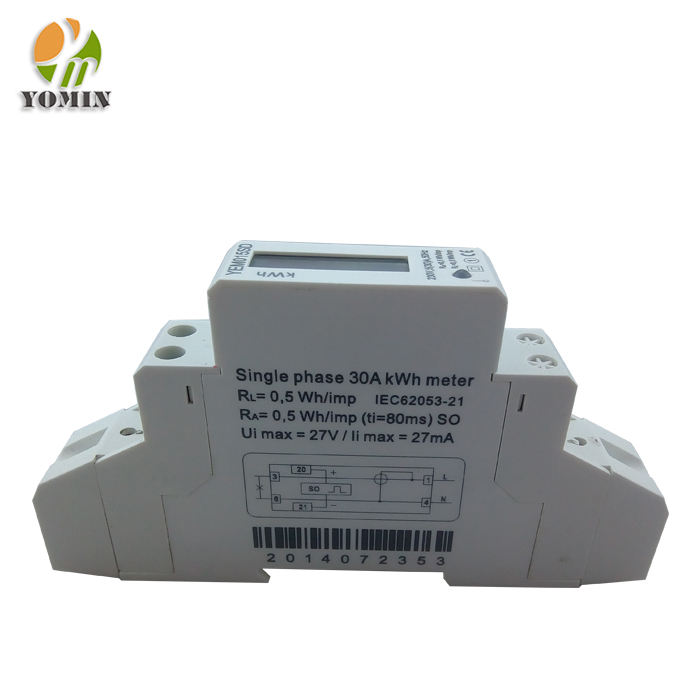

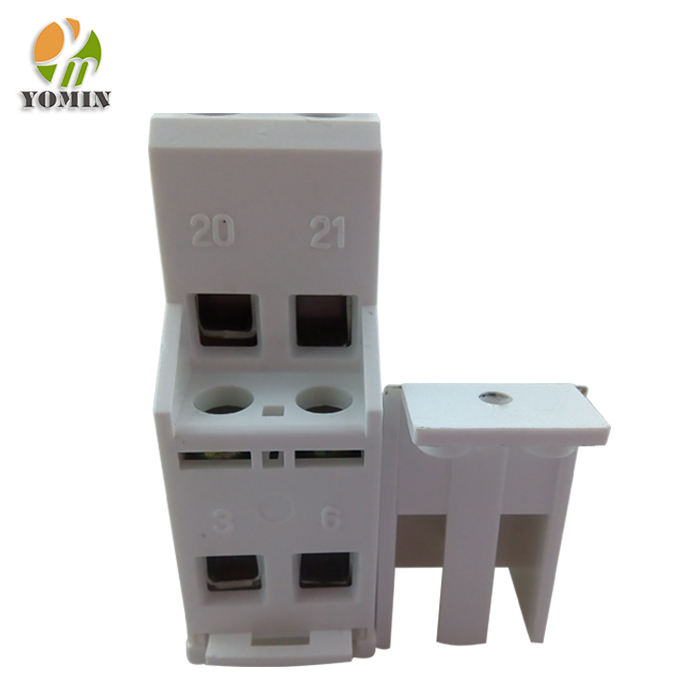

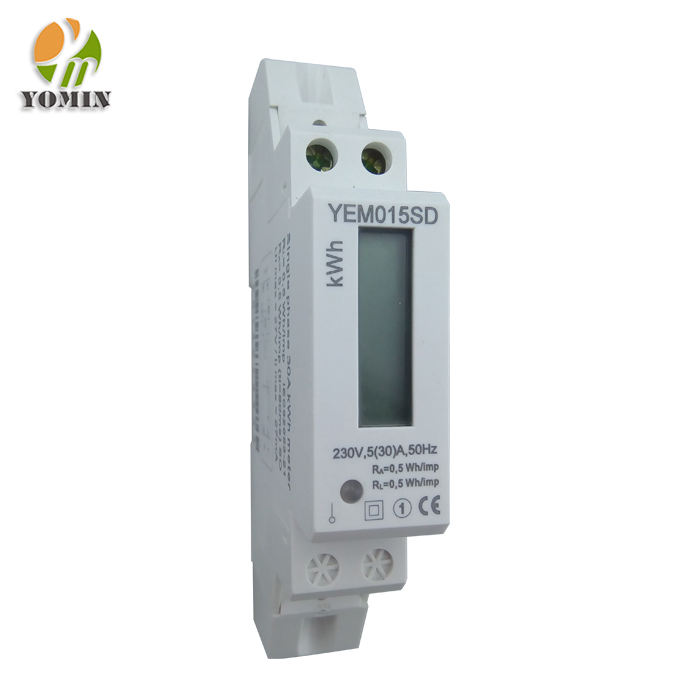

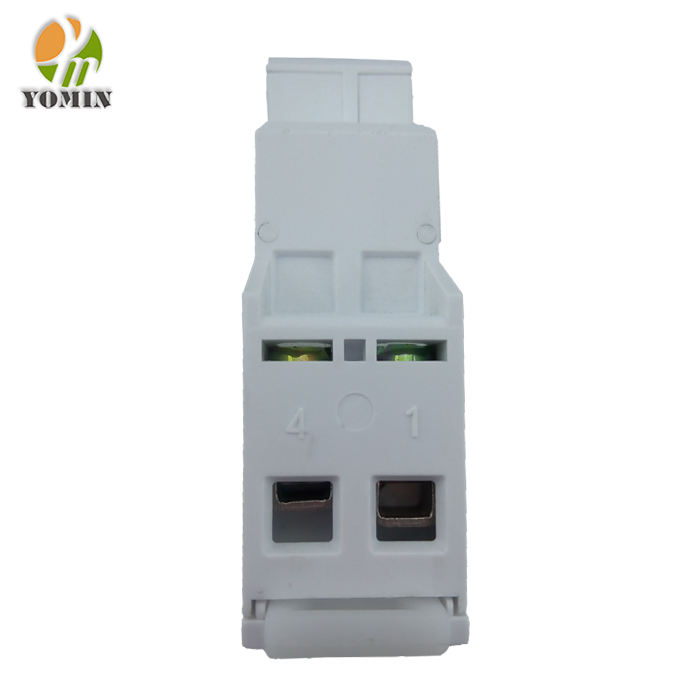

Power Monitoring Single Phase AC Electricity Meter Materminal Two Wire Din Rail Active Watt Hour Meter Smart kwh Meter

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance YEM015SD Class 1 120 230 5(32) 0.02 AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv 1. 35mm standard DIN rail installation, complying with standard IEC62053-21. 2. Single pole width (Modulus 17.5mm), complying with standard DIN43880. 3. Standard configuration 6+1 digits display (999999.1kWh) by step motor type impulse register. 4. Standard configuration pulse output passive (polarity),May select distant pulse output passive ( nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864. 5. Bicolor LED instructions power supply state (green) and signal of energy impulse (red). 6. Automatic detection the direction of the flow of load current. And instructions (Only red energy impulse signal when working,If no green instructions power supply, that is meaning the direction of the flow of load current reverse). 7. Single direction measurement single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21. 8. Directly connect and use, there are two types wiring you may select. Standard configuration 9. Extension terminals cover, in order to protect to use safety. Model YEM015SD single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious appearance, convenient installation, etc. 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian Why Work With Us? 23+ Years of Export Experience Full Certification Support (CE, ROHS, etc.) Fast Sampling & Mass Production Reliable Quality Control System One-Stop OEM/ODM Service
