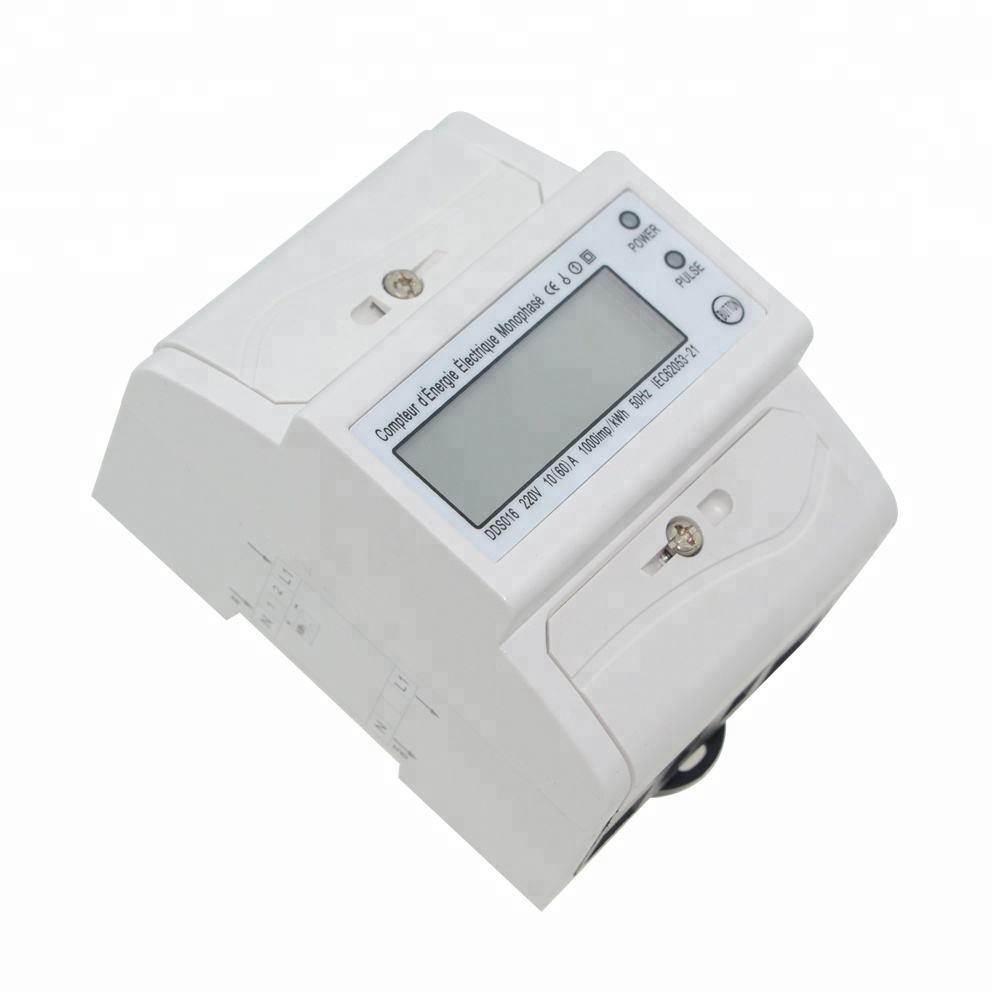

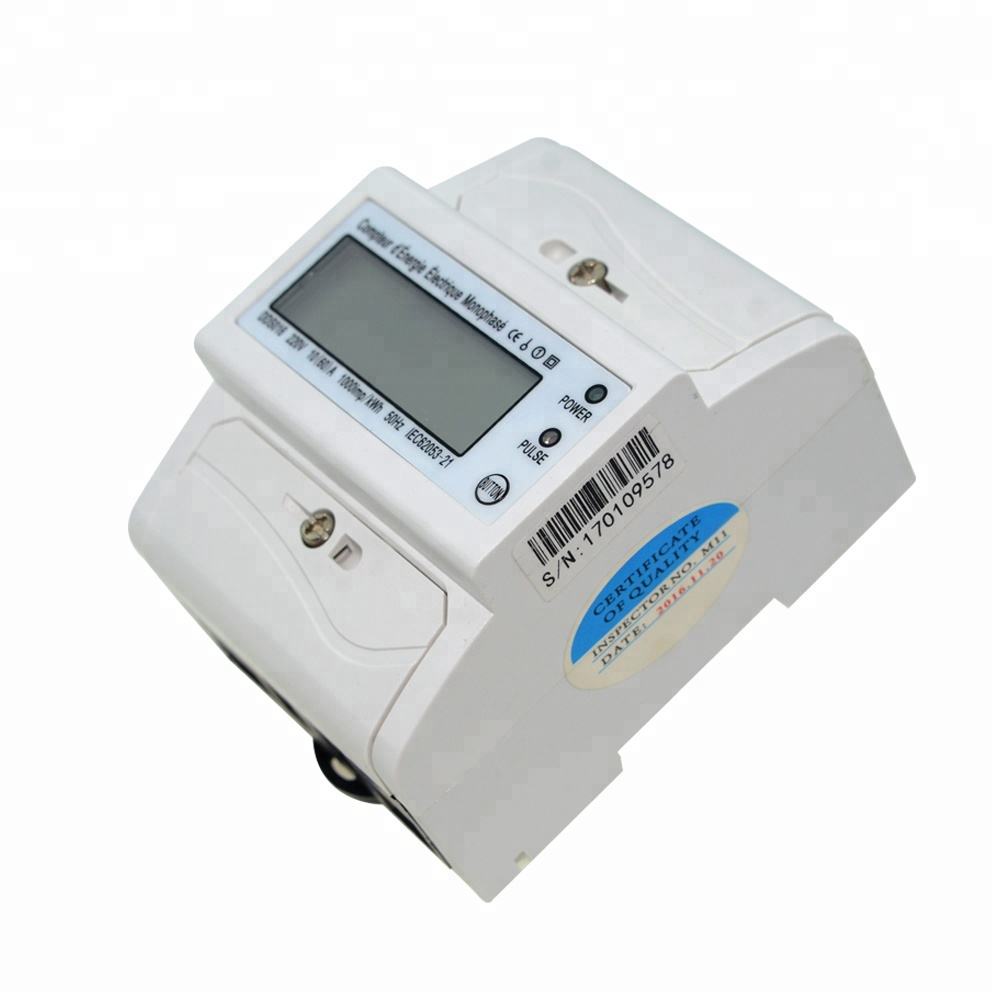

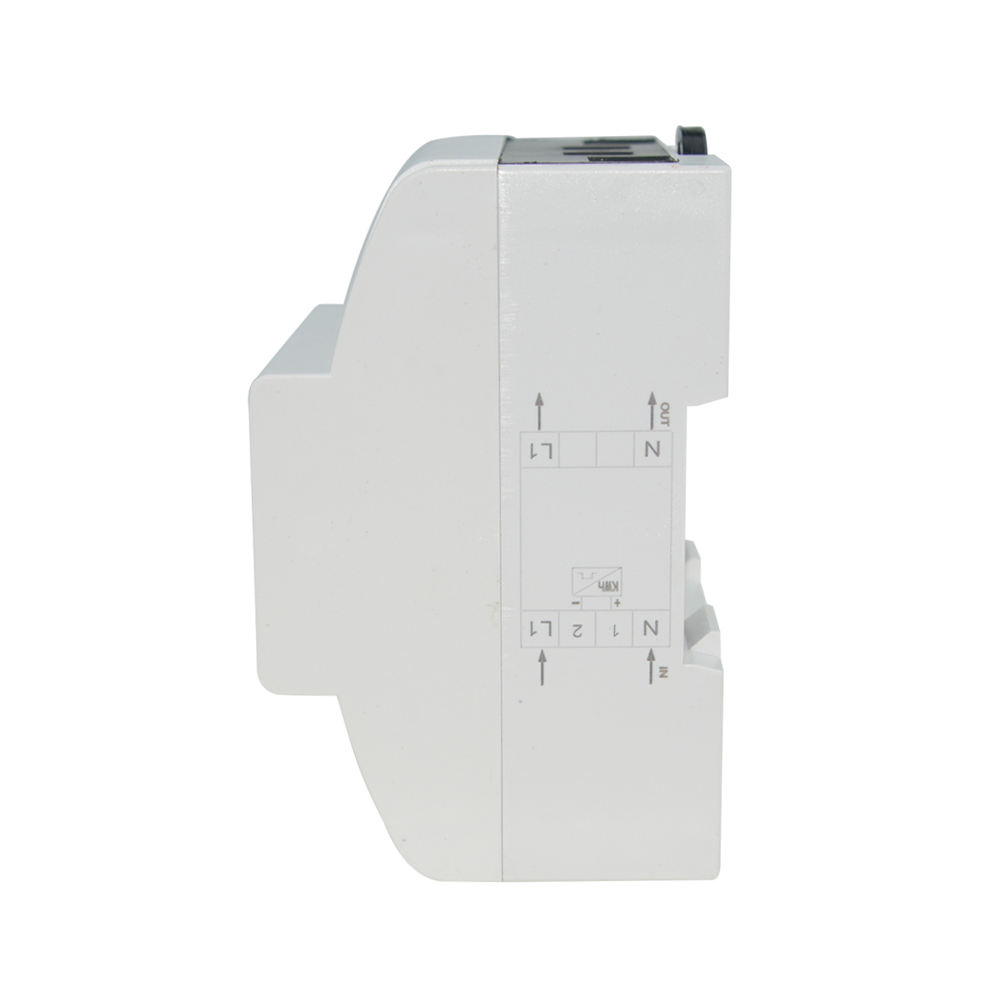

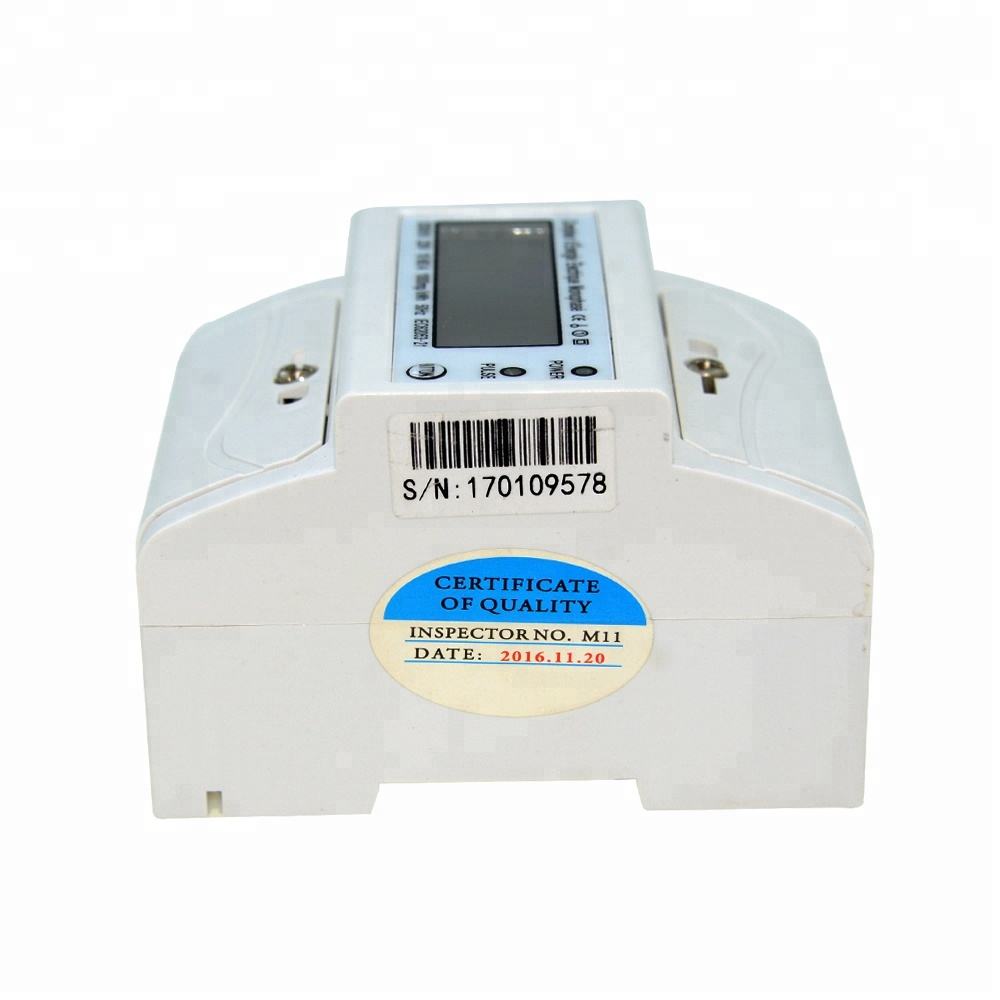

Rail-Mounted Electronic Single Phase LCD Display Transparent Cover and Backlight Safety-Compliant Energy Meter

Single Phase Din Rail Energy Meter Digital Kwh Meter Model YEM011JC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. 1.35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting (mounting holes center distance 63 mm), users can choose any one by themselves. 2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993. 3. Standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering). 4. Standard configuration Impulse output passive (polarity),May select distant impulse output passive (no polarity). And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864. 5. Two LED instructions respectively power supply state (green) and signal of energy impulse (red). 6. Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions by an individual LED. 7. Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21. 8. Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of connection, and use CT (Product Configuration code is IC) and PT & CT (Product Configuration code is HC) for operation. 9. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is JF). Phase Single Phase Brand Name YOMIN Operating Temperature -20℃~ 70℃ Display LCD Display 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian Why Work With Us? 23+ Years of Export Experience Full Certification Support (CE, ROHS, etc.) Fast Sampling & Mass Production Reliable Quality Control System Provide OEM/ODM Service
