Single Phase 2Wrie Din Rail Digital Energy Power Meter Showing Electricity Digital Electric Energy Meter for Alternating Current
From $3.77
Energy Meters
Single Phase 2Wrie Din Rail Digital Energy Power Meter Showing Electricity Digital Electric Energy Meter for Alternating Current — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: 1.0; Max. Current: 80A; Measuring Energy Range: 0-999999.9 kWh. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | 1.0 |
|---|---|
| Max. Current | 80A |
| Measuring Energy Range | 0-999999.9 kWh |
| Phase | Single Phase |
| Rated Current | 5 A |
| Model Number | XTM35 |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Application | Industrial, Household |

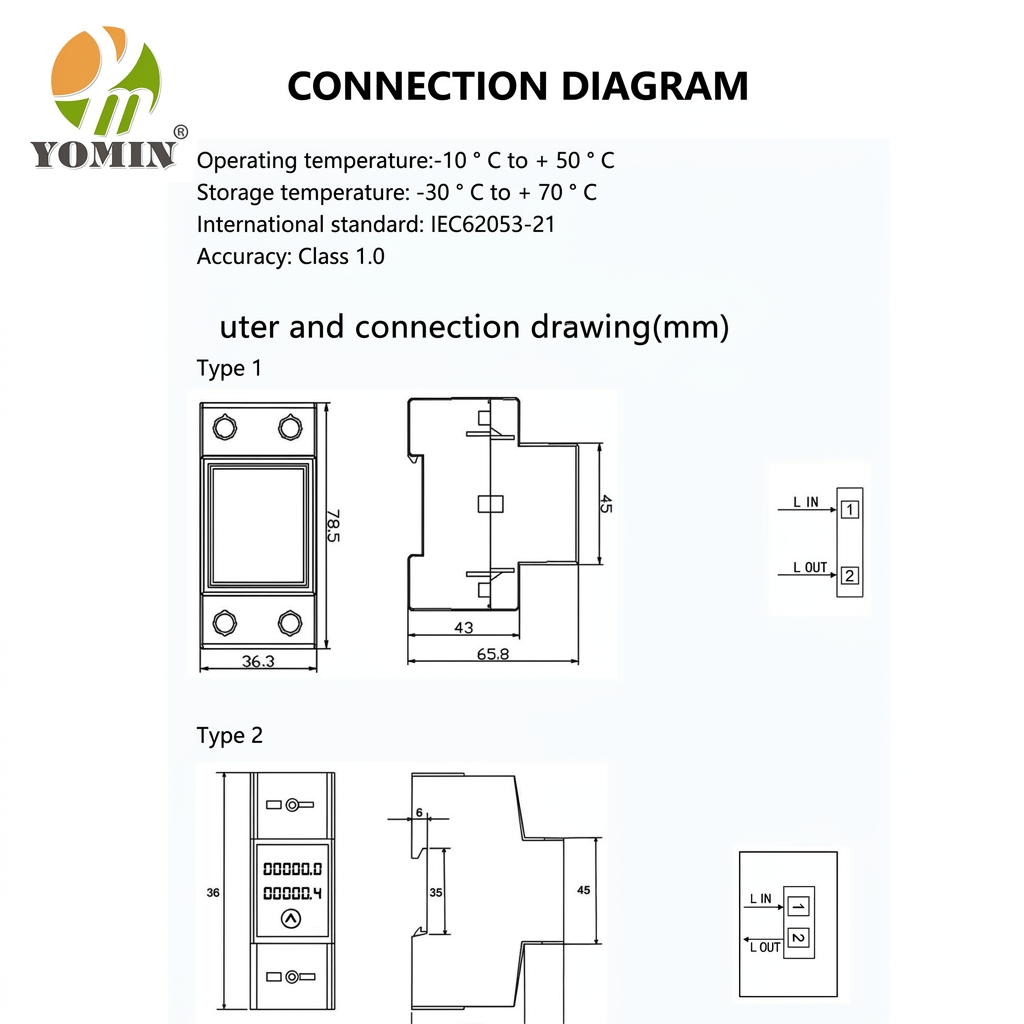

| Dimensions | 36.3mm*43mm*78.5mm |
| Display Type | Digital Only |
| Feature | Safety |
| Operating Temperature | -10 ° C to + 50°C |
| Output Voltage | 220v230v |
| Product specification current | 5(20)A 10(40)A 20(80)A 5(80)A |
| Rated voltage | 220V 230V |
| Frequency | 50HZ/60HZ |
| international standard | IEC62053-21 |
| Accuracy | Class 1.0 |
| Storage temperature | -30°Cto+ 70°C |
| Starting current | ≤ 0.004b |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
