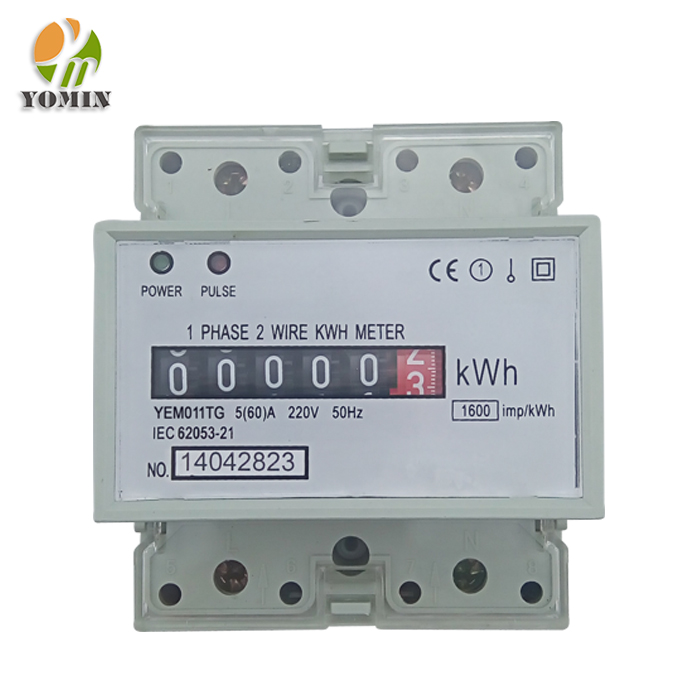

Single Phase Din Rail Cheap 220v Energy Meter for Medidor De Energia With Round Terminal Hole
Single phase din rail cheap 220v energy meter for medidor de energia with round terminal hole Technical Parameters Model Accuracy Frequency Dimension Connection Mode YEM011TG 1.0 50/60HZ 88x75x73mm Directly Rated Voltage Rated Current Starting Current Display Mode Insulation Performance 127 V 230 V 5(30)A ,10(50)A, 20(100)A 0.02A, 0.04A, 0.08A LCD 5+1 AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv Dimension 1 Where is your factory? Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China. 2 Are you manufacturer or business? We are manufacturer established in 2002, and have over 16 years production experience. 3. Can I ask for samples? Yes 4. What's the warranty of your products? 18 months 5. What's the lead time? Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales. 6. How about the MOQ, Payment term, Delivery port, and shipping date? 1)MOQ: 100 pcs/item based on existing packing. 2)T/T-30% deposit and 70% against copy of BL 3)L/C is also acceptable 4)Ningbo/Shanghai
🌍 Worldwide Shipping
Technical Specifications
| Accuracy Class | Class1.0 |
|---|---|
| Measuring Energy Range | 0-99999.9kWh |
| Phase | Single Phase |
| Model Number | YEM011TG |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Dimensions | 88x75x73 mm |
| Display Type | Digital Only |
| Operating Temperature | -20℃~ 70℃ |
| Output Voltage | 127V,230V |
| Rated Current | 5(30)A 10(50)A 20(100)A |
| Starting Current | 0.02A 0.04A 0.08A |
| Material of case | PC (Poly Carbonate) |
| Installation | 35mm Standard DIN Rail |
| Connection Mode | Directly |
| Frequency | 50HZ/60HZ |
| Color | White |
| Style | Customized Design |
| Certificates | CE,RoHS,ISO9001 |
| OEM | Avaliable |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
