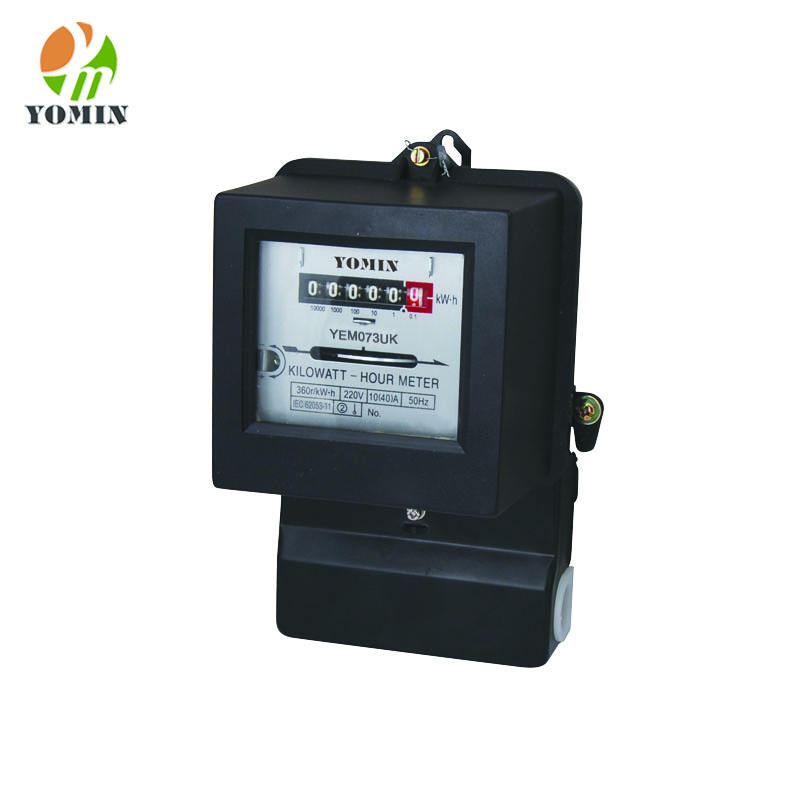

Single Phase Electronic KWh Meter Electromechanical Electric Energy Monitor Energy Digital Induction Single Phase Energy Meters

Model YEM073UK Accuracy 1.0 Reference voltage 127V,230V Current specifictions(A) 5(20)A,10(40)A,20(80)A,30(100)A Starting current(A) 0.025A,0.05A,0.1A ,0.15A Insulation performance AC voltage 4KV for 1 minute, 1.2/50us waveform impulse voltage 6 KV 1. Front board three fixed installation, the cover is made ABS engineering plastics molded overall, has a transparent glass window, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: economy benefits, specious appearance, etc. 2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact. 3. Voltage components and current components is used of double insulation structure, has good electrical characteristics. 4. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is UE). 5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjusted which is finished by anti-creeping hole of disc and convenient for adjusting by users. 6. Standard configuration 6 digits display by drum wheel mechanical register, may select 5 digits display by drum wheel mechanical register (Product Configuration code is UH). 7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering). 8. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11. 9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is UJ). 10. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is TK). 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian Why Work With Us? 23+ Years of Export Experience Full Certification Support (CE, ROHS, etc.) Fast Sampling & Mass Production Reliable Quality Control System One-Stop OEM/ODM Service
