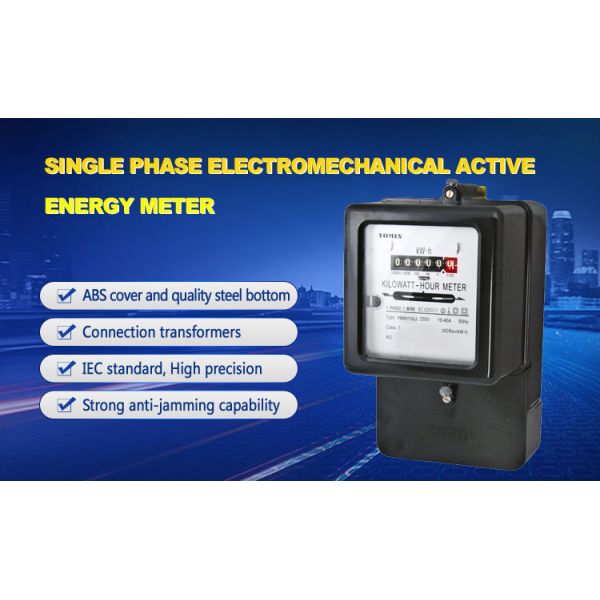

Single Phase Front Board Installed Mechanical Energy Meter
The YEM073QJ is a single phase two wire electromechanical front board installed active energy meter, developed from the classic DD862 design. It meets the Class 2 requirements of IEC 62053-11 and directly measures 50/60 Hz active energy on single phase AC networks. The bakelite housing is moisture-resistant, flame-retardant and moulded in one piece with a transparent glass window, supported by an aluminium frame. Energy consumption is shown on a drum-wheel mechanical register, and the double gem bearing construction delivers long life and minimal friction.
🌍 Worldwide Shipping
Technical Specifications
| Model Number | YEM073QJ |
|---|---|
| Phase | Single Phase |
| Accuracy Class | Class 2 |
| Reference Voltage | 127V / 230V |
| Current Specifications | 5(20)A, 10(40)A, 20(80)A, 30(100)A |
| Starting Current | 0.025A / 0.05A / 0.1A / 0.15A |
| Frequency | 50/60Hz |
| Display | Analog (drum-wheel register) |
| Standard | IEC 62053-11 |
| Material | Bakelite |
| Installation | Front Board |
| Dimensions | 212.5 x 120 x 120mm |
| Operating Temperature | -20°C ~ 60°C |
| Certificate | CE |
| OEM | Supported |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
