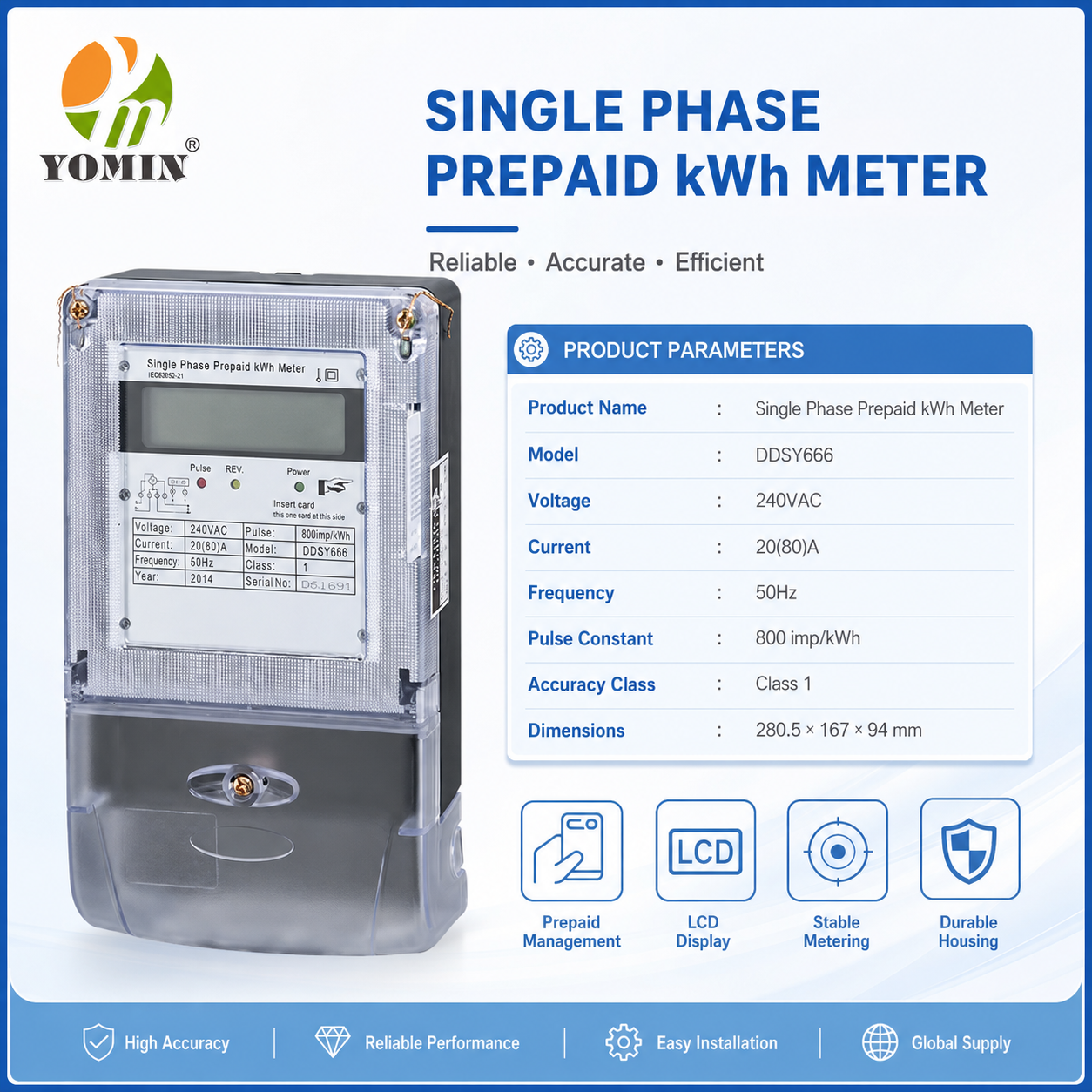

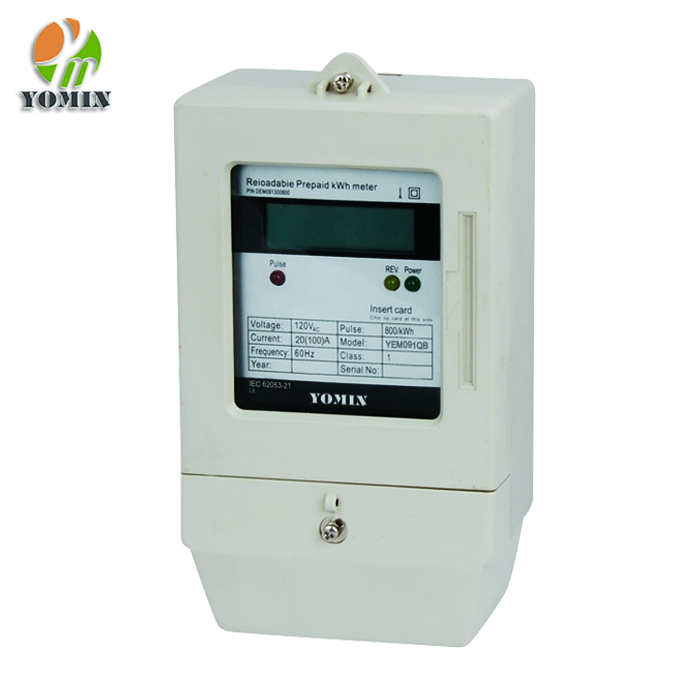

Single Phase Prepaid KWH Meter Installed Front Board Front-Loaded Digital IC Card Energy Meter for Prepaid Electricity Supply
From $10.08
Energy Meters
Single Phase Prepaid KWH Meter Installed Front Board Front-Loaded Digital IC Card Energy Meter for Prepaid Electricity Supply — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: class 1; Max. Current: 80A; Measuring Energy Range: 5(30),10(60),20(100)A. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | class 1 |
|---|---|
| Max. Current | 80A |
| Measuring Energy Range | 5(30),10(60),20(100)A |
| Phase | Single Phase |
| Rated Current | 20A, 20(120)A |
| Model Number | YEM101PC |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Application | Electric Power, Household, Industrial |

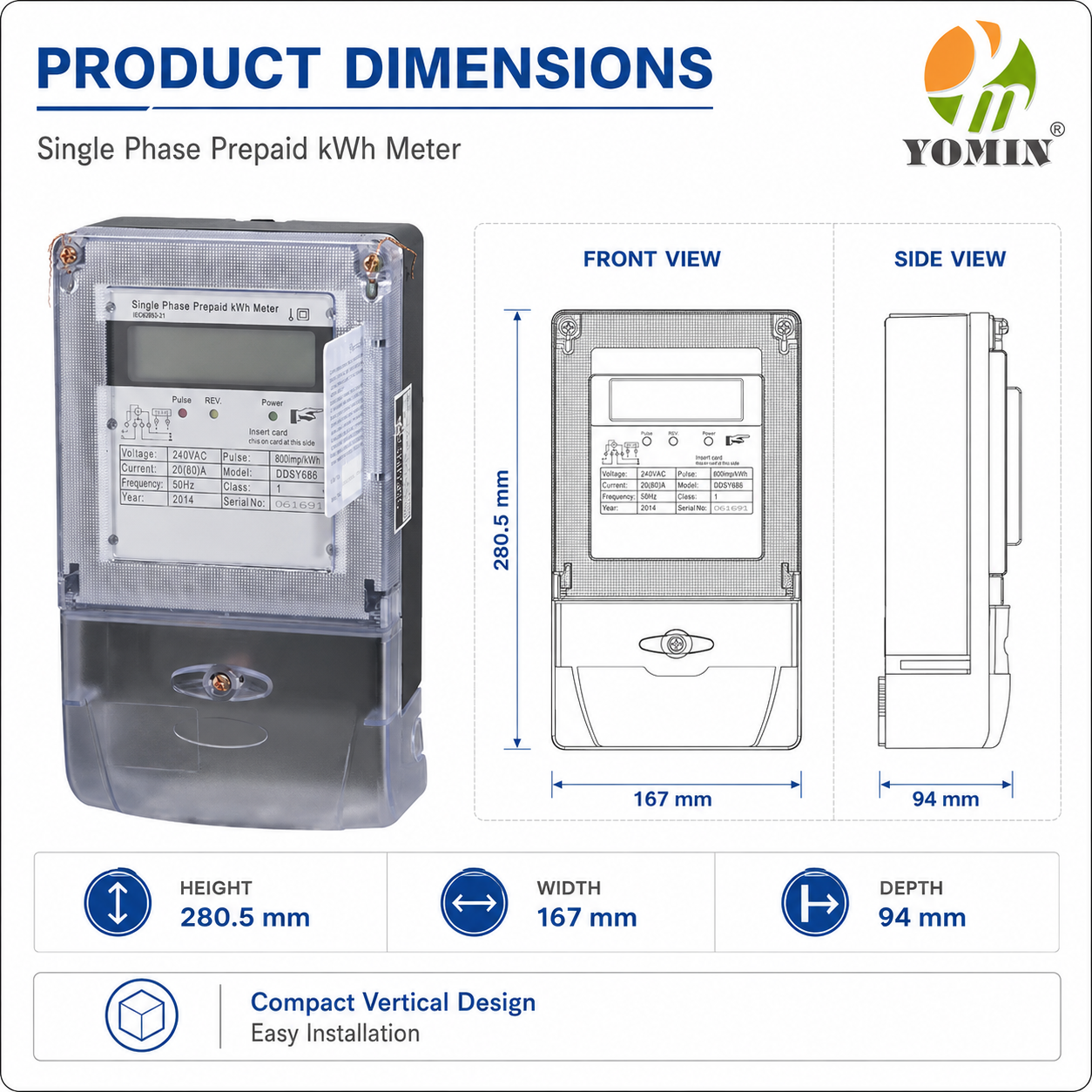

| Dimensions | 280.5x167x94mm |
| Display Type | Digital Only |
| Operating Temperature | -20°C ~ + 60°C |
| Output Voltage | 3X127/220,3X230/400V |

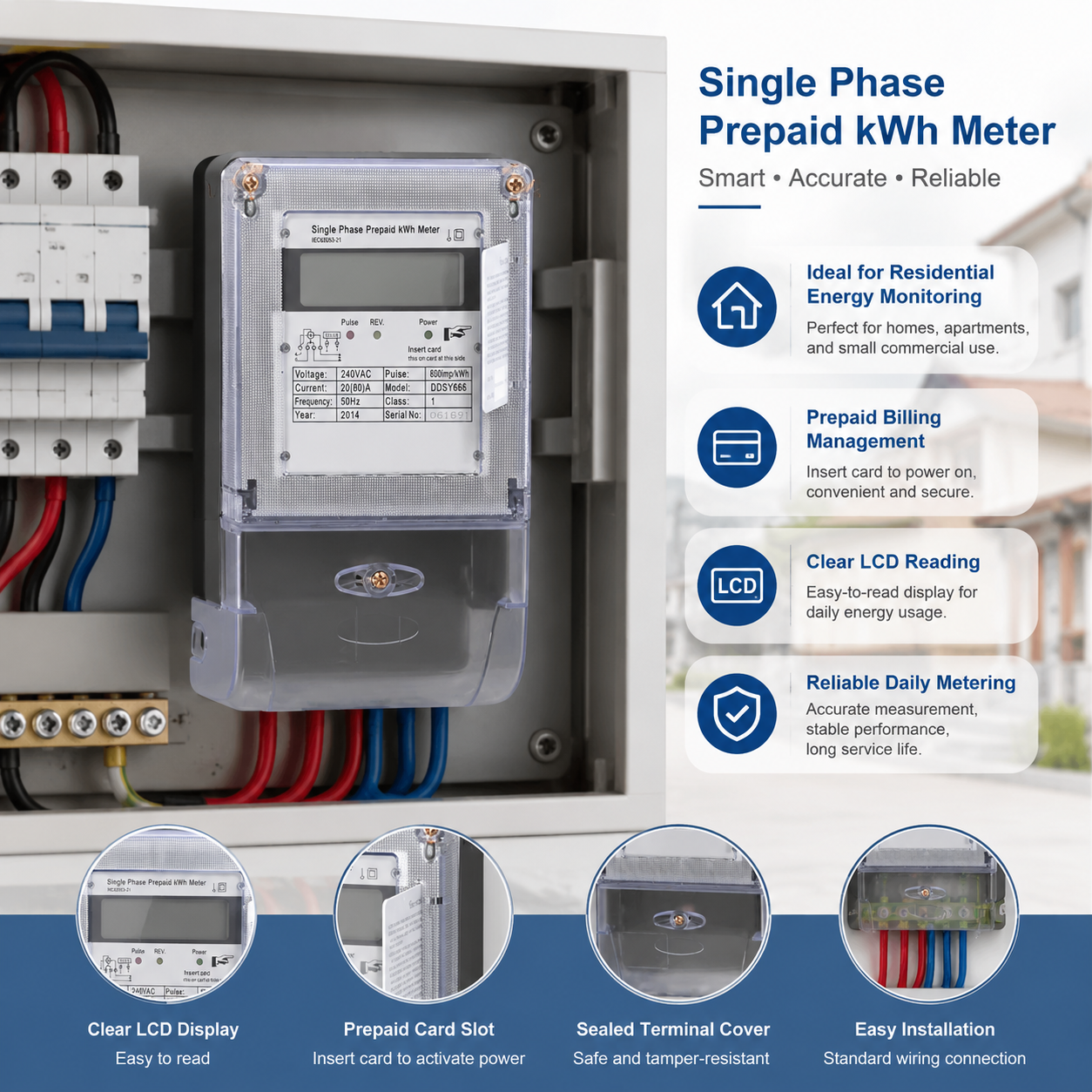

| Installed | Front board mounted |
| Name | Prepaid Energy Meter |
| Display | LCD Display |
| Color | White |
| Standard | IEC62053-21 |
| Frequency | 50HZ/60HZ |
| Certificate | CE ROHS |
| Rated voltage | According to your requirement |
| Product Name | energy meter ic |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
