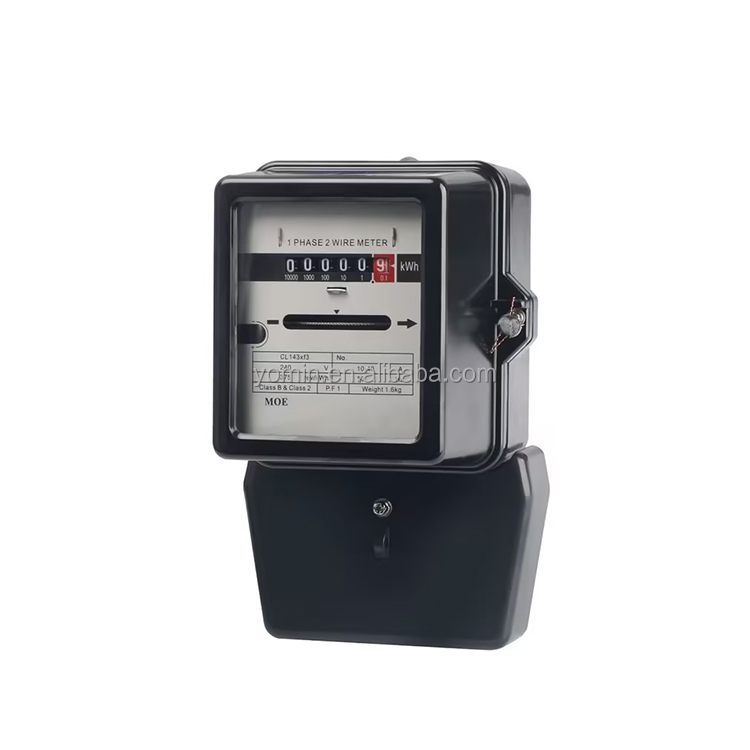

Single Phase Two Wire Mechanical Kilowatt-hour Electric Meter Kilowatt-hour Energy Meter With Bakelite Cover

Model YEM073QJ Accuracy 2.0 Reference voltage 127V,230V Current specifictions(A) 5(20)A,10(40)A,20(80)A,30(100)A Starting current(A) 0.025A,0.05A,0.1A,0.15A Insulation performance AC voltage 4KV for 1 minute, 1.2/50us waveform impulse voltage 6 KV 1. Front board three fixed installation, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. The cover is also made of bakelite material and has a transparent glass window.It has following features: good weatherability, high rigid, good insulation performance, etc. 2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact. 3. Voltage components and current components is used of double insulation structure, has good electrical characteristics. 4. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is QD) or magnetic suspension (Product Configuration code is QP). 5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users. 6. Standard configuration 6 digits display by drum wheel mechanical register, may select 5 digits display by drum wheel mechanical register (Product Configuration code is QG). 7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering). 8. Standard configuration without handle, may select add a handle for carrying the meter conveniently. (Please specified when ordering). 9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11. 10. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is QK). 11. Extension terminals cover, in order to protect to use safety. Model YEM073QJ single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorbs new technologies about electromechanical meter from domestic and abroad. The meter completely accords with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is used for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc. 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian Why Work With Us? 23+ Years of Export Experience Full Certification Support (CE, ROHS, etc.) Fast Sampling & Mass Production Reliable Quality Control System One-Stop OEM/ODM Service
