Small Design LCD/counter Display Electricity RS485 5(20)A 5(25)A 5(30)A DIN Rail Mounting Energy Meter Single Phase Energy Meter
From $7.95
Energy Meters
Small Design LCD/counter Display Electricity RS485 5(20)A 5(25)A 5(30)A DIN Rail Mounting Energy Meter Single Phase Energy Meter — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: 0.5; Max. Current: 5 A; Measuring Energy Range: 0-999999. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | 0.5 |
|---|---|
| Max. Current | 5 A |
| Measuring Energy Range | 0-999999 |
| Phase | Single Phase, Single Phase |
| Rated Current | 30A |
| Model Number | YEM015 |
| Brand Name | YOMIN, YOMIN |
| Place of Origin | Zhejiang, China |
| Application | Household |
| Basic Current | 5(30)A |

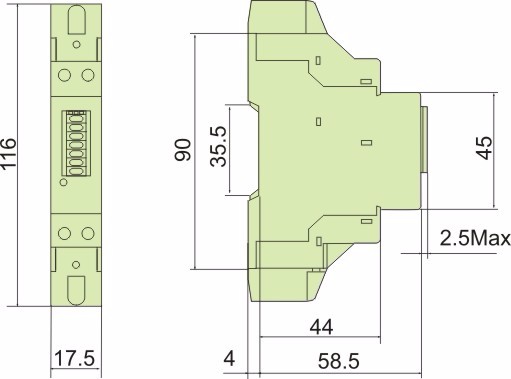

| Dimensions | 116x17.5x63mm, 116x17.5x63mm |
| Display Type | Analog And Digital |
| Feature | Durable, Safety |
| Operating Temperature | 20℃~+70℃ |
| Output Voltage | 220V |
| Type | DIN Rail Mounting Energy Meter |
| Name | Single-phaseDin rail Energy Meter |
| Display | 7 Digits LCD |
| Operating Tem | 20℃~+70℃ |
| Standard | IEC62053-21 |
| Frequency | 50HZ/60HZ |
| Starting curren | 0.02A |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
