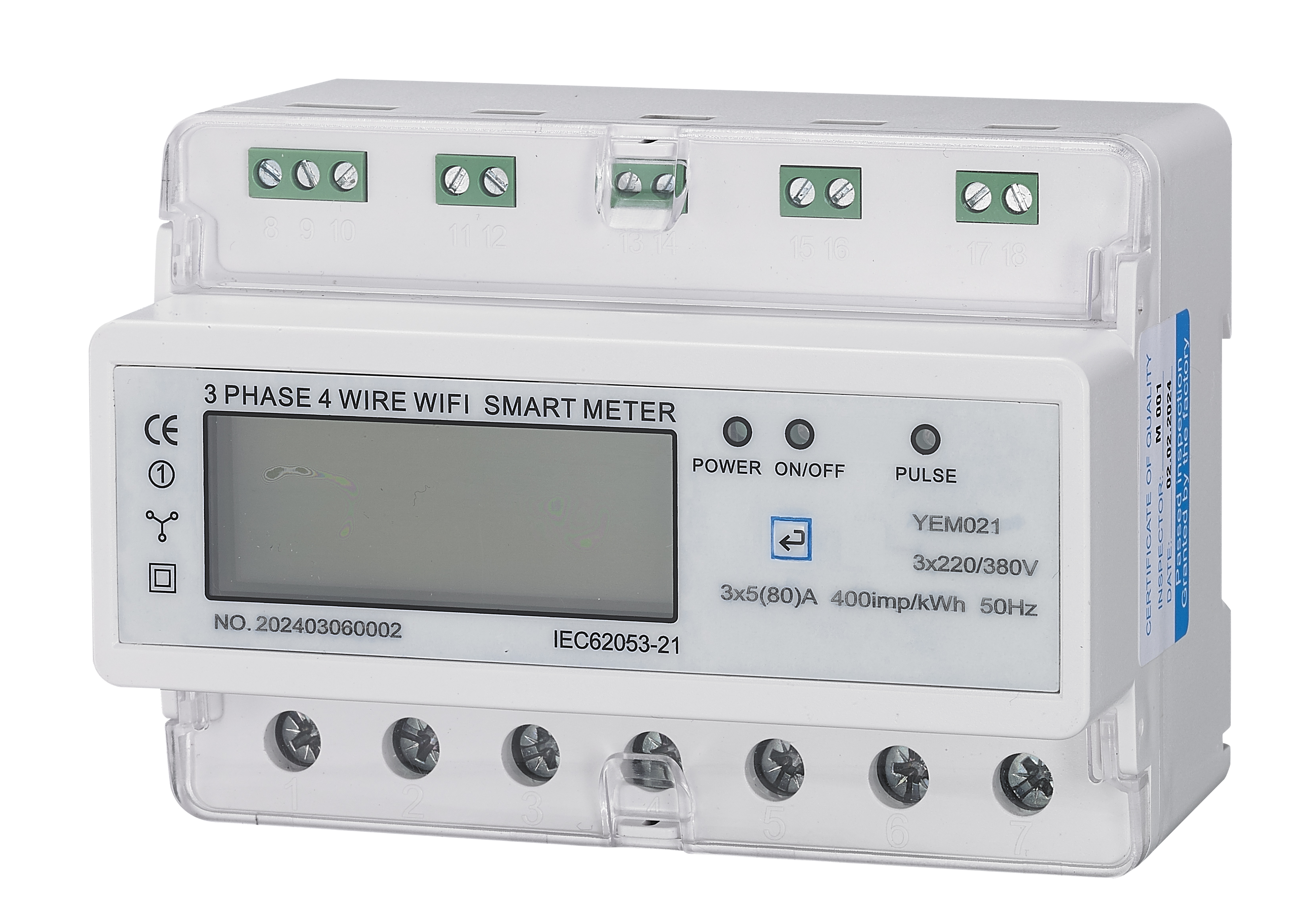

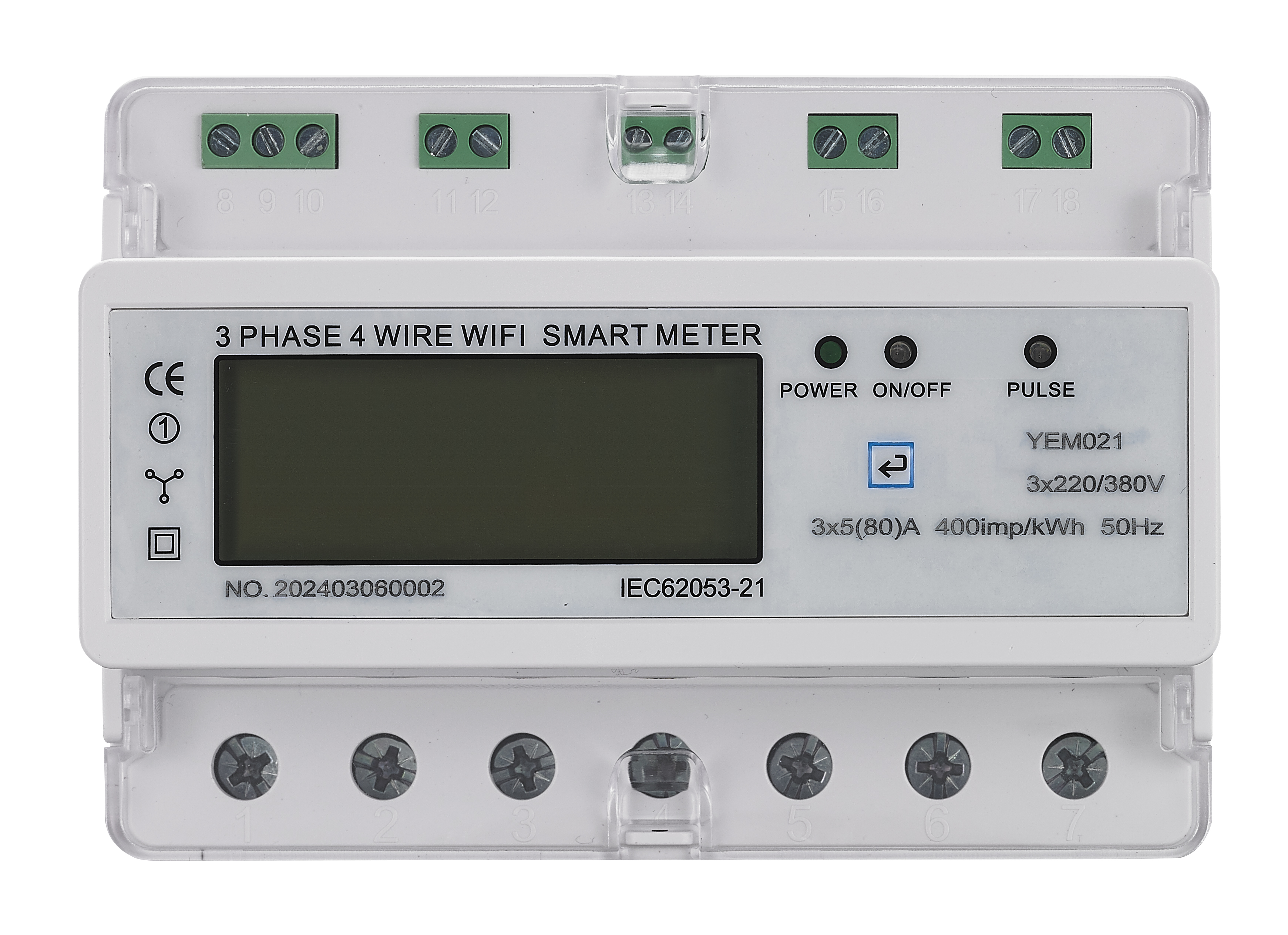

Three Phase 380V Four Wire 7P Remote Reading and Control WIFI Din Rail Smart Energy Meter With Relay Can Use APP
From $32.80
Energy Meters
Three Phase 380V Four Wire 7P Remote Reading and Control WIFI Din Rail Smart Energy Meter With Relay Can Use APP — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: Class 1; Max. Current: 80 A; Measuring Energy Range: 0---99999W. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | Class 1 |
|---|---|
| Max. Current | 80 A |
| Measuring Energy Range | 0---99999W |
| Phase | Three Phase |
| Rated Current | 15A |
| Model Number | YEM021 |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Application | Electric Power, Industrial |
| Basic Current | 15 A |
| Dimensions | 12.5*8.9*7.4 |
| Display Type | Digital Only |
| Operating Temperature | -40-70℃ |
| Output Voltage | 100-240V |
| Color | White |
| Rate frequency | 50Hz or 60Hz |
| Rated current | 3x5(30)A |
| Rated voltage | 3x220/380V |
| Limits voltage range | 85~300V(L~N) |
| LCD display kwh | 999999.99kwh |
| Starting current | 40mA(min measure) |
| Voltage circuit | <2W/10VA |
| Operation temperature | -25~70℃ |
| Meter type | Wifi IVAP |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
