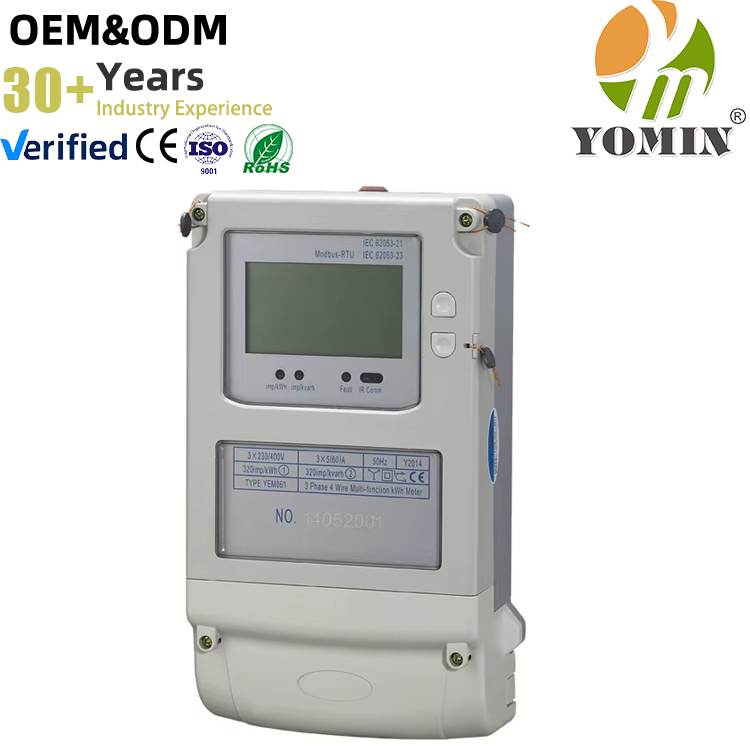

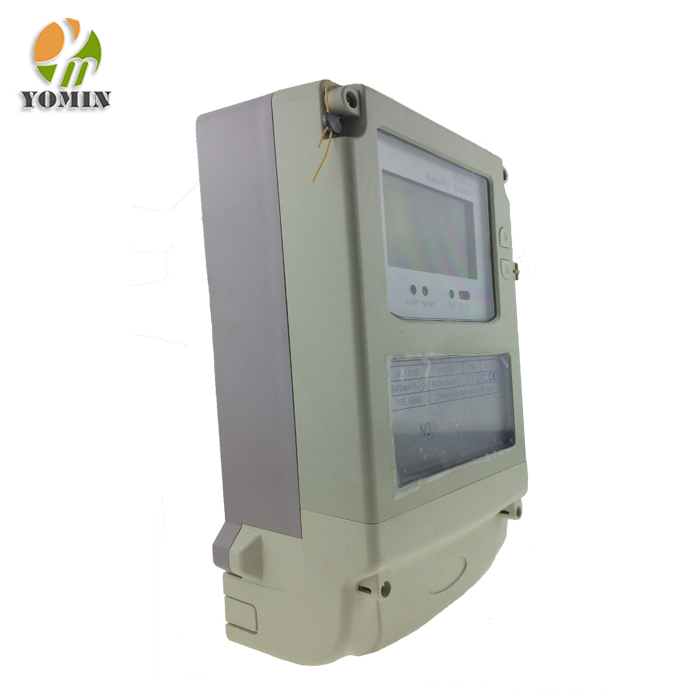

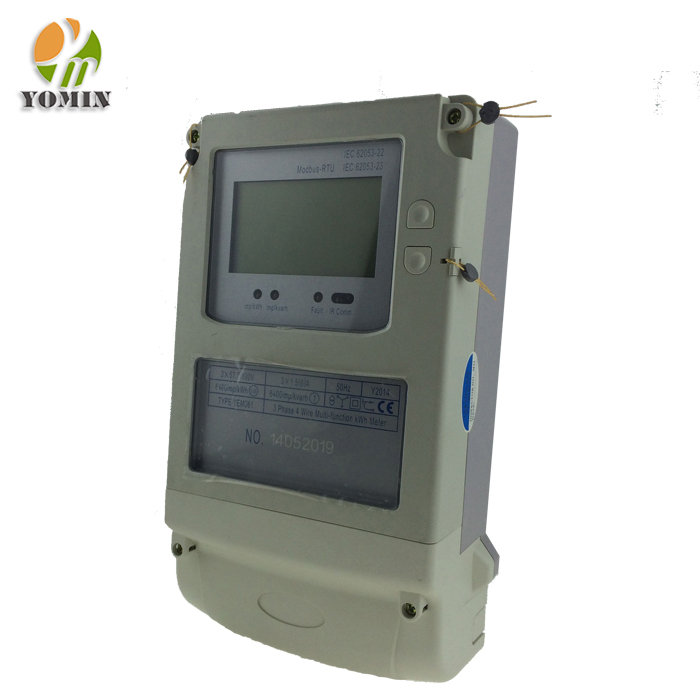

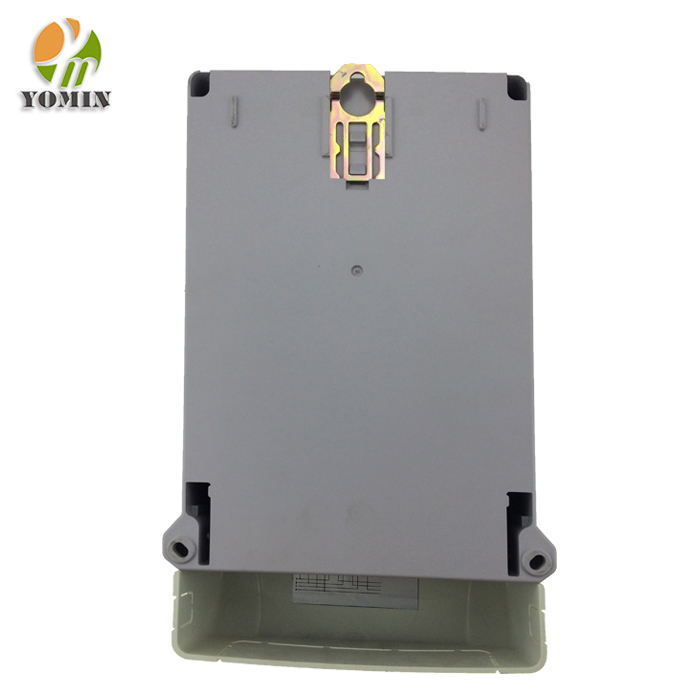

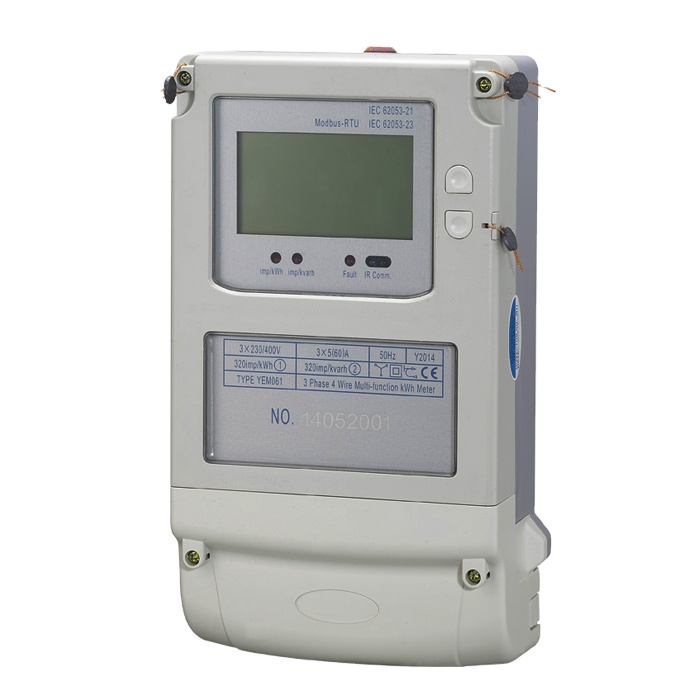

Three Phase Four Wire Digital Multifunction Electric Meter With Maximum Demand and Energy Management System
From $75.90
Energy Meters
Three Phase Four Wire Digital Multifunction Electric Meter With Maximum Demand and Energy Management System — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: Class1.0; Max. Current: 60A; Measuring Energy Range: 0-999999.9kWh. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | Class1.0 |
|---|---|
| Max. Current | 60A |
| Measuring Energy Range | 0-999999.9kWh |
| Phase | Three Phase |
| Rated Current | 15A, 5(30)A 10(60)A 20(100)A |
| Model Number | YEM061AL |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Dimensions | 262x172x81 mm |
| Display Type | Digital Only |
| Operating Temperature | -20℃~ 70℃ |
| Output Voltage | 3x127V/220V, 3x230V/400V |
| Starting Current | 0.02A 0.04A 0.08A |
| Material of case | PC (Poly Carbonate) |
| Installation | 35mm Standard DIN Rail |
| Connection Mode | Directly/ CT/ CT & PT |
| Frequency | 50HZ/60HZ |
| Tariffs | Six Tariffs |
| Standard | IEC62053-21 |
| Certificates | CE, RoHS, ISO9001 |
| Communication | RS485, Far Infrared |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
