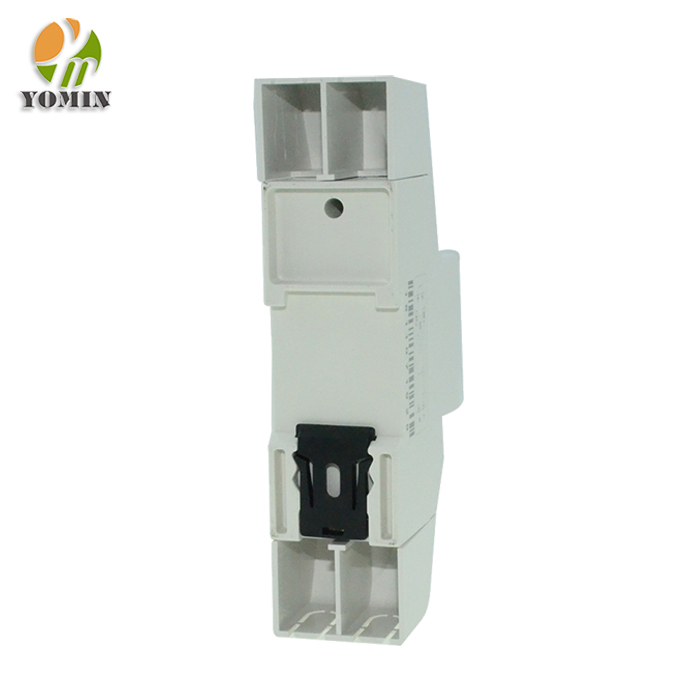

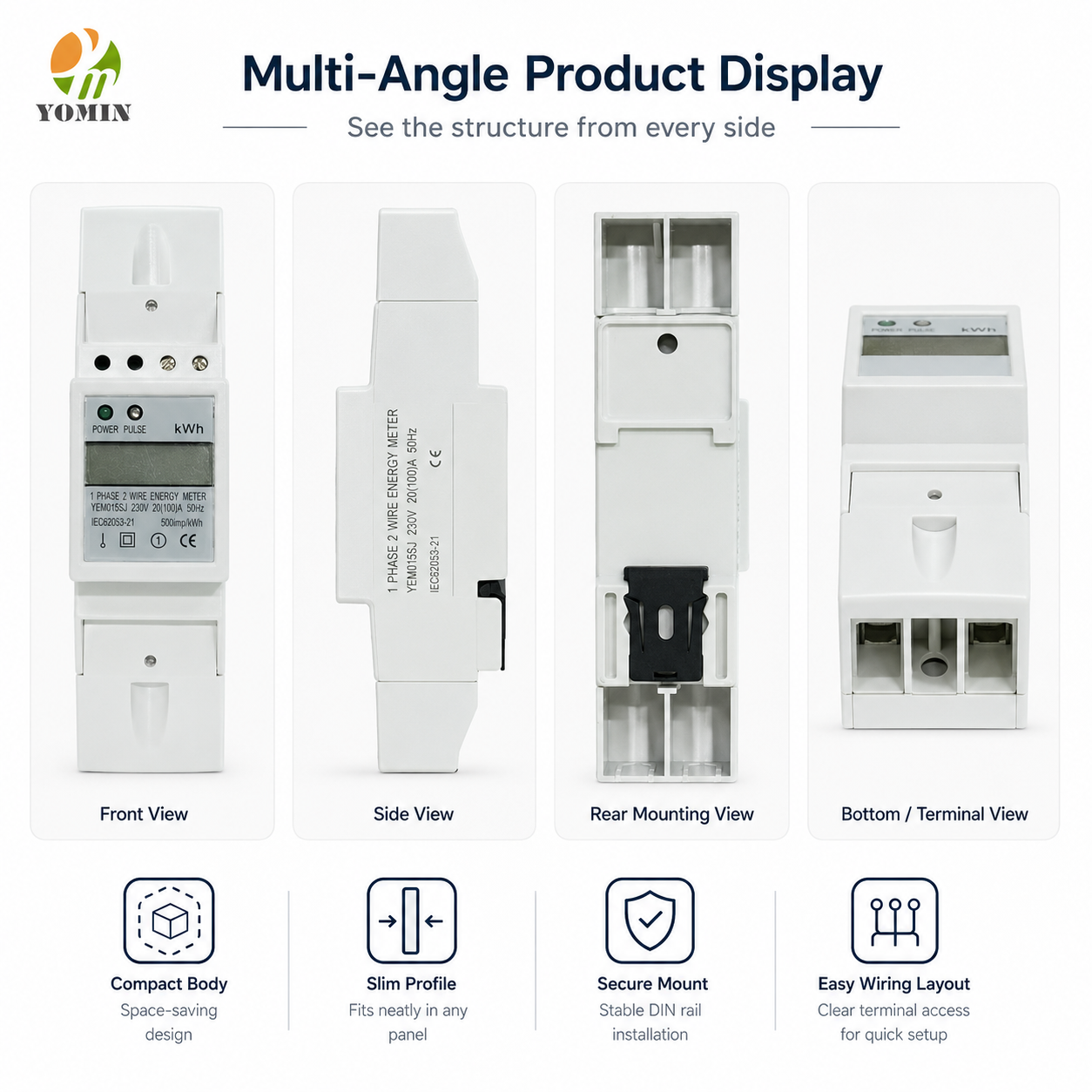

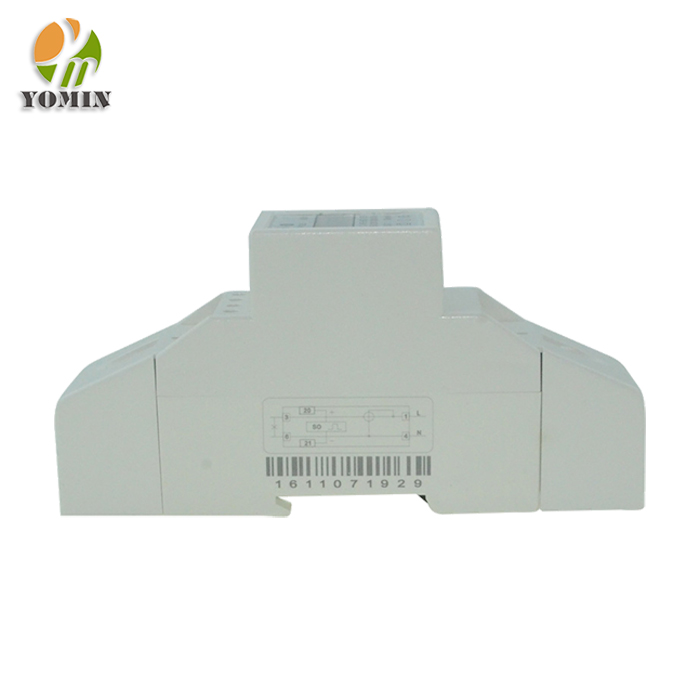

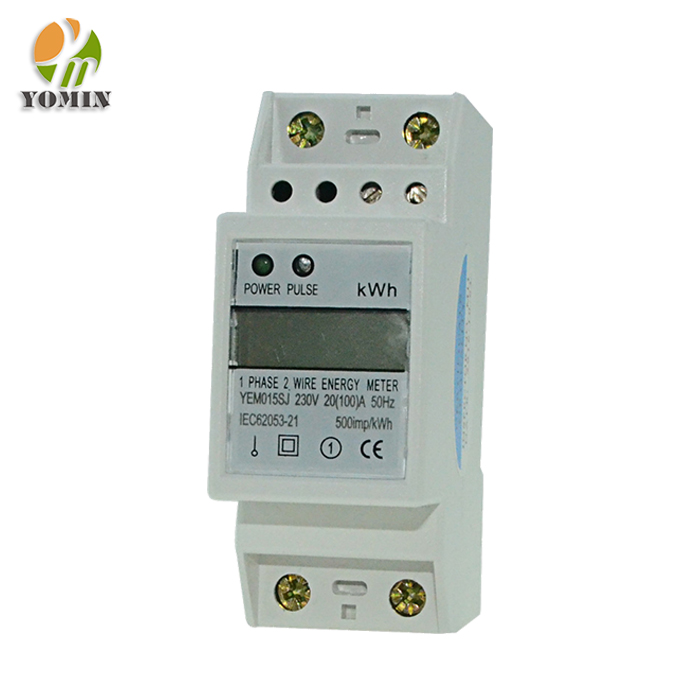

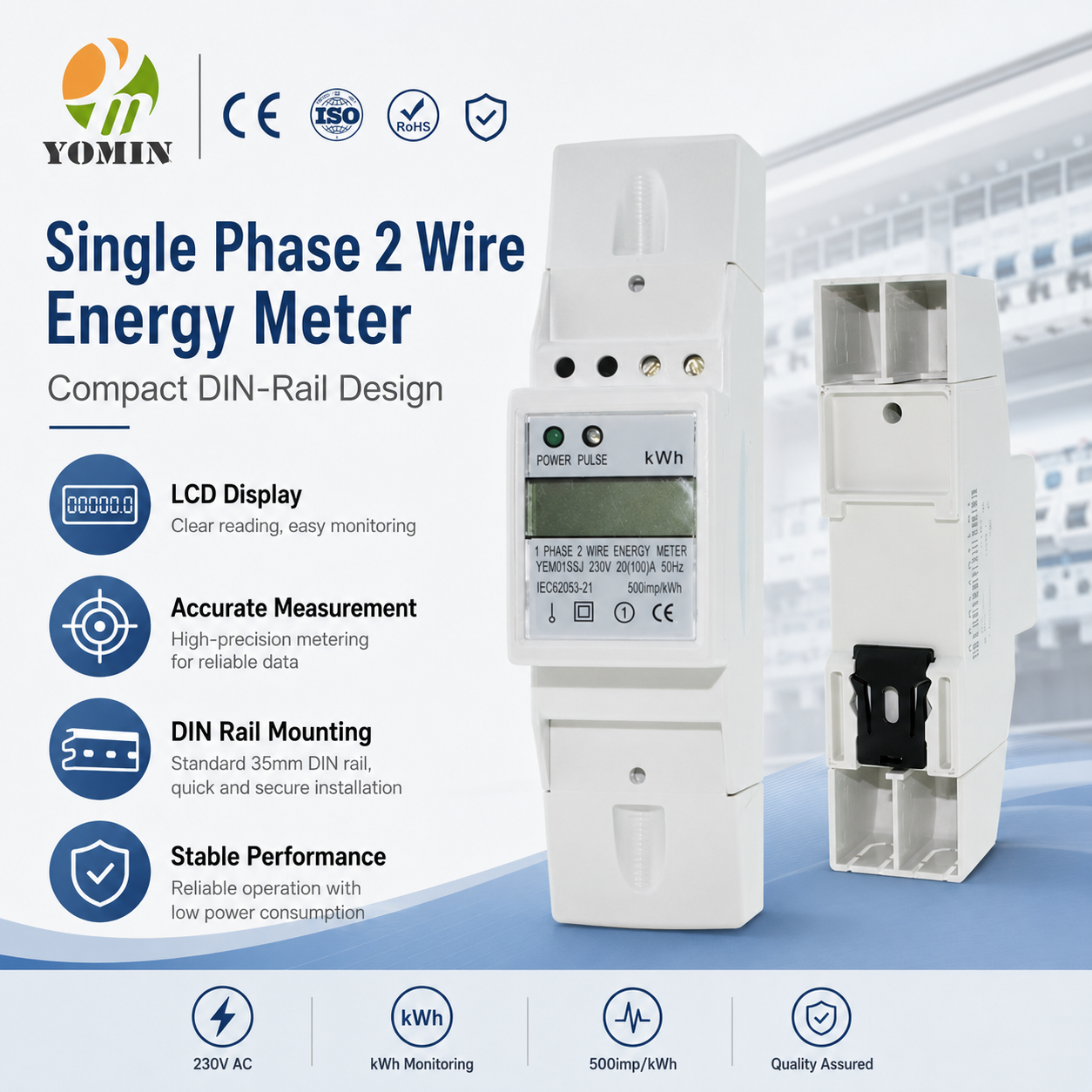

YEM015SJ Single-Phase Digital Electronic LCD Kwh Meter 2-Pole Modules DIN Rail Installation with RS485 Watt-Hour Display
From $8.12
Energy Meters
YEM015SJ Single-Phase Digital Electronic LCD Kwh Meter 2-Pole Modules DIN Rail Installation with RS485 Watt-Hour Display — precision energy meter from Yomin Electric (Zhejiang), CE & ISO 9001 certified. Key specs: Accuracy Class: Class1.0; Max. Current: 100A; Measuring Energy Range: 0-99999.9kWh. Factory-direct supply with OEM/ODM support. Contact us for pricing and availability.
🌍 Worldwide Shipping
15–25 business daysSea & Air freight
95+ countries servedGlobal distribution
Secure export packagingExport-grade cartons
30-day return policyQuality guarantee
Free shipping consultationContact our team
DDP / FOB / CIF availableAll Incoterms available
Technical Specifications
| Accuracy Class | Class1.0 |
|---|---|
| Max. Current | 100A |
| Measuring Energy Range | 0-99999.9kWh |
| Phase | Single Phase |
| Rated Current | 20A, 20(100)A |
| Model Number | YEM015SJ |
| Brand Name | YOMIN |
| Place of Origin | Zhejiang, China |
| Dimensions | 140x35x68 mm |
| Display Type | Digital Only |
| Operating Temperature | -20℃~ 70℃ |
| Output Voltage | 127V, 230V |
| Starting Current | 0.02A |
| Material of case | PC (Poly Carbonate) |
| Installation | 35mm Standard DIN Rail |
| Connection Mode | Directly |
| Frequency | 50HZ/60HZ |
| Color | White |
| Logo | Laser Engrave or Print |
| Certificates | CE,RoHS,ISO9001 |
| OEM | Avaliable |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
