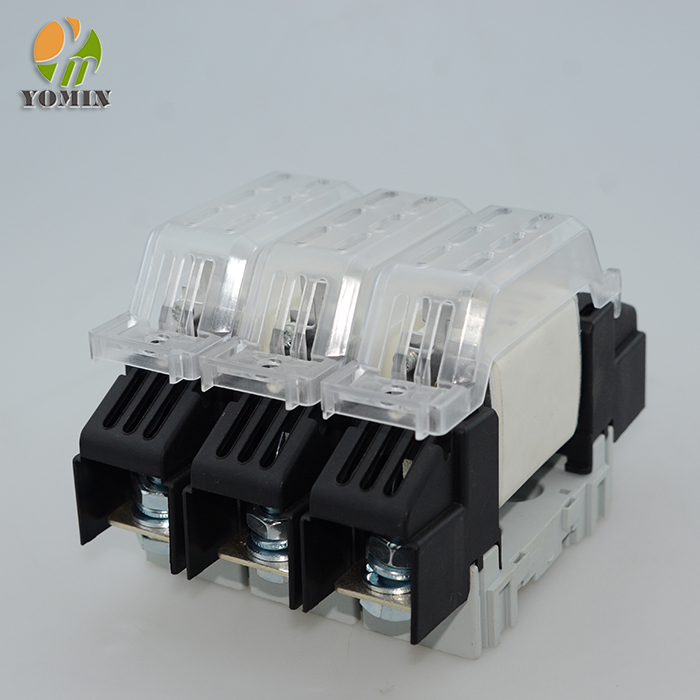

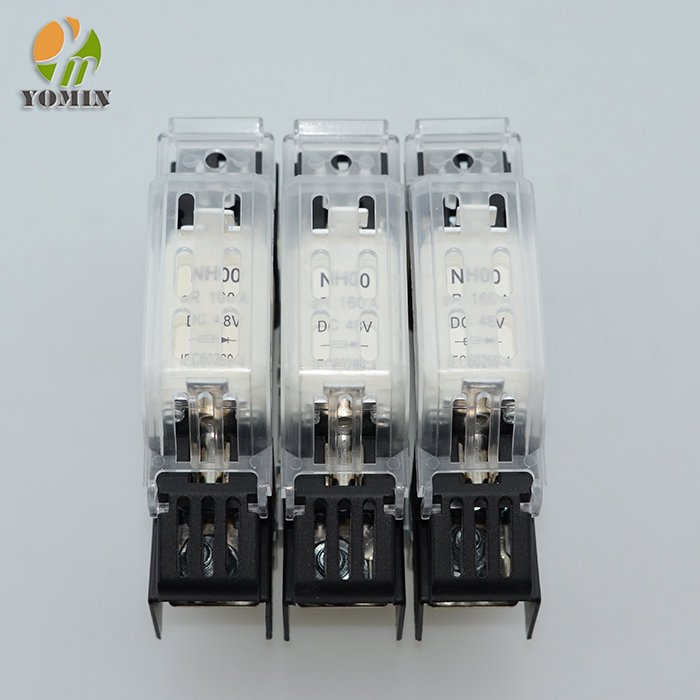

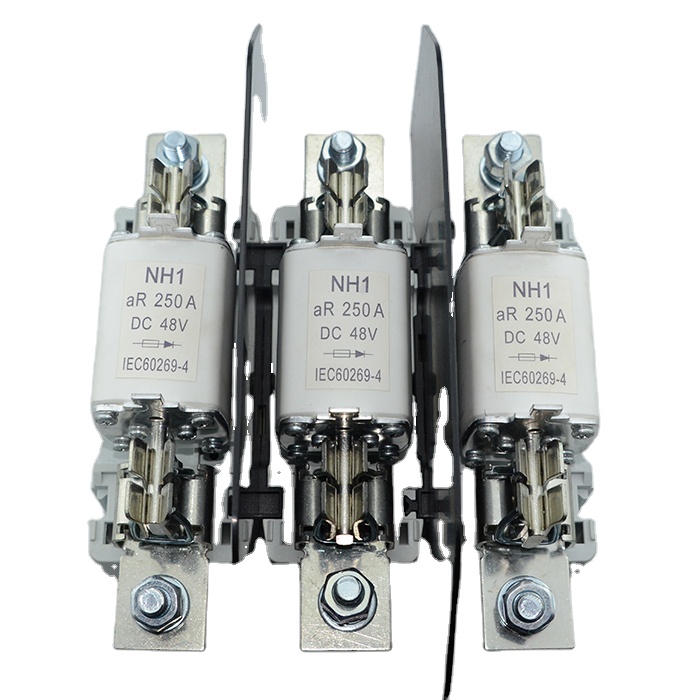

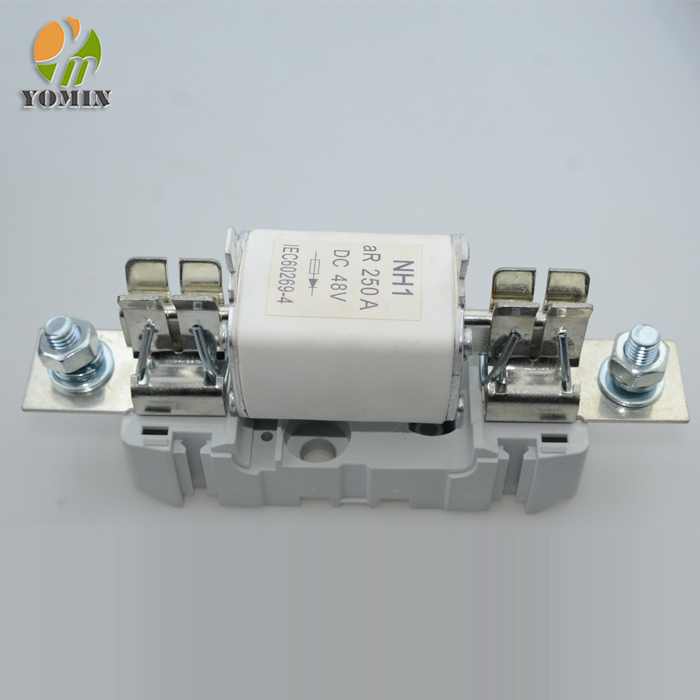

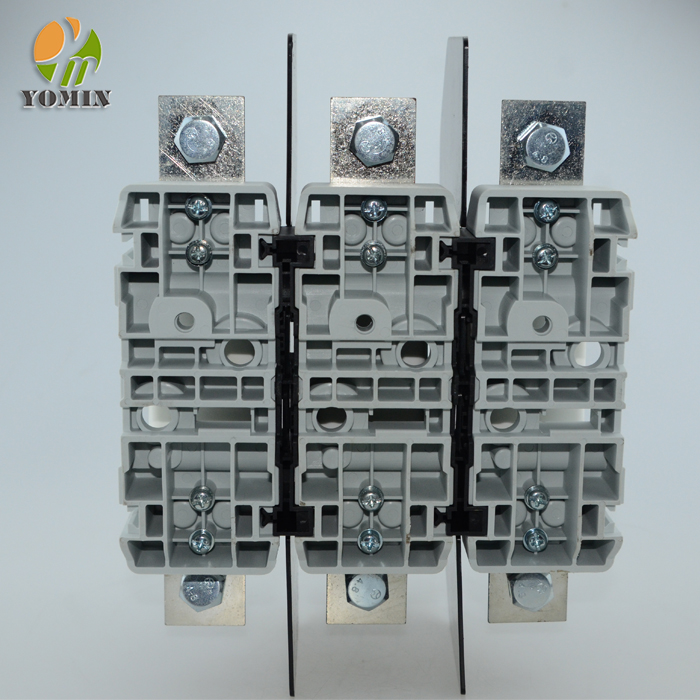

NH1 80A 125A 250A 48V PV DC Solar Fuse for Distribution Box

Service Condition on NT1 type k fuse link (CE,IEC) Voltage rating: 500/690V Current rating: up to 1250A Temperature range:-5°C to +40°C Height above sea level:≤2000m Humidity: no exceed 50% while temperature is +40°C no exceed 90% while month average temperature no exceed 25 °C Min breaking current: up to 120KA Protecting against short-circuit: type aR Protecting against motor short-circuit: type aM Standard: IEC60269, EN60269 Class of pollution: third class Installatin: Ⅲ Product Description Type Rated Voltage(V) Rated Current(A) Grading Current PCS/CTN G.W(KG) N.W(KG) MEAS(CM) FUSE LINK NT00C(NHOOC) 500-660V 4A-100A gG / gL / aR/aM 180 35*25*22.5 NT00(NH00) 500-660V 10A-160A gG / gL / aR/aM 100 43*17*23 NT0(NH0) 500-660V 6A-160A gG / gL / aR/aM 37*37*23 NT1(NH1) 500-660V 32A-250A gG / gL / aR/aM 43*28.5*22 NT2(NH2) 500-660V 80A-400A gG / gL / aR/aM 38*31.5*23.5 NT3(NH3) 500-660V 160A-630A gG / gL / aR/aM 44.5*32*20.5 NT4(NH4) 500-660V 500A-1250A gG / gL / aR/aM FUSE HAND 36.5*34*50.5 FUSE BASE NT00C(NH00C) 500-660V 160A gG / gL / aR/aM 108 38*30.5*29 NT00(NH00) 500-660V 160A gG / gL / aR/aM 108 38*30.5*29 NT0(NH0) 500-660V 160A gG / gL / aR/aM 41*36*25 NT1(NH1) 500-660V 250A gG / gL / aR/aM 41*33.5*29 NT2(NH2) 500-660V 400A gG / gL / aR/aM 46*33*22 NT3(NH3) 500-660V 630A gG / gL / aR/aM 46*26*34 NT4(NH4) 500-660V 1250A gG / gL / aR/aM HHouse Service CU T OUT FUSE 1 1 Where is your factory? Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China. 2 Are you manufacturer or business? We are manufacturer established in 2002, and have over 16 years production experience. 3. Can I ask for samples? Yes 4. What's the warranty of your products? 18 months 5. What's the lead time? Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales. 6. How about the MOQ, Payment term, Delivery port, and shipping date? 1)MOQ: 100 pcs/item based on existing packing. 2)T/T-30% deposit and 70% against copy of BL 3)L/C is also acceptable 4)Ningbo/Shanghai
