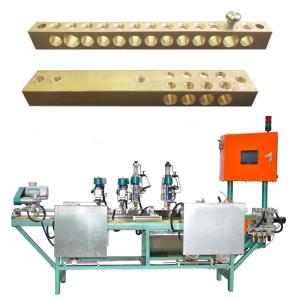

Brass earth bar machine of Brass Earth Blocks Machine factory

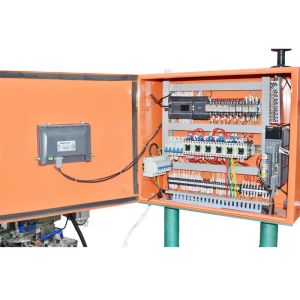

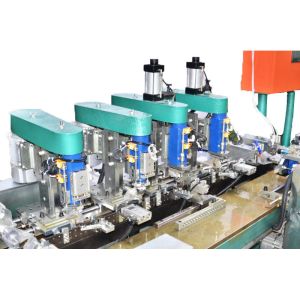

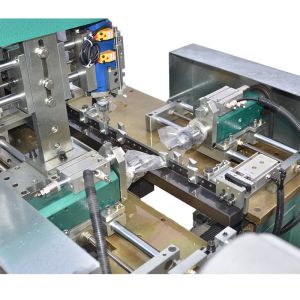

Automation brass earth bar machine / Brass Earth Blocks Machine / Earth Connector Bar, Earth Connector Machine. The equipment integrates: 1) a sidetracking large hole mechanism (max borehole diameter 10mm, spindle speed 8160/4800/2800/1640 r/min); 2) a vertical drilling mechanism with displacement (max hole 5.5mm) and a non-displacement vertical drilling mechanism (max hole 7mm); 3) displaced and non-shift wire tapping mechanisms (max tapping diameter M6); 4) a chamfering mechanism; 5) a cutting mechanism (spindle 3800 r/min, cutting motor 0.75kw, 440V, 50Hz, 2800r/min); and a distribution control box with PLC (KEYENCE), touch screen (WEINVIEW), servo drive (xinje), OMRON relays and FUJI AC contactors. Equipment size: 3100*1150*1800mm, weight 800kg.
🌍 Worldwide Shipping
Technical Specifications
| Motor Type | SERVO MOTOR |
|---|---|
| Condition | New |
| Place of Origin | Zhejiang, China |
| Brand Name | YOMIN |
| Voltage | 440V |
| Rated Power | 1800W |
| Dimension(L*W*H) | 3100*1150*1800 |
| Weight (KG) | 800 KG |
| Warranty | 1year |
| Key Selling Points | Automatic |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | None |
| Marketing Type | Other |
| Machinery Test Report | Not Available |
| Video outgoing-inspection | Provided |
| Warranty of core components | 3 years |
| Core Components | Bearing, Pump, Gear, Motor, PLC, Pressure vessel, Engine, Other |
| Type | CNC cutters |
| Name | bus bar machine |
| Cutting material | brass and aluminum |
| spindle speed | 3800 |
| voltage | 380-440v |
| power(w) | 5kw |
| cutting motor | 0.75kw,440v,50hz,2800r/min |
| After Warranty Service | Online support |
| Local Service Location | None |
| Packaging Details | wooden case |
| Port | Ningbo or Shanghai |
| Supply Ability | 500 Piece/Pieces per Year |
Applications
- Residential & commercial installations
- Industrial power systems
- Energy monitoring & management
- OEM / ODM production
- Export & utility projects
Why Choose Yomin Electric
Zhejiang Yomin Electric Co., Ltd. is a factory-direct manufacturer of precision electrical products since 1996, trusted by buyers in 95+ countries. Every unit is tested before shipping.
- ISO 9001 & CE certified manufacturing
- Factory-direct competitive pricing
- Full OEM / ODM customization support
- Strict QC — every unit tested before shipment
- Fast export logistics to 95+ countries
- Responsive technical support team
