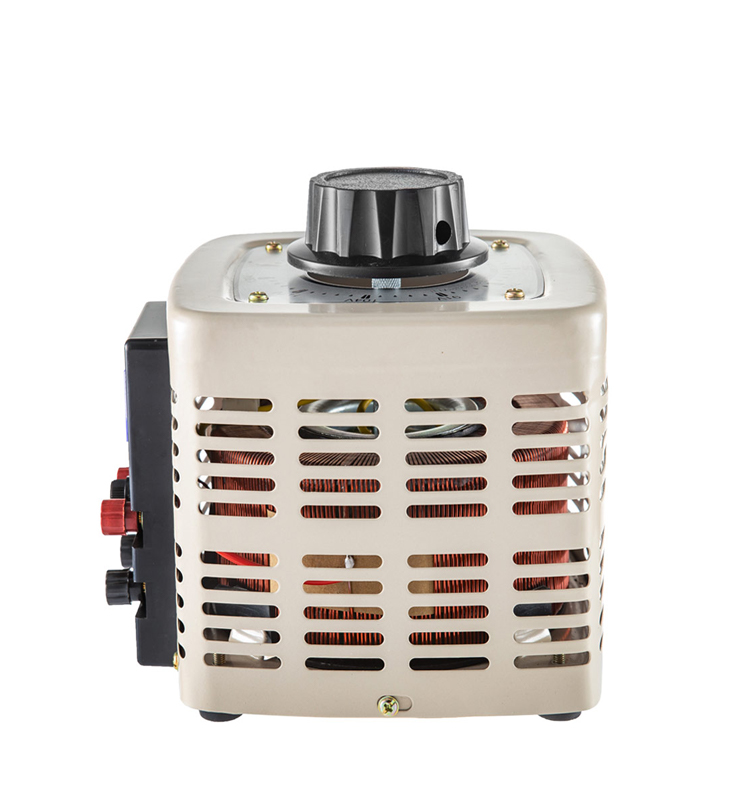

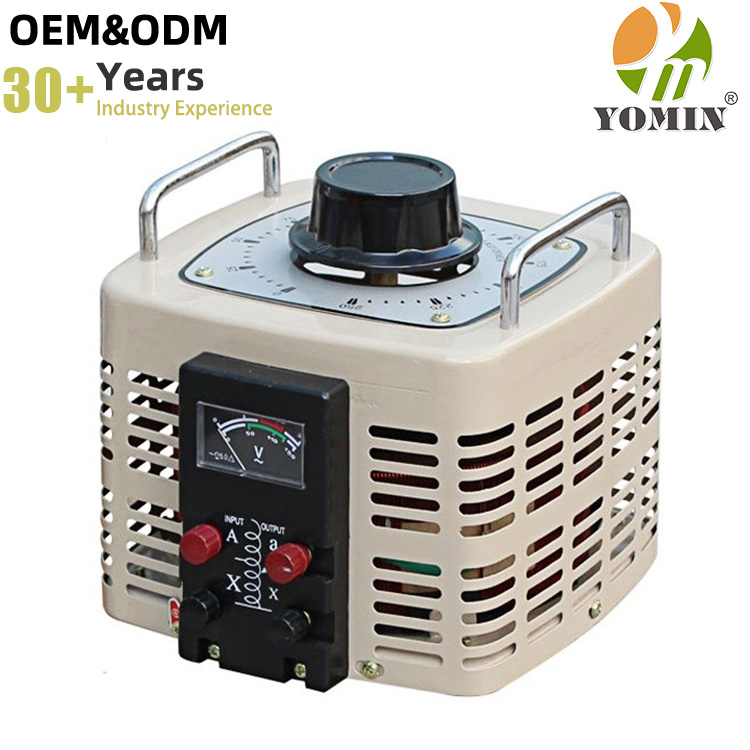

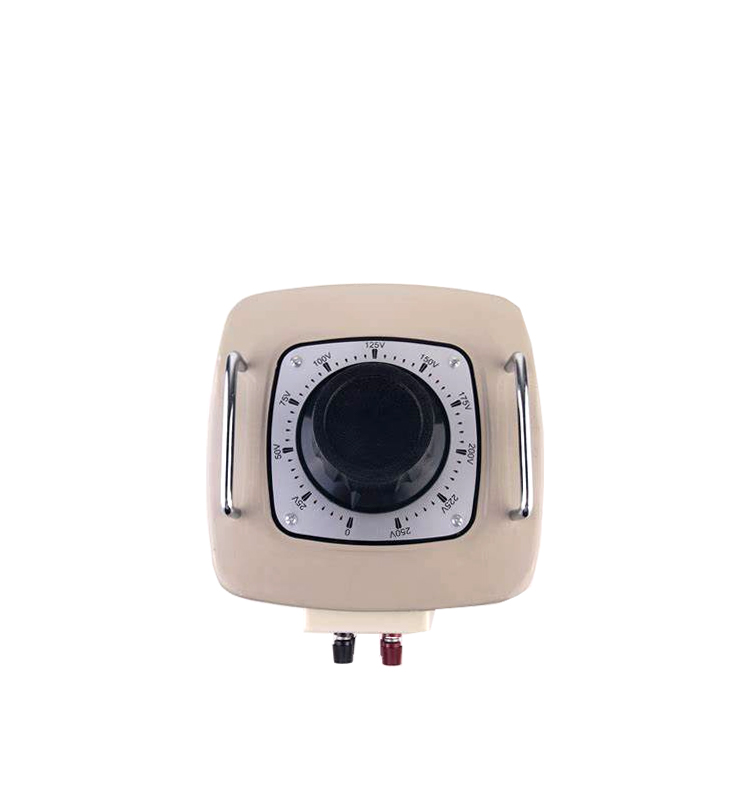

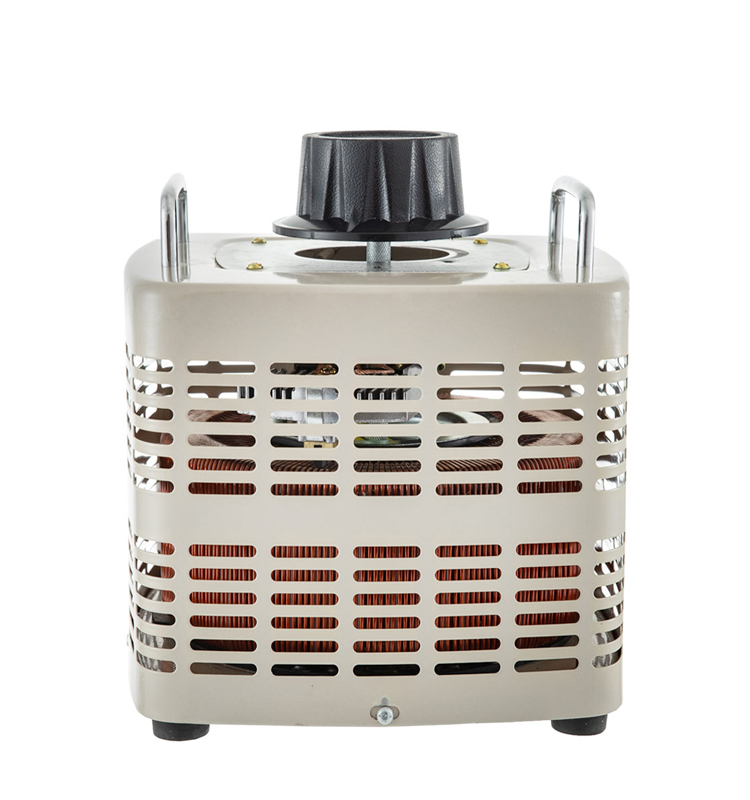

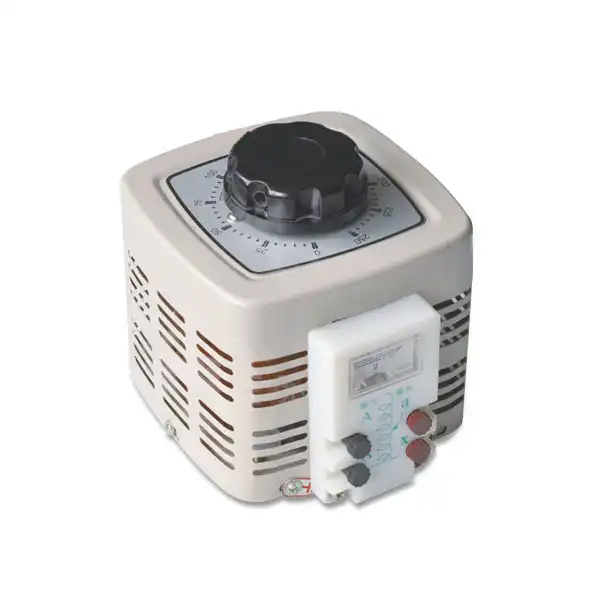

Single Phase AC 1000VA Power Analog Meter Display Contact Automatic Adjustable Variac Variable Transformer Voltage Regulators

The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications. No additional wave from distortion. The main applications are: 1. Laboratory control equipment. 2. Lighting equipment. 3. Temperature controls. 4. Motor speed control. 5. Controlling of other transformers. 6. Etc. Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator (Variac) which allows to act on the brush and achieve the desired voltage. The voltage can be smoothly varied between turns as the brush has a relatively high resistance (compared with a metal contact) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings. Item Capacity Input Voltage Output Voltage Output Current Case Qty. Model (kVA) (V) (V) (A) (Pcs.) TDGC2-0.2 0.2 220 0~250 0.8 12 TDGC2-0.5 0.5 220 0~250 2 6 TDGC2-1 1 220 0~250 4 4 TDGC2-2 2 220 0~250 8 4 TDGC2-3 3 220 0~250 12 2 TDGC2-5 5 220 0~250 20 1 TDGC2-7.5 7.5 220 0~250 30 1 TDGC2-10 10 220 0~250 40 1 TDGC2-15 15 220 0~250 60 1 * Capacity................................................................1000VA * Output Current.....................................................4A * Output....................................................................0~250V AC * Frequency.............................................................50/60Hz * Input.......................................................................220V AC * Insulation Resistance........................................>5MΩ * No. of Phase........................................................Single-Phase * Winding Material.................................................100% Copper * Max.Temperature................................................60℃ * Insulation Class..................................................Class B (130 ℃) * IP/NEMA Rating...................................................IP20 * Variable Operation...........................................Manually Operated Rotary Knob * Portable Carrying Grip......................................Provided * Pollution Rating..................................................Class III * Analog Voltmeter Display.................................Provided * Housing Material................................................Shock-Proof Metal * Voltage Setting....................................................Manual Control * Standards...............................................VDE0550, IEC204-1, IEC61588, EC439 * Sample Service...................................................Pay to Provide * Quality Assurance.............................................18Months * Item Condition.....................................................Brand-New 1. Who are we? We are based in Zhejiang, China, start from 2012,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(20.00%),North America(15.00%),Domestic Market(15.00%),Africa(10.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Energy meter,Tile leveling system,Tile install pliers,Tile Level Regulator,Glass vacuum sucker 4. Why should you buy from us not from other suppliers? (1) Advanced equipment and technology (2) Excellent management and team (3) Fast response and shipment (4) Rich market and bidding experience (5) Efficient product development and customization 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency: USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic, French,Russian, Korean,Hindi,Italian BACK HOME PAGE Contact Us
