Battery Busbar: Types, Materials and How to Choose for Battery Packs
ET Engineering Team 8 min read · August 31, 2026

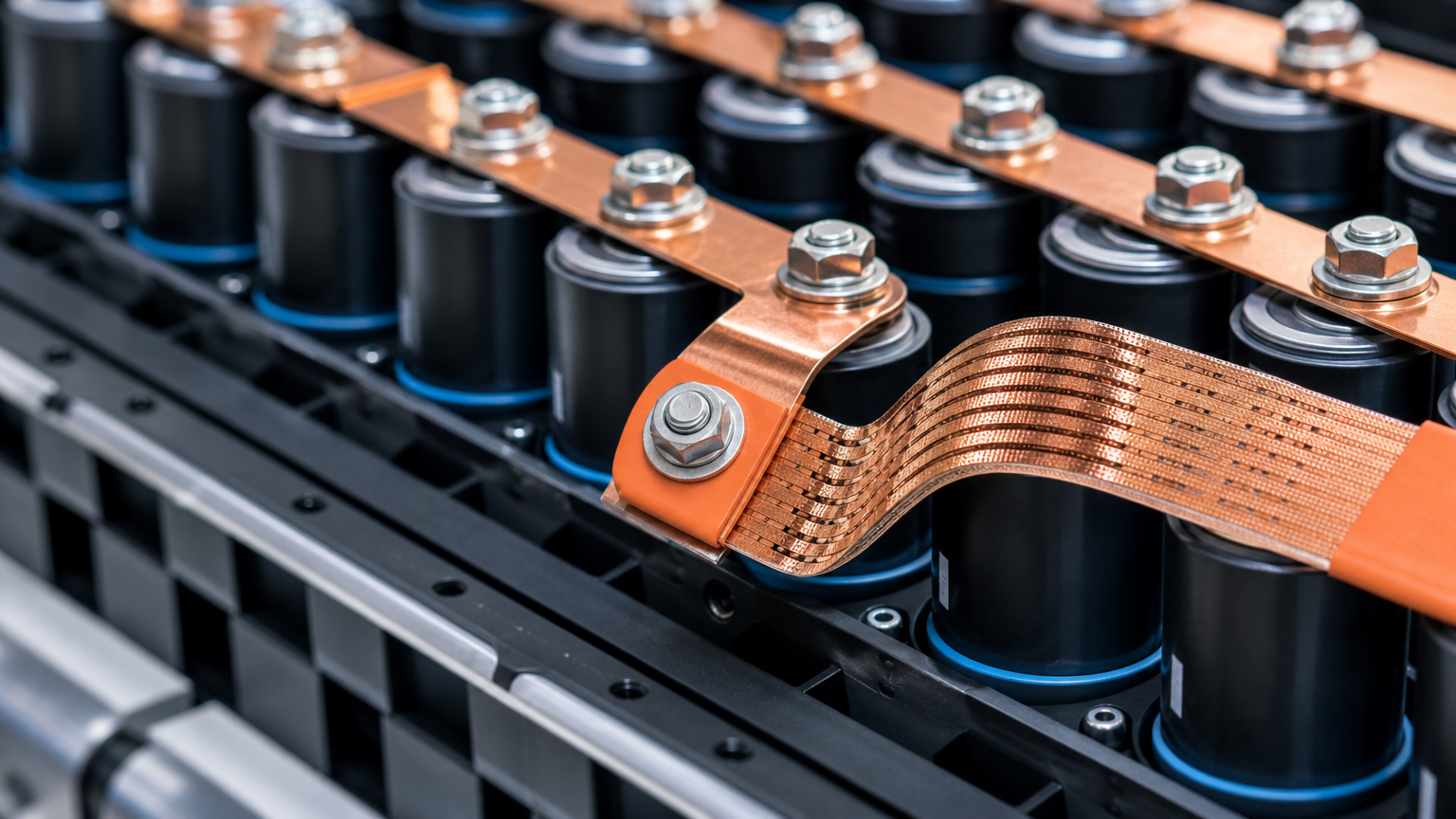

A battery busbar is the conductive bar that connects the terminals of battery cells, modules or packs — carrying current between cells and to the pack's main terminals. In EV batteries, energy storage systems (ESS) and residential storage packs, the busbar is the backbone of the electrical circuit.
If you are a battery pack manufacturer, ESS integrator or new-energy buyer sourcing busbars, this guide covers the two main types (rigid and flexible), the copper-vs-aluminium trade-off, and the specification checks that prevent hot spots and premature failure.
Rigid vs Flexible Busbars
| Factor | Rigid busbar | Flexible busbar |
|---|---|---|
| Construction | Solid bar (copper or aluminium), flat or formed | Laminated thin foils or braided conductors |
| Best for | Stable packs, module-to-module connections, high current | Vibration environments (EV), thermal expansion, awkward geometry |
| Thermal expansion | Handled by design clearances | Absorbs expansion naturally |
| Vibration resistance | Lower — rigid mounting points | High — flexes with movement |
| Typical current | High, with large cross-sections | Medium to high, laminated for capacity |
Many packs use both: rigid busbars for the main circuit, flexible connections where cells move or where welding access is tight.
Copper vs Aluminium
- Copper — roughly 60% higher conductivity than aluminium at the same cross-section, higher mechanical strength, easier welding. Heavier and more expensive. Standard for EV battery packs and high-current ESS.
- Aluminium — about one-third the weight of copper for the same conductance, lower cost. Needs larger cross-sections and careful connection surfaces (oxide layer management). Popular for stationary storage where weight matters less.
The choice is usually cost-per-kg vs weight-per-amp: EVs favour copper (and sometimes aluminium for structural parts), stationary ESS increasingly uses aluminium for cost.
Key Specifications
1. Current capacity and cross-section
Busbar cross-section (mm²) sets the current rating. Undersize it and the bar runs hot, raising resistance and degrading the pack. Confirm the rated current and allowable temperature rise with the supplier, and check the material's ampacity table.
2. Insulation and coating
Battery busbars are usually insulated (PVC/heat-shrink, epoxy powder coating) to prevent short circuits against the pack frame and adjacent cells. Confirm insulation voltage rating and edge coverage — sharp edges are where insulation fails first.
3. Joining method
Cell-to-busbar connections are made by laser welding, ultrasonic welding or bolting. The busbar material, thickness and surface finish must suit your joining process — a supplier that supports your welding method saves you a production headache.
4. Tolerances and forming
Packs are dense; busbars must hold tight dimensional tolerances (bend radii, hole positions) so assembly is repeatable. Ask about the supplier's tolerance capability and tooling for custom shapes.
5. Surface treatment
Nickel plating (copper) or tin plating improves contact and corrosion resistance at connection points. Confirm plating thickness and consistency.
Buying Checklist
- Confirm rigid vs flexible, or a mix, based on your pack's vibration and geometry.
- Choose copper or aluminium from the current/weight/cost trade-off.
- Specify cross-section from the ampacity calculation, with margin for ambient temperature.
- Confirm insulation type, voltage rating and edge coverage.
- Match surface finish and plating to your joining process (welding/bolting).
- Verify dimensional tolerances and request samples for assembly fit.
- Ask about tooling costs and lead times for custom shapes.
Yomin Electric Busbar Capability
Yomin Electric manufactures energy-storage busbars for battery applications: flexible aluminum and copper bus connectors, insulated rigid bus for ESS racks, and custom battery busbars with hole patterns for your pack design. The range spans flexible laminates for EV packs, composite/laminated busbars for rail and electric vehicles, and CCS-integrated busbar modules for portable storage. OEM tooling and custom forming are available factory-direct. For general distribution design, our busbar design basics article covers material and sizing fundamentals.
FAQ
Why use a flexible busbar in an EV battery?
EV packs vibrate and expand with temperature. Flexible laminated busbars absorb that movement, preventing stress fractures at cell terminals and improving pack life.
Copper or aluminium for home storage?
Stationary ESS often uses aluminium for cost and weight savings; copper remains the choice where space is tight and currents high. Both work — match the busbar to the pack's current and budget.
Can busbars be custom-made for my pack design?
Yes. Battery busbars are almost always custom: hole patterns, bend shapes, insulation and plating follow your pack layout. Work with a manufacturer that offers tooling for custom forms.
How is a busbar connected to battery cells?
Typically by laser or ultrasonic welding for permanent joints, or bolted connections where service access is needed. The busbar surface finish must match the chosen method.
Conclusion
Battery busbars are a small part with a big job: carrying the pack's full current reliably for thousands of cycles. Choose rigid or flexible by your vibration and geometry needs, copper or aluminium by the weight/cost balance, and verify cross-section, insulation and joining compatibility before ordering. Yomin Electric supplies custom rigid and flexible busbars for EV, ESS and residential packs, factory-direct with OEM tooling. Request a quotation with your pack drawing and our engineers will confirm the right busbar within 24 hours.
