Battery and ESS Connectors: Stackable, Single-Pole and MSD Explained

Every energy storage system has one moment where all its current passes through a small plastic-and-metal interface: the connector. Choose it well and the system assembles fast, services safely and survives vibration. Choose it poorly and you inherit heat, arcing risk and warranty claims. This guide walks the three connector families we manufacture — stackable signal-plus-power connectors, single-pole high-current connectors, and fused manual service disconnects (MSD) — and how to pick between them.

The three families

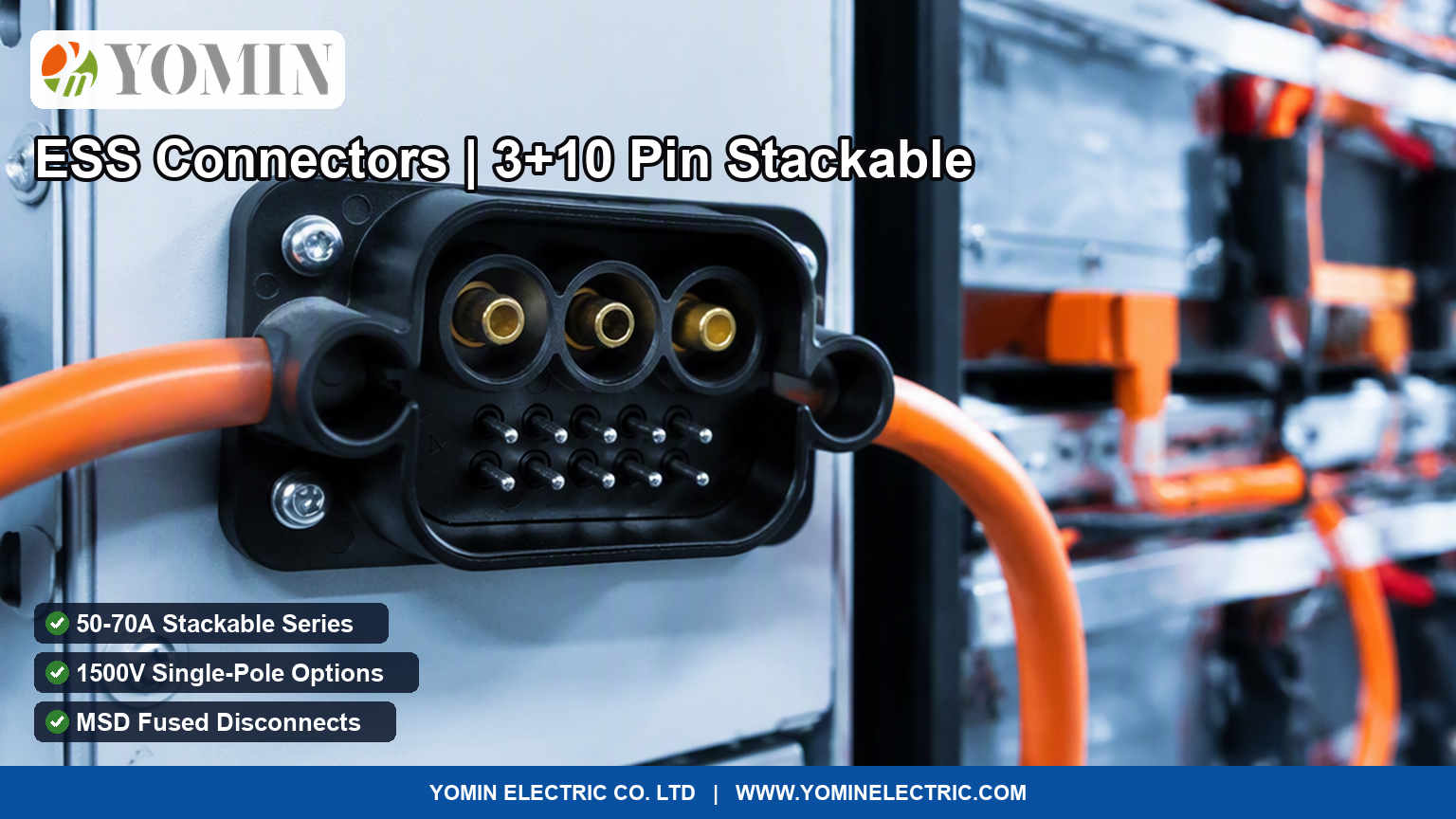

• Stackable connectors (3+10 pin style): three power poles plus a row of signal pins in one housing. They carry module current and the BMS signals beside it, and they stack — the same housing repeats along a module face, which is why pack builders like them.
• Single-pole connectors (120-500A, up to 1500V DC): one conductor per housing, colour-coded, touch-safe. Used for pack-to-inverter and cluster links where each pole runs separately.
• MSD (manual service disconnect) with fuse: a plug that both isolates and protects. Pulling it opens the circuit and removes the fuse link from the path — the standard first step before any service work.

Choosing by current and voltage

Start from continuous current at the system's hottest operating point, not from a nominal figure. A connector rated 70A at 25°C ambient carries less in a sealed pack at 60°C; ask for the derating curve. Voltage matters twice: as the insulation rating of the housing (1500V DC systems need connectors rated accordingly), and as the basis for creepage and clearance inside the connector body. For systems above 60V DC, touch-safe (IP2X / finger-safe) contacts are not optional — they are the difference between a serviceable pack and a hazardous one.

Signal pins: the quiet requirement

Modern packs interlock: the BMS must know a connector is seated before contactors close. That is what the "+10" pins in a 3+10 housing do — interlock loops, temperature sensing, cell-voltage taps. When you specify, state which signals ride along and their pin assignment; a connector ordered without the signal pins cannot be retrofitted later.

Vibration, sealing and mating cycles

• Vibration: mobile and rail packs need connectors qualified to the relevant vibration profile; the latch design matters more than the housing material.
• Sealing: IP67 or IP6K9K where the pack sees wash-down or outdoor duty.
• Mating cycles: a service disconnect that will be pulled fifty times over a vehicle's life needs a different contact system from a factory-mated joint that is connected once.

How connectors relate to busbars

Connectors and busbars are complementary: the laminated or flexible busbar carries current inside the pack, and the connector is the demarcation point where a subassembly can be separated. A good design minimises connector count inside the pack (busbars are cheaper and more reliable per amp) and concentrates disconnects exactly where service access is needed.

Ordering checklist

• Continuous current and ambient temperature; request the derating curve.
• System voltage and required insulation rating.
• Pole count and signal pin assignment.
• Sealing class and vibration profile.
• Keying and colour coding to prevent mis-mating.
• Whether an MSD with fuse is required, and the fuse rating.

We manufacture all three families — stackable 50-70A connectors, single-pole 120-500A 1500V connectors and fused MSD units — with keying, colour coding and sealing to your specification. Send the circuit diagram and the environmental profile; we return the connector set that matches it.
