Laminated Busbars: Construction, Applications and How to Specify One

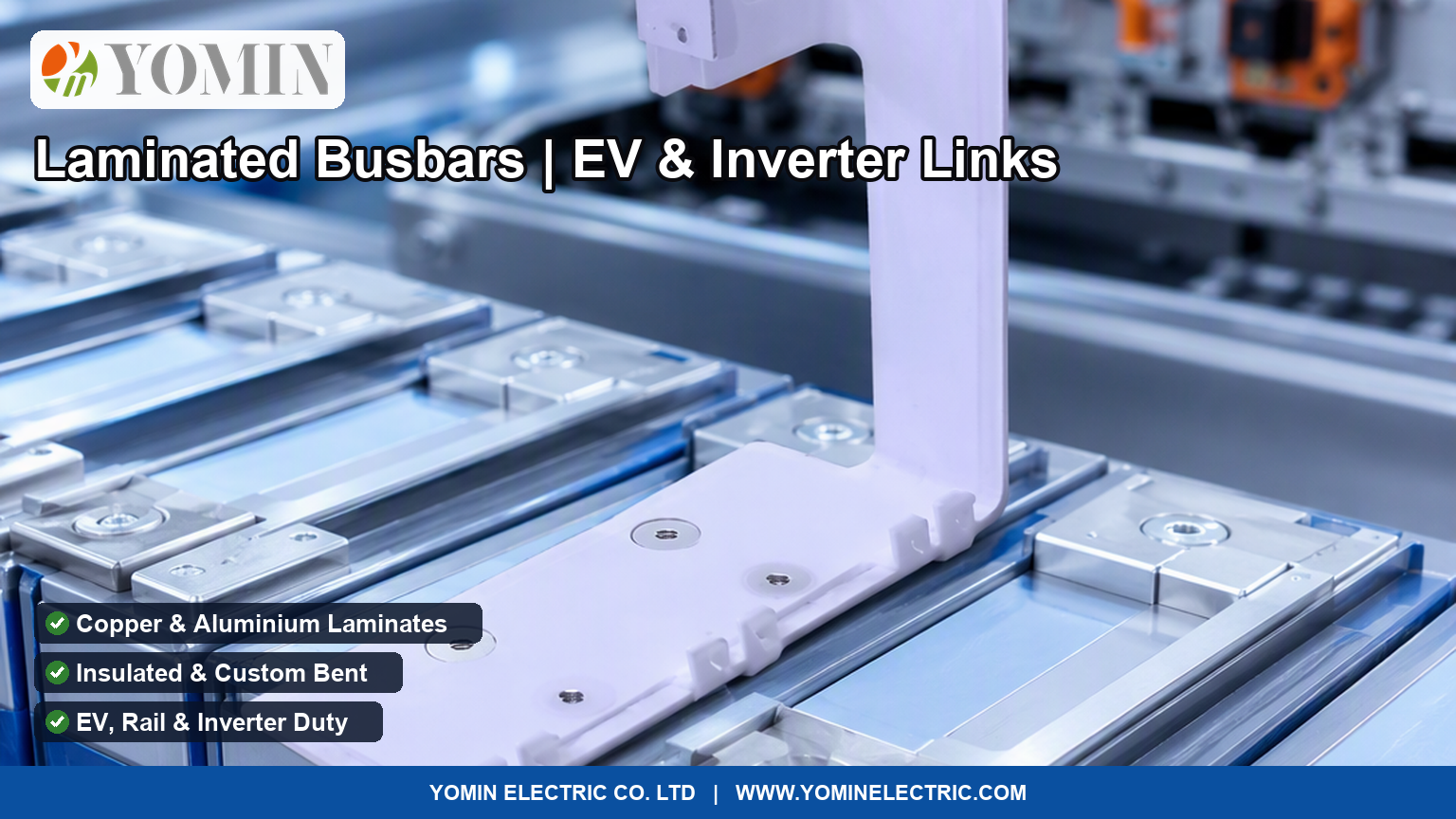

A laminated busbar is a stack of thin copper or aluminium conductors, bonded or held together and wrapped in an insulation system, that carries high current in a compact, predictable package. It sits between two familiar worlds: stiffer and more defined than a flexible braided link, more compact and better controlled than the rigid bar it often replaces. This guide explains how they are built, where they win, and what to put on a purchase order.

How a laminated busbar is built

The core is a set of parallel laminations — typically copper or aluminium foils or thin strips — stacked to reach the required cross-section. Between and around them sits the insulation: epoxy powder coating, dipped insulation, or a fully laminated film system that bonds the stack into one solid body. Terminals are then formed by stamping, machining or welding: flat pads with bolt holes, welded studs, or pressed lugs. Because the stack is thin and wide, a laminated busbar delivers the same ampacity as a bulky bar in far less space, and its flat geometry keeps inductance low — which is exactly why inverters and battery packs prefer it.

Where laminated busbars win

• EV and ESS battery packs: cell-to-cell and module-to-module links where space is tight and vibration is constant; the laminated body absorbs movement that would fatigue a rigid bar.
• Inverters and converters: low-inductance DC links protect switching devices from voltage spikes during commutation.
• Rail traction and charging stations: high continuous current in confined cabinets.
• Switchgear and UPS: where a bent, insulated link replaces several cables and their terminations.

Laminated vs rigid vs flexible: choosing honestly

Each technology has a home. Rigid bar is cheapest for straight, accessible runs. Braided flexible links are best where large relative movement occurs — see our battery busbar guide for the pack-level comparison. Laminated busbars earn their place where you need a defined shape, controlled insulation and low inductance in limited volume. If your connection is straight and static, do not pay for lamination; if it must bend, survive vibration and stay insulated, lamination is usually the right answer.

Specification fields that make an order unambiguous

• Conductor: copper or aluminium, laminate thickness and total cross-section (or rated current with a stated temperature rise).
• Insulation system: epoxy powder, dipped, or laminated film; rated voltage and dielectric test level.
• Creepage and clearance: the distances your application's pollution degree requires.
• Geometry: bend radii, hole positions and tolerances — supply a drawing; laminated parts are custom by nature.
• Termination finish: tin or nickel plating on contact areas.
• Tests: dielectric withstand, and dimensional report against your drawing.

Common ordering mistakes

• Specifying current without stating ambient temperature and allowed rise — ampacity is a thermal statement, not a number.
• Ignoring bend direction: laminations bend easily one way and delaminate if bent the wrong way.
• Forgetting the insulation thickness when checking clearance to neighbouring parts.
• Ordering copper where aluminium with a larger section would serve — weight and cost differ sharply in packs and rail cars.

Where YOMIN fits

We produce custom laminated busbars in copper and aluminium with epoxy, dipped or laminated insulation, stamped or machined terminals, and plating to your contact requirement — alongside the braided flexible links and rigid bars that complete a pack or cabinet. Send the drawing, the continuous current and the insulation level; we return a manufacturable proposal with test levels stated.
