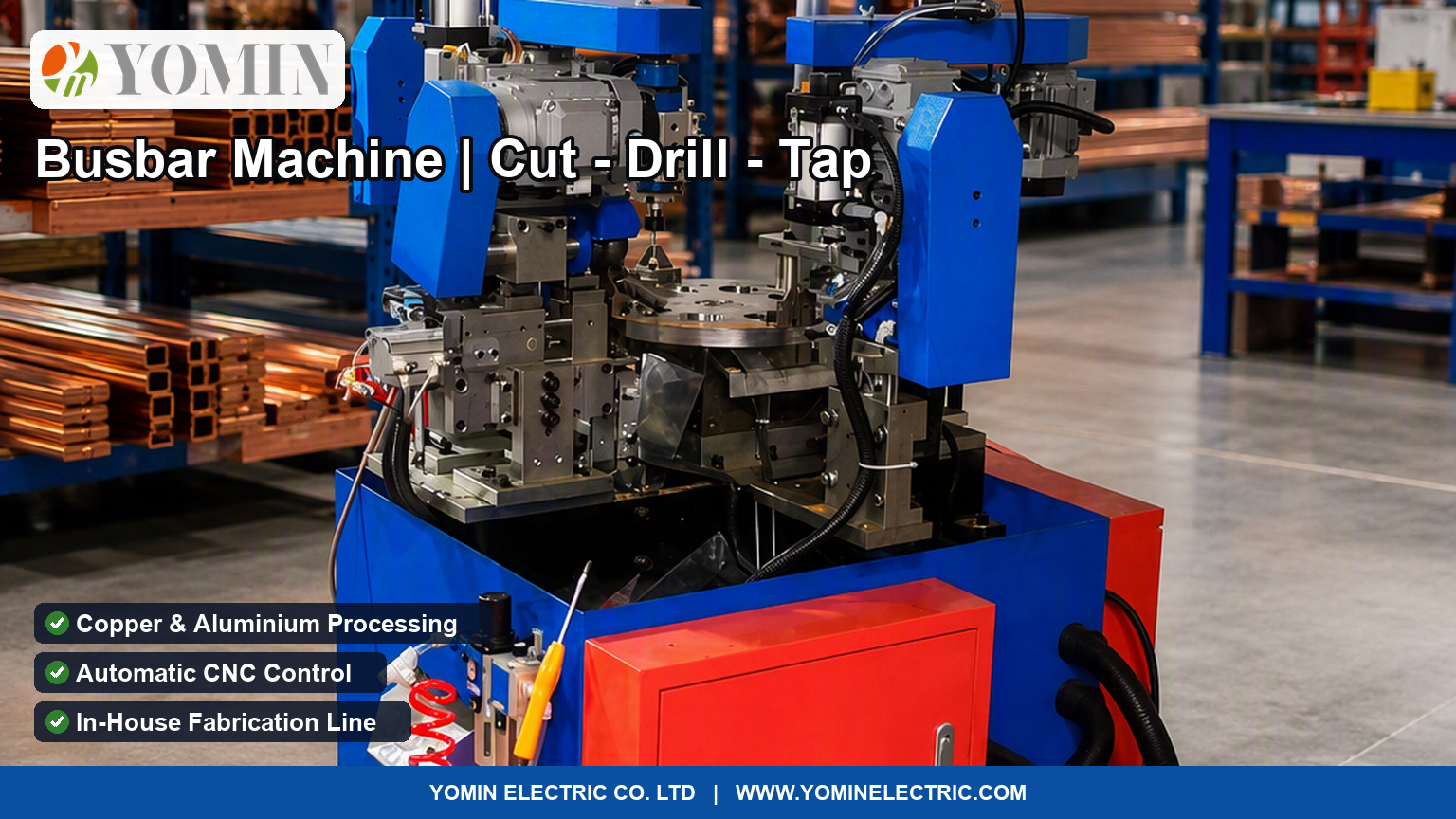

Busbar Bending & Fabrication Machines: What to Look For Before You Buy

Direct answer: a busbar processing machine performs some combination of cutting, punching, bending, drilling, tapping and chamfering on copper or aluminium bar. Choose one by the maximum bar cross-section you need to process, which operations you want in a single station, and whether your volume justifies CNC.

We write this from operating experience rather than a catalogue. Yomin runs its own metal deep-processing line to fabricate the busbars we supply, so the failure modes below are ones we have actually met on the floor.

The Four Core Operations

Bend Radius: The Constraint People Learn the Hard Way

Copper bar work-hardens as it bends. Force too tight a radius and the outer fibre exceeds its elongation limit — you get microcracking, sometimes visible, sometimes not until the joint has been thermally cycled in service.

A general working rule is a minimum inside bend radius of roughly 1× to 2× the bar thickness, increasing with thickness and with harder tempers. Soft-annealed copper tolerates tighter bends than half-hard. If a design demands a tighter radius than the material allows, the answer is a different joint layout or a flexible busbar — not more force.

This is exactly why flexible busbars exist for connections that must absorb movement: braid handles what rigid bar cannot.

Sizing the Machine

1. Maximum bar cross-section. Width and thickness together, not just one. A machine rated for 120 mm width may not handle 120 × 10 mm.
2. Material. Copper needs materially more force than aluminium at the same section. Size on copper if you process both.
3. Tonnage. Punching force scales with hole area and material thickness. Under-specified tonnage produces poor holes and shortens tool life.
4. Throughput. A three-station combined machine handles moderate volume well; high volume justifies CNC with automatic positioning.
5. Tooling changeover time. On mixed-batch work this often matters more to real output than raw cycle speed.

Manual vs Combined vs CNC

An honest note on CNC: it pays back on repeat parts, not on one-offs. A shop doing constant custom single pieces may get more real output from a good combined machine plus a skilled operator than from a CNC that spends its day being reprogrammed.

Quality Checks That Prevent Field Failures

• Deburr every cut and hole. A burr on a contact face concentrates current and creates a hot spot.
• Chamfer hole edges. Protects both the bolt and the joint face.
• Inspect bend outer radius for microcracking — especially on thicker bar.
• Clear all swarf. Conductive debris in an enclosure is a fault waiting to happen.
• Keep contact faces flat and clean. Joint resistance is decided here, and joint resistance becomes heat.

Safety

These are high-force machines. Guarding, two-hand controls and an accessible emergency stop are not optional extras. Copper bar is also heavy in long lengths — plan material handling before installation, not after the first back injury.

FAQ

Can one machine cut, punch and bend?

Yes, combined three-station machines are standard for panel shops. Verify each station's individual capacity, not just the headline rating — stations are often rated differently.

Copper or aluminium — does the machine care?

Yes. Copper requires more force. Specify against copper if you handle both, or you will find the machine marginal exactly when you need it.

What causes cracking at the bend?

Too tight a radius for the thickness and temper, or already work-hardened material. Increase the radius, or use annealed stock.

Does Yomin sell these machines?

We operate a metal deep-processing line and supply brass and busbar terminal machinery, including automatic cutting, drilling, tapping and chamfering equipment. Send your bar dimensions and volume and we will confirm what fits.

Talk to the Factory

Zhejiang Yomin Electric fabricates busbars in-house and supplies busbar and terminal processing machinery. Browse the range or tell us your maximum bar section, material and monthly volume for a factory-direct recommendation within 24 hours.
