Standoff Insulators: Creepage, Inserts and the EL-600 Class

Every busbar in a panel is only as safe as the insulator holding it away from the enclosure. Standoff insulators — the ribbed epoxy posts with a brass threaded insert — are small, cheap, and structurally decisive: they carry the mechanical load of the busbar while providing the creepage and clearance the installation voltage demands. This guide explains what the ribs actually do, how the EL-600 class is applied, and how to specify standoffs without under-engineering the one part nobody thinks about.

What the ribs do: creepage, not just height

A smooth cylinder between a live bar and a grounded frame withstands voltage according to the straight-line distance — the clearance. But in real panels, dust and condensation settle on the surface, and surface tracking, not air breakdown, is what eventually fails. The ribs (sheds) stretch the surface path between the two electrodes into a much longer creepage distance, and they interrupt water bridges so a film of condensation cannot complete a conductive path. This is why a ribbed standoff of a given height outperforms a smooth spacer of the same height by a wide margin.

Reading a standoff: EL-600 class as an example

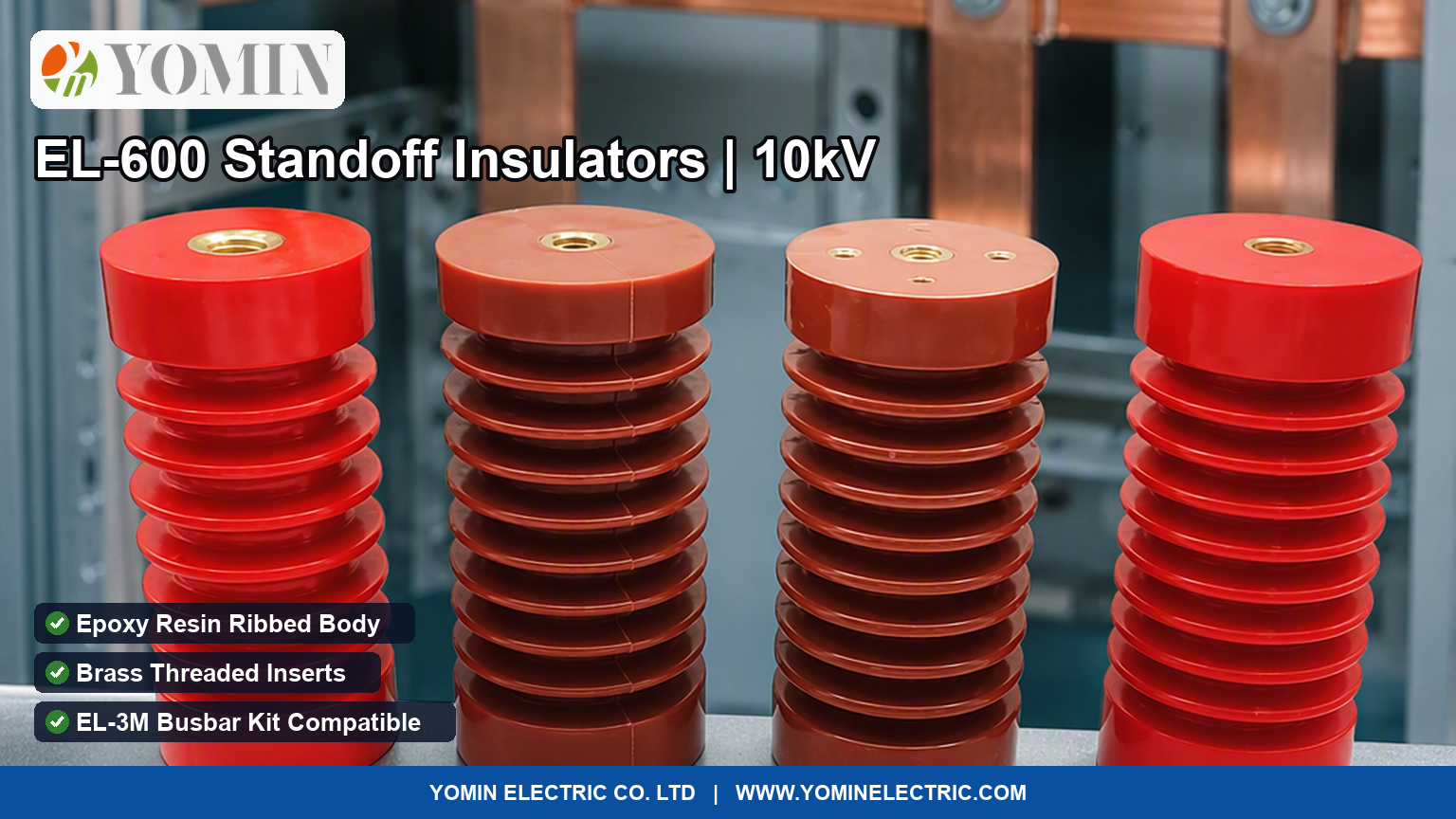

Our EL-3M busbar kit is supported by EL-600 insulators rated for 10 kV service: an epoxy resin body, ribbed for creepage, with a brass threaded insert moulded in for the mounting stud. When you evaluate any standoff, four numbers matter:

• Rated voltage — the system voltage the insulation system is designed around.
• Creepage distance — longer is better in polluted or humid environments.
• Mechanical rating — the insert must take the busbar's weight plus short-circuit electrodynamic forces, which can be violent at kA fault levels.
• Thermal class — the epoxy must sit comfortably above the busbar's operating temperature with margin.

The brass insert deserves its own line in any datasheet review. A poorly bonded insert rotates under torque or pulls out under fault force, and the failure looks electrical but is mechanical. Moulded-in inserts with adequate engagement length are the difference between a support and a latent fault.

Where standoffs live in a real installation

Typical positions: supporting incoming busbars in distribution panels, spacing vertical risers, anchoring neutral and earth bars away from the enclosure, and — in medium-voltage compartments such as the ones our potential transformers sit in — maintaining the clearances the insulation coordination demands. In MV work the ribbed profile you see on our insulators is the same logic scaled up: more sheds, longer creepage, higher withstand.

Specification checklist

• System voltage and pollution environment (indoor panel vs. humid coastal vs. dusty industrial)
• Required creepage distance per your standard or utility spec
• Insert thread size and engagement, plus torque the installer will apply
• Busbar size and fault level the support must survive electro-dynamically
• Mounting orientation — some standoffs are rated differently in tension vs. compression

EL-600 insulators and the EL-3M busbar system they support are available with full dimensional drawings on request. If your busbar run also needs flexible links at the ends, our flexible busbar guide covers the matching parts.
