DIN Rail vs Panel Meters: Which Installation Is Right for You?
Choosing between a DIN-rail meter and a panel (flush-mount) meter is one of the first decisions in any metering project — and getting it wrong means reworking the panel. The two form factors serve different installation environments, wiring methods and user groups. Here is what actually differs, and how to pick the right one.
DIN-Rail Meters: The Modular Workhorse

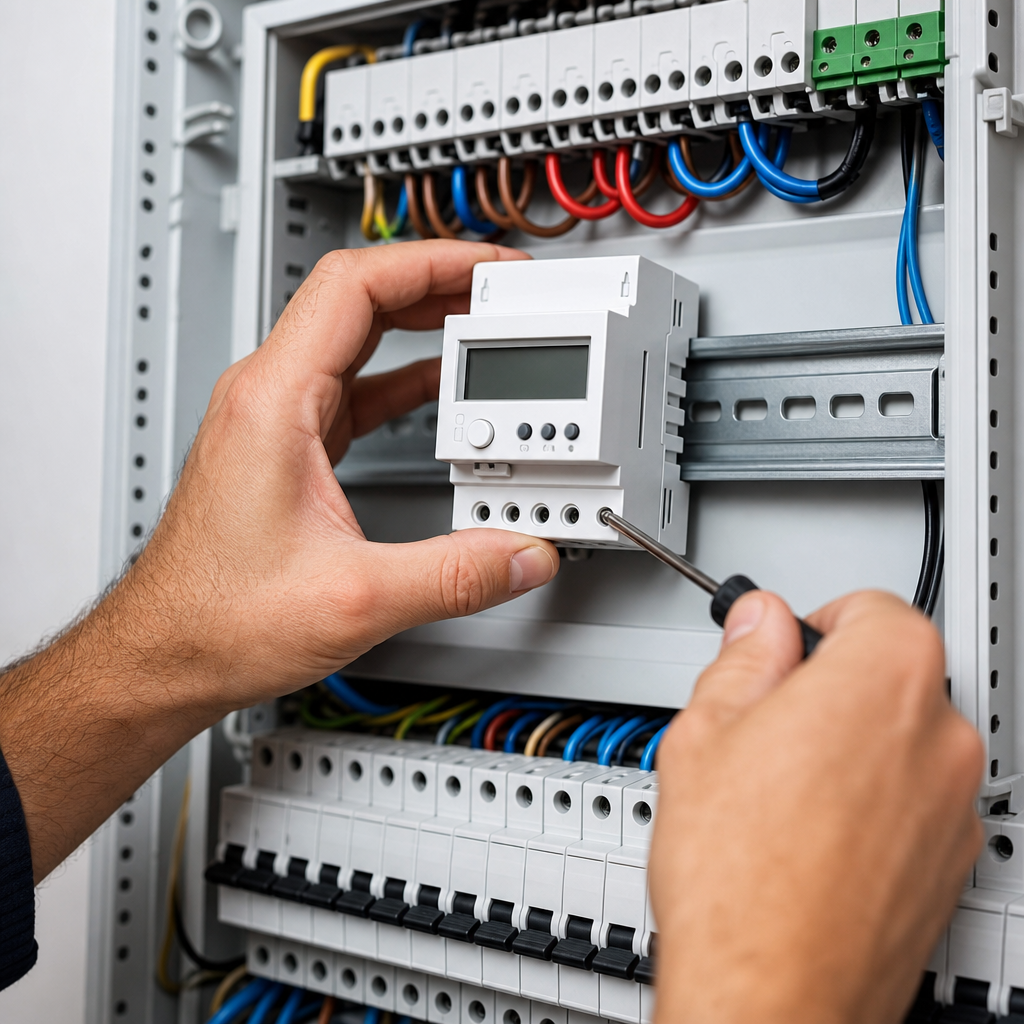

A DIN-rail meter clips onto a standard 35 mm mounting rail inside a distribution board or meter cabinet. It is compact, modular, and installs in seconds without drilling. DIN-rail meters dominate residential, commercial and light industrial metering because they live inside standard enclosures and can be stacked with breakers, contactors and CT modules.
- Installation — snap onto the rail, wire the terminals, done. No panel cut-out.
- Space — takes a few module widths (typically 2–4 DIN modules).
- Typical roles — sub-metering, tenant billing, solar monitoring, EV charger monitoring.
- Communications — RS485/Modbus, pulse output, and Wi-Fi/4G options are common.
Panel (Flush-Mount) Meters: Built for the Front Panel
A panel meter mounts through a cut-out in the front of a switchboard or control panel, with the display facing the operator. They are larger, heavier and built for permanent installation where the meter is read directly by an operator or inspector.
- Installation — requires a square or round panel cut-out plus mounting clamps or screws.
- Space — a 96×96 mm or 72×72 mm panel footprint.
- Typical roles — main incoming feeders, generator panels, marine and industrial switchboards.
- Communications — RS485/Modbus standard; analogue outputs on many models.
Key Differences at a Glance
| Factor | DIN-Rail Meter | Panel Meter |
|---|---|---|
| Mounting | 35 mm rail inside enclosure | Front panel cut-out |
| Footprint | 2–4 DIN modules | 96×96 / 72×72 mm |
| Enclosure | Standard distribution board | Dedicated switchboard or panel |
| Reading | Via door window or remotely | Directly on the front face |
| Typical use | Sub-metering, tenants, solar | Main feeders, generator, marine |
| Price | Lower | Higher |
Which One Should You Choose?
- Rental apartments or offices — DIN-rail meters with pulse or Modbus output let you bill each tenant accurately from one enclosure.
- Factory main incoming feeder — a panel meter gives the operator a large, always-visible readout of total consumption and power quality.
- Solar PV monitoring — a DIN-rail bidirectional meter mounted next to the inverter is the standard configuration.
- Marine or mobile applications — panel meters with ruggedized construction withstand vibration and are readable in any orientation.
Wiring and CT Considerations
Both form factors are available as direct-connected (up to 100 A typical) or transformer-operated with external current transformers for higher currents. Always size the CT ratio so full load sits between 60–100% of the CT primary, and keep CT secondary wiring short and twisted to preserve accuracy. For three-phase installations, both DIN and panel meters are available in 3-phase 4-wire configurations — see our guide to three-phase meters for the wiring details.
FAQ
Can a DIN-rail meter replace a panel meter?
Yes in most cases, provided the enclosure has space on a DIN rail and the display can be read through a door window. Where the meter must be read directly on the switchboard face, keep a panel meter.
Do both support Modbus RTU?
Most commercial models in both form factors support RS485/Modbus RTU, pulse output, and increasingly Wi-Fi/4G IoT options. Confirm the protocol list on the datasheet before ordering.
Which is more accurate?
Accuracy depends on the metering standard (Class 1.0 or Class 0.5S), not the form factor. Choose Class 1.0 for billing-grade general use and Class 0.5S for energy audits and high-load feeders.
Conclusion
DIN-rail meters win for modularity, cost and retrofit-friendly installation; panel meters win for operator-visible main feeder monitoring in industrial switchboards. Define where the meter will live, who reads it, and what data it must export — then pick the form factor that fits. Yomin Electric offers both families with Class 1.0 accuracy, RS485/Modbus and prepaid options. Compare the energy meter range or send us your panel layout for a recommendation.
