Dropout Fuses: Type K Links and Overhead Protection

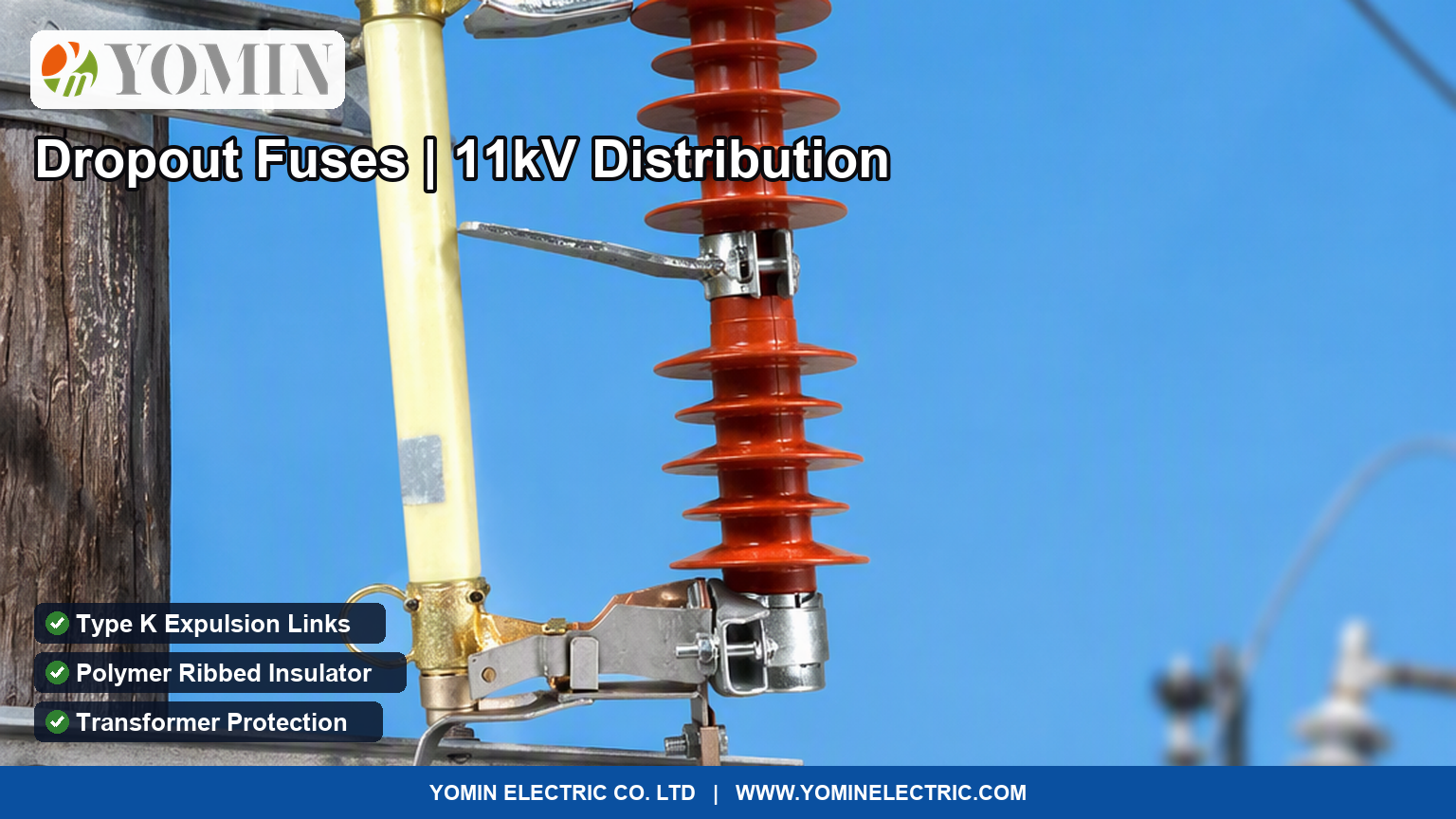

On an overhead distribution network, the device protecting a transformer is often the cheapest protection equipment on the pole — and the one that gets specified with the least care. A dropout fuse (drop-out cutout) is an expulsion-type fuse mounted on a crossarm: when its link melts, the carrier tube swings open on a hinge, giving the line crew a visible, unmistakable indication that the circuit is dead. That visible gap is the feature no enclosed device can match, and it shapes where dropouts belong.

How an expulsion fuse clears a fault

Inside the carrier tube sits a fuse link — typically a silver or tin-alloy element on a flexible tail. When the element melts, the arc heats the tube's inner lining, which generates gas. The gas blast blows the arc out of the open end of the tube at current zero, and the spring-loaded carrier, released by the melted link, drops or swings open. The whole sequence takes a few cycles.

Two consequences follow. First, the device is self-indicating: an open carrier is visible from the ground with binoculars, which is why utilities standardize on dropouts for transformer and lateral protection. Second, the clearing produces a visible gas vent and, on some designs, a small report — acceptable outdoors, unthinkable indoors. Expulsion fuses belong on poles and in outdoor substations, never in enclosed MV panels, where an HRC cartridge is the correct device.

Fuse links: type K, type T and why the letter matters

The link is the replaceable element, and its speed class determines coordination. Type K links are fast (speed ratio roughly 6–8), type T slow (roughly 10–13). The ratio describes how the minimum melting current at 0.1 s relates to that at 300 s. Choosing between them is a coordination decision: the link must clear faults on its own section before the upstream device operates, yet survive transformer inrush and cold-load pickup.

Our 11 kV silver type-K links are made for dropout expulsion cutouts in the 25 A class and adjacent ratings. When specifying, the three numbers that matter are rated voltage of the cutout, continuous current of the carrier, and the link's ampere rating and speed class. A type-K link substituted for a type-T in a coordinated scheme will nuisance-blow on inrush; a type-T substituted for a K will fail to coordinate downstream.

Cutout construction: what to inspect on a datasheet

• Insulator — polymer ribbed (as on our DOFC series) or porcelain; polymer resists vandalism and weighs less, porcelain has the longest field history
• Rated voltage and BIL — must match the network's insulation level
• Continuous and interrupting ratings — interrupting rating in kA or MVA must exceed the prospective fault at the pole
• Contact and hinge design — the carrier must drop freely; a sticky hinge turns a cleared fault into a hidden one
• Load-busting capability — whether the cutout is rated for load-breaking with a hook stick, or fault-interrupting only

Where dropouts and HRC fuses divide the work

A useful mental model: the dropout owns the overhead, visible-indication world — transformer primaries, laterals, capacitor banks on poles. The HRC cartridge owns the enclosed world — switchgear, ring main units, indoor transformer protection. Networks use both, and the interface between them is usually the transformer itself. For the enclosed side see our HRC fuse guide; for switching and isolation around these devices, the fuse switch disconnector guide.

We supply the H.V. DOFC outdoor series from 12 kV to 15 kV plus type-K and type-T links, with OEM markings on request.
