HRC Fuses: What High Rupturing Capacity Really Means

Ask three electrical engineers what HRC means and you will get three answers of varying confidence. The term is used loosely across markets, and the looseness costs money: a fuse specified as "HRC" without a class, a breaking capacity or a characteristic is a fuse that may or may not protect the circuit it sits in. This guide defines the term precisely, explains what the sand-filled body actually does, and gives the specification fields that make an HRC fuse order unambiguous.

What HRC actually means

HRC stands for High Rupturing Capacity — sometimes written High Breaking Capacity. It describes a fuse designed to interrupt very large fault currents safely: currents that can reach tens of kiloamps in industrial and medium-voltage networks. The distinguishing construction is a ceramic body filled with high-purity quartz sand, surrounding a precisely shaped silver or silver-alloy element.

When a fault occurs, the element vaporizes in microseconds. The sand absorbs the arc's energy, fuses into a non-conductive crust around the arc channel, and quenches it — before the fault current reaches its prospective peak. That last part is the property that matters most in practice, and it has a name: current limiting.

Current limiting: the property buyers should actually specify

A current-limiting fuse does not wait for a zero crossing. It clears the fault in less than half a cycle and, in doing so, cuts the let-through energy (I²t) to a fraction of what the unfused circuit would deliver. The downstream consequence is that switchgear, busbars and cables downstream of the fuse experience far lower thermal and electrodynamic stress than their fault rating would otherwise require. In many designs the fuse is what allows the rest of the panel to be rated economically.

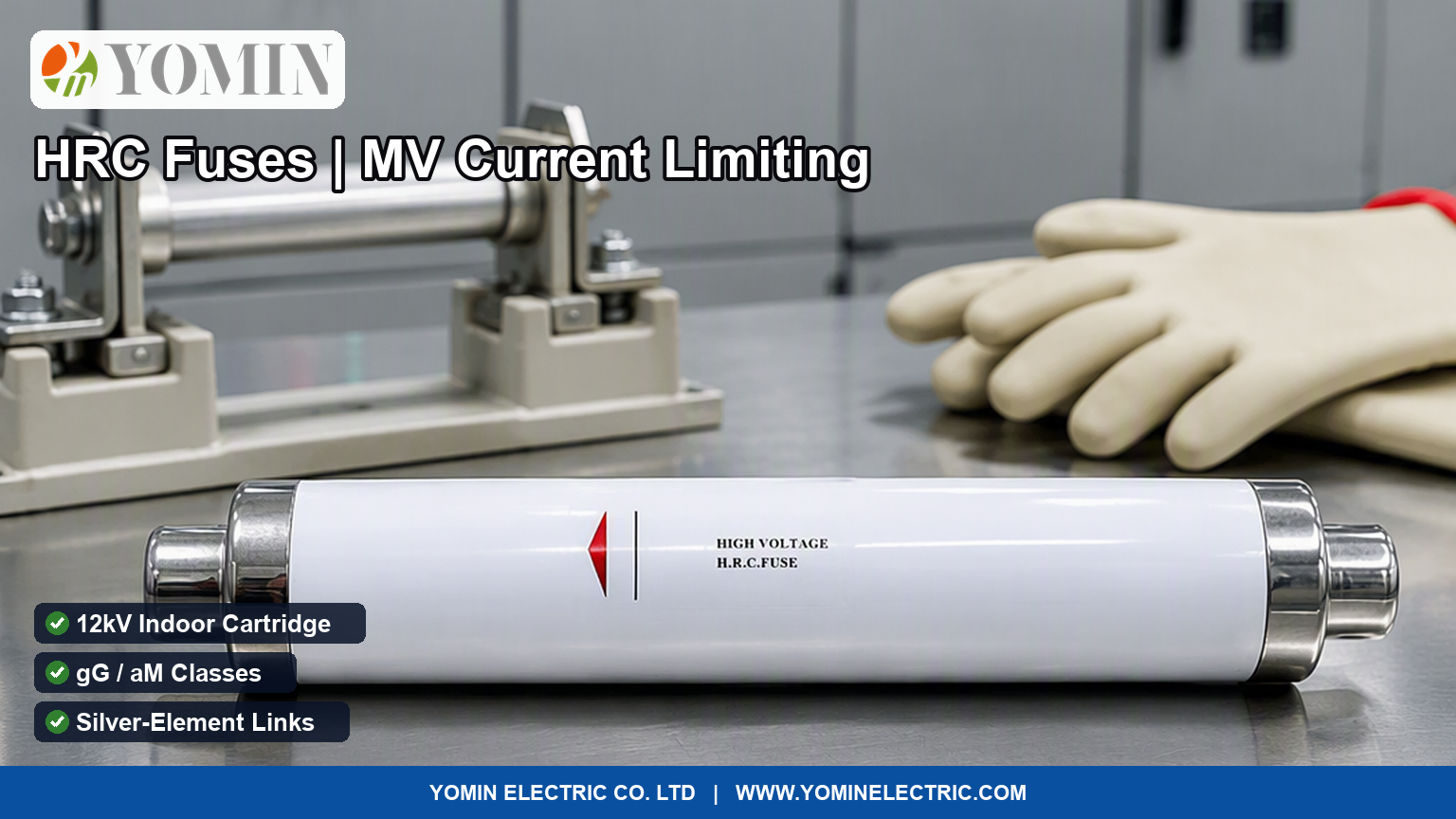

This is why the same physical fuse family appears in two very different roles: protecting medium-voltage equipment such as transformers and capacitor banks, and backing up protection in low-voltage industrial panels. Our indoor 12 kV HT HRC-type cartridge is built for the first role; the selection logic for the second is covered in our fuse and protection selection guide.

Classes: gG, aM and the MV equivalents

On the low-voltage side the IEC classes are the shorthand that removes ambiguity:

• gG (general purpose) — protects cables against both overload and short circuit. The default for feeder protection.
• aM (motor / partial range) — short-circuit protection only; it deliberately tolerates motor starting currents and relies on a separate overload device. Pairing an aM fuse with a thermal relay is standard motor-starter practice.

On the medium-voltage side the equivalent distinctions are between general-purpose MV fuses and back-up (partial-range) MV fuses, the latter requiring a series device to handle low overcurrents. Mixing these up is a classic MV design error: a back-up fuse asked to clear a small overload can fail destructively.

The specification fields that make an order unambiguous

• Rated voltage — the fuse must be rated at or above system voltage; MV fuses are not interchangeable across voltage classes
• Rated current — chosen against the protected equipment's load, not the cable alone
• Breaking capacity in kA at the rated voltage — must exceed the prospective fault current at the point of installation
• Class / characteristic — gG, aM, or the MV general-purpose vs back-up distinction
• Physical form and dimensions — DIN/IEC cartridge sizes, or MV end-cap style (e.g. the bolted contact arrangement on our 12 kV cartridge)
• Indication — whether a striker pin or blown-fuse indicator is required for coordination with switches

Where HRC fuses sit in a real scheme

Typical positions: primary protection of distribution transformers (often combined with a dropout fuse on overhead networks), capacitor bank protection, motor circuit back-up behind a contactor, and feeder protection in MV switchgear where the fuse's current-limiting action lets the enclosure stay compact. In every case the fuse is selected together with the device it backs up — see our fuse switch disconnector guide for the combination logic.

We manufacture HRC-type cartridges including the indoor 12 kV HT limited-current type, with OEM ratings and dimensions against your drawing. Send the system voltage, prospective fault current and protected equipment rating, and we will return a matched specification.
