Fridge Guards: How Voltage Protectors Save Compressors

In markets with unstable supply, the refrigerator is usually the most expensive appliance in the house and the least protected. The damage rarely comes from the outage itself — it comes from what happens around it: sustained undervoltage that overheats the compressor motor, overvoltage spikes when the network recovers, and rapid re-starts that slam the compressor against head pressure before refrigerant pressures equalize. A voltage protector — the device sold across Africa and South Asia as a "fridge guard" — addresses all three. This guide explains what the device actually does, why the delay matters more than the cutoff, and how to specify one properly.

The three failure modes a guard prevents

• Sustained undervoltage. A compressor motor drawing full load at 170 V instead of 230 V runs hot; insulation ages, and the motor eventually fails. The guard disconnects below a set threshold.
• Overvoltage on recovery. When a weak network recovers after an outage, voltage can swing high. The guard disconnects above its upper threshold.
• Rapid cycling. The killer most people never hear about. If power returns seconds after an outage and the compressor restarts immediately, it starts against trapped head pressure — locked-rotor current, mechanical shock. The guard's time delay is what prevents this.

The delay is the product

Every competent guard implements a restart delay — typically two to four minutes — after power returns or after a trip. That delay lets refrigerant pressures equalize so the compressor starts unloaded, and it rides out the chaotic first minutes of network recovery when voltage is at its worst. A "protector" without a real delay is a switch with LEDs. When comparing units, the delay behavior — fixed or adjustable, and whether it also applies after a trip — is the first specification to read.

Display, adjustment and self-restoring behavior

Our protector family covers the range of what buyers actually need:

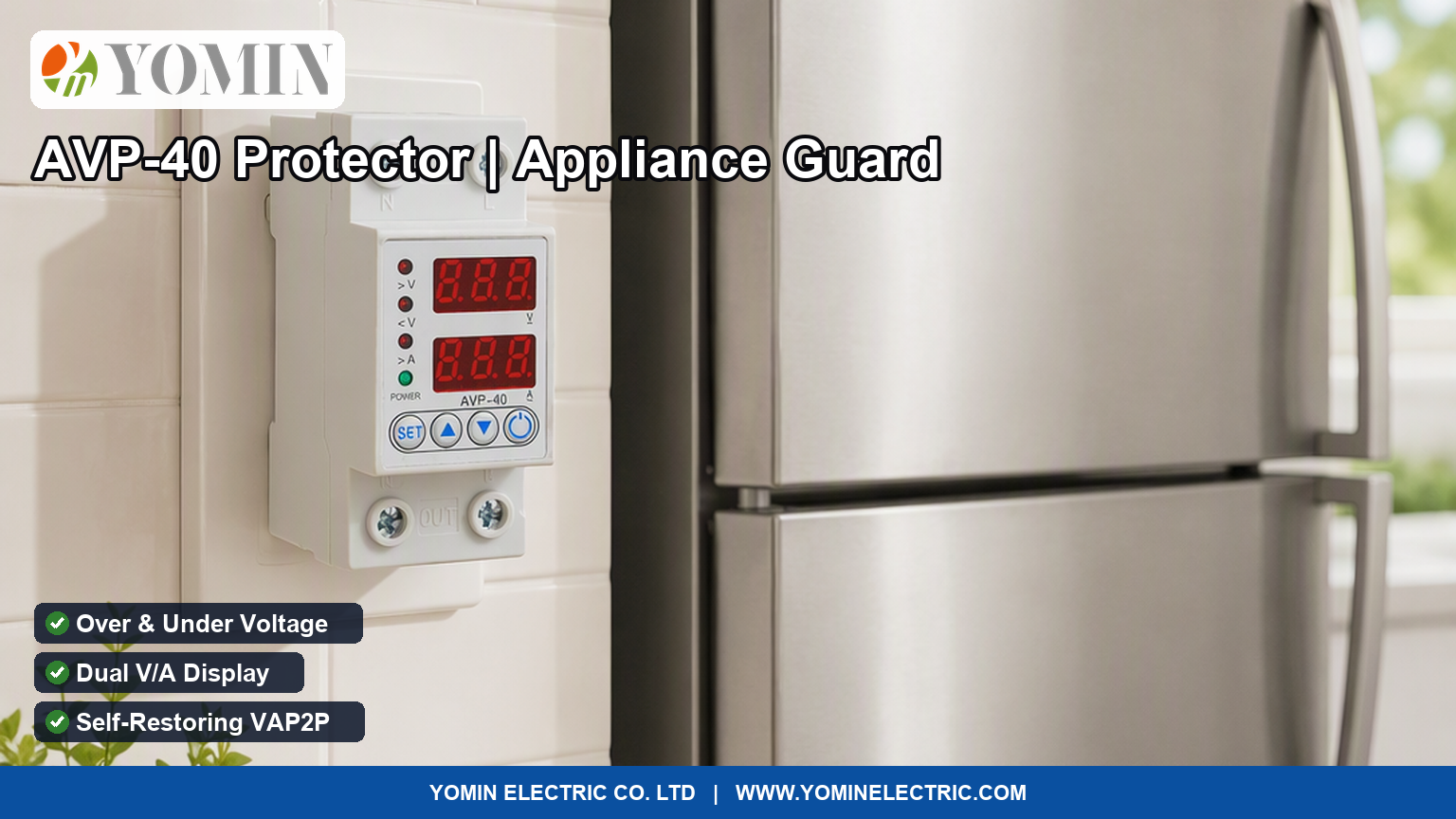

• Dual-display units (AVP-40 style) show live voltage and current on seven-segment displays with over-V, under-V and over-A indicators — the operator sees why it tripped, which matters in shops and clinics, not just homes.
• Adjustable thresholds let an installer match local network reality; a fixed-threshold guard set for one country's nominal can nuisance-trip in another's.
• Self-restoring (VAP2P style) units reconnect automatically once voltage stays within band for the delay period — essential for unattended equipment.
• WiFi-enabled 63 A protectors add remote visibility for commercial installations.

Sizing and installation

Match the protector's current rating to the appliance's full-load current with margin — a domestic refrigerator typically draws well under 5 A running but presents a starting inrush several times that; the protector must tolerate the inrush without nuisance tripping while still protecting against sustained overcurrent. Install it at the socket or in the appliance's dedicated circuit, upstream of the appliance, and never daisy-chain multiple high-load appliances behind one guard. For whole-installation protection the correct device is a stabilizer or a panel-level protector — see our stabilizer sizing guide for that decision.

Specification checklist

• Operating voltage window (adjustable or fixed) vs. local supply reality
• Restart delay: duration, and whether it applies after trips as well as outages
• Current rating vs. appliance full-load and inrush
• Indication: LEDs only, or voltage/current display
• Self-restoring vs. manual reset for the intended use
• Connection form: plug-and-socket unit vs. DIN/wired unit for panel mounting

We manufacture the full protector family including the VAP2P dual-display self-restoring type, with OEM thresholds, branding and plug standards for your market.
