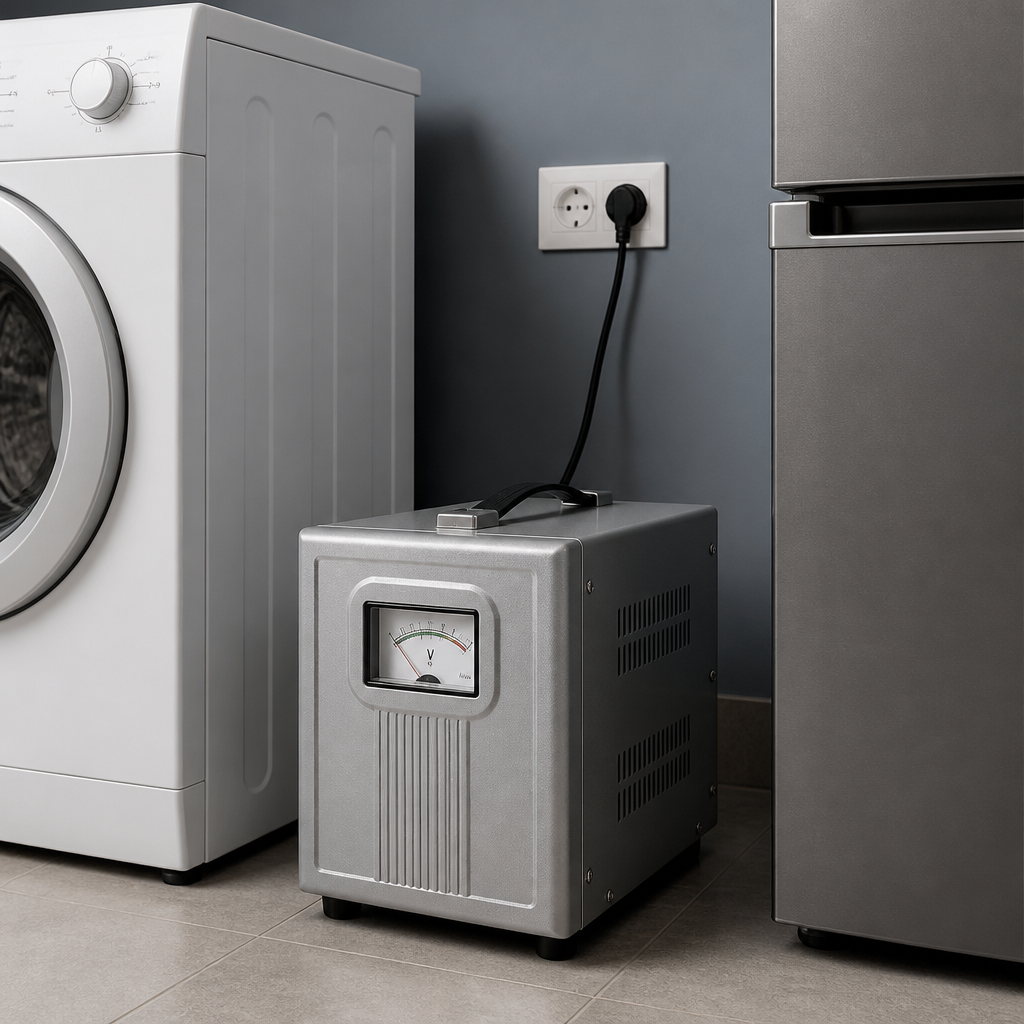

Voltage Stabilizer Sizing: Matching the Right kVA to Your Load

A voltage stabilizer protects sensitive equipment from fluctuating, low or high supply voltage — but only if it is correctly sized. An undersized stabilizer trips under load; an oversized one wastes money. This guide shows how to size an automatic voltage stabilizer for homes, shops and industrial equipment in five simple steps.

Why Voltage Fluctuation Is a Problem

Mains voltage in many regions swings between 150–260 V while most equipment is designed for 220–240 V ±10%. Low voltage makes motors overheat and run slowly; high voltage shortens capacitor and power-supply life; brownouts can kill refrigeration and control systems outright. An AVR (automatic voltage regulator) holds the output at a steady level regardless of input swings.

Step 1: Add Up the Connected Load

List every device the stabilizer must protect and note its power draw in watts (W) or kilowatts (kW). Use nameplate values or the running power, not the rated input current alone.

• Refrigerator: 150–300 W
• Air conditioner (1.5 HP): ~1,200–1,500 W running, higher at start
• Water pump (1 HP): ~750 W running
• Computer + monitor: 200–400 W
• CNC machine: 2–10 kW depending on spindle

Step 2: Convert Watts to VA (Stabilizer Rating)

Stabilizers are rated in VA (volt-amperes). For resistive loads (heaters, lamps, ovens) VA ≈ W. For inductive loads (motors, compressors, pumps) multiply watts by 1.5–2 because of the power factor and starting surge:

Required VA = Total running W × 1.5 to 2.0

Example: a 1.5 HP AC (1,500 W running) plus lights (200 W) = 1,700 W × 1.7 ≈ 2,900 VA. A 3 kVA stabilizer is the right size; 5 kVA gives headroom for future loads.

Step 3: Check the Input Voltage Range

Stabilizers specify an input range they can correct (e.g. 140–260 V) and an output tolerance (e.g. 220 V ±5%). In areas with very low or erratic supply, choose a wide-input model — a unit rated only for 180–250 V will drop out exactly when you need it most.

Step 4: Choose the Technology

Servo stabilizers are the mainstream choice for homes and shops; static units protect precision electronics that cannot tolerate even brief dips.

Step 5: Single-Phase or Three-Phase?

Homes and small shops use single-phase stabilizers (1–30 kVA). Factories and buildings with 3-phase supply need a three-phase stabilizer — either one unit for the whole supply or individual units per phase where loads are unbalanced. Match the stabilizer's phase count and connection (delta/wye) to your incoming supply.

Sizing Examples

Common Sizing Mistakes

• Using the fuse or breaker rating as the load figure — fuses are larger than the real load, over-sizing the stabilizer and wasting money.
• Ignoring starting current — motors draw 3–7× running current for a second; the stabilizer must ride through it.
• Forgetting the input voltage range — a "5 kVA" unit that only works from 180 V up is useless where supply drops to 150 V.
• Sizing for current load only, with no headroom for the extra AC or freezer next year.

FAQ

Can one stabilizer protect the whole house?

Yes — size it on the total household load (typically 3–10 kVA) and install it after the main breaker. See our voltage stabilizer guide for installation details.

What if the stabilizer trips under load?

The unit is undersized, the input voltage is below its working range, or a connected device has an abnormal starting surge. Re-check the VA calculation and input range before upgrading size.

Do I need a stabilizer for LED lighting?

LED drivers tolerate a reasonable range, but in areas with severe fluctuation, stabilizers protect LED fixtures from premature failure — a cheap insurance for commercial lighting.

Conclusion

Size stabilizers on real connected load, multiply for starting surge, check the input range, pick servo or static by application, and add 20–30% headroom. A correctly sized stabilizer runs cool, silent and trouble-free for years. Yomin Electric manufactures relay, servo and static stabilizers from 0.5 kVA to 100 kVA, single and three-phase. Browse the stabilizer range or send your load list and we will size it for you.
