Rogowski Coil vs Current Transformer: Which One Should You Specify?

Direct answer: a current transformer uses an iron core and outputs a proportional current (typically 5 A or 1 A) that can drive a meter directly. A Rogowski coil has an air core, outputs a low-level voltage proportional to the rate of change of current, and needs an integrator. CTs win for revenue metering and direct meter connection; Rogowski coils win for very high currents, wide dynamic range and awkward conductor geometry.

A note on where we stand: Yomin manufactures current transformers, not Rogowski coils. This guide is written as a genuine comparison rather than a sales piece, and it says plainly where a Rogowski coil is the better engineering answer. If your application calls for one, you should use one.

How Each One Works

A current transformer is a transformer. Primary current through the core induces a proportional current in the secondary winding. The iron core is what makes the ratio stable and the output strong enough to drive a burden directly.

A Rogowski coil is a helical winding on a non-magnetic (air) core. Because there is no iron, there is nothing to saturate — but there is also no transformer action producing usable current. The coil outputs a voltage proportional to di/dt, and an integrating circuit converts that back into a current-proportional signal.

The Comparison That Matters

When the CT Is the Right Answer

• Revenue and billing metering. Utility approval frameworks are built around CT accuracy classes. A Class 0.5 CT is a known, accepted quantity.
• Direct meter connection with no added electronics. A CT's 5 A output drives a standard meter with nothing in between — fewer components, fewer failure points, no auxiliary supply.
• Standard LV panel work. At 100–4000 A with normal busbar or cable geometry, a CT is simpler and cheaper.
• Long service life with zero maintenance. A passive iron-core device with no electronics has very little to go wrong.

When the Rogowski Coil Is the Right Answer

• Very high fault currents where saturation is the problem. No core, no saturation — the output stays linear where a CT would flat-top.
• Very wide dynamic range in one device, without switching ranges.
• Awkward or very large conductors. A flexible coil wraps a bundle or an irregular bar that no practical CT window would accept.
• Weight- or space-constrained installations at high current, where an equivalent CT would be impractically heavy.
• Transient and power-quality analysis, where wide bandwidth matters more than steady-state billing accuracy.

Two Practical Cautions

Neither device measures DC. Both rely on a changing magnetic field. For DC measurement you need a Hall-effect or fluxgate sensor — a different technology entirely.

A Rogowski coil's integrator needs power. That means an auxiliary supply and active electronics in the measurement chain. On a site where supply reliability is uncertain, a passive CT has a real robustness advantage.

Yomin's CT Range

For applications where the CT is the correct choice, our range covers:

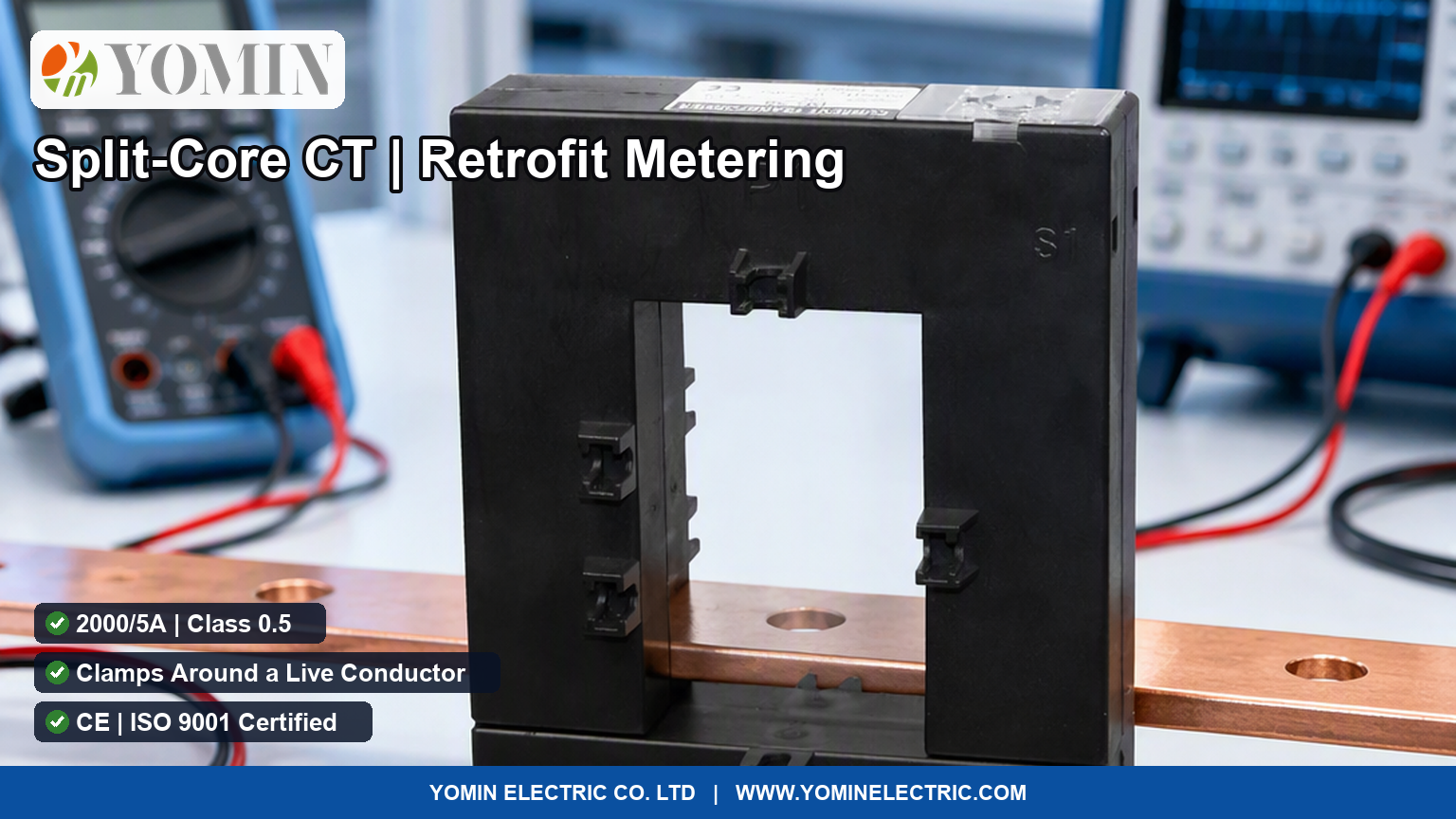

• Split-core — NLH Series, clamps around a live conductor for retrofit without shutdown. See the split-core CT guide.
• Solid-core / toroidal — MSQ, NSQ, MES series.
• Range — 5–4000 A, Class 0.5 and 1.0, 50/60 Hz.
• Custom ratios and window dimensions to order.

On choosing between accuracy classes, see our CT accuracy class guide. For the deeper physics of coil geometry, our earlier piece on shape and winding density in Rogowski coils goes further into the theory.

FAQ

Can a Rogowski coil replace a CT for billing?

Sometimes, but approval is jurisdiction-specific and CT-based metering has far broader acceptance. Check with the utility before designing around one.

Which is more accurate?

Neither wins outright. A good CT is more accurate within its rated range; a Rogowski coil holds linearity across a far wider range. Match the device to the range you actually need to measure.

Why does my CT read wrong during faults?

Almost certainly saturation — expected behaviour for a metering CT, which is deliberately designed to saturate and protect the meter. If you need accurate fault-current measurement, use a protection-class CT or a Rogowski coil.

Does Yomin supply Rogowski coils?

No. We manufacture current transformers. If your application genuinely needs a Rogowski coil, we would rather tell you so than sell you the wrong instrument.
