Digital Timer Switches: DIN Rail Schedules That Last

A timer switch is the simplest automation device in a panel and the one most often bought wrong. The failure is rarely the timer itself; it is a mismatch between the timer's switching capability and the load it is asked to switch. LED drivers, contactor coils and small motors are not resistive heaters, and a timer rated "16 A" on a resistive basis can weld its contacts on an inrush-heavy LED bank in weeks. This guide covers the DIN-rail digital timer family — our TC01 and the WiFi TUYA variants — and the four numbers that decide whether the installation lasts.

The four numbers that decide the installation

• Contact rating and type — resistive vs inductive vs lamp-load ratings are different numbers. Ask for the lamp-load or AC-1/AC-3 style rating that matches your load, not the headline amp figure.
• Channel count and contact form — one changeover contact covers most single-load schedules; street lighting with two zones needs two channels or two devices.
• Power reserve — a digital timer with a supercapacitor or battery reserve keeps its program through outages. Without reserve, every grid interruption resets the schedule to an unknown state, which for a lighting circuit means lights on at noon.
• Programming granularity — 7-day programs with minute resolution cover commercial schedules; astronomical (sunrise/sunset) programs belong to street lighting and are a different device class.

DIN-rail digital timers: where they win

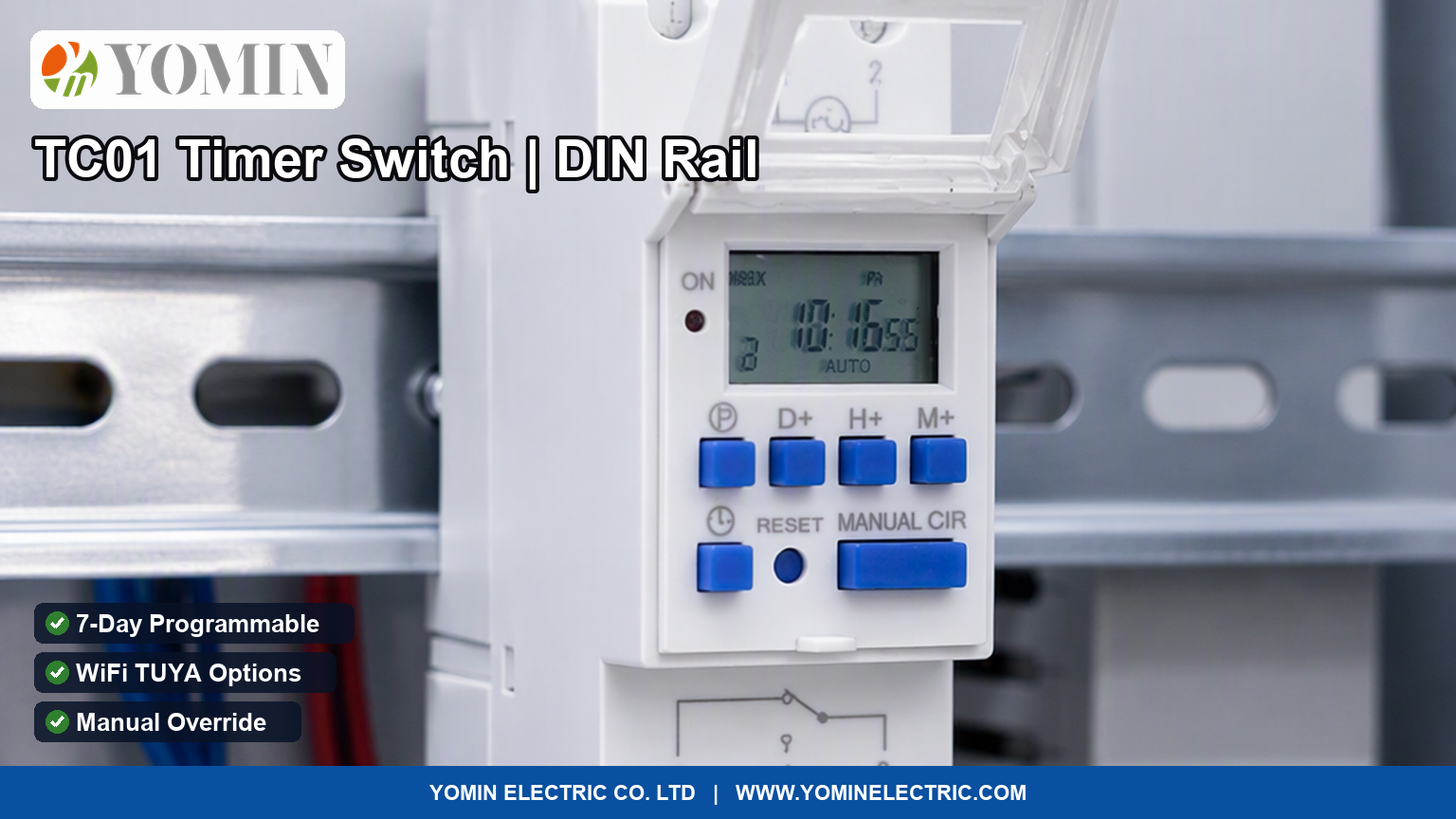

The TC01-style DIN-rail timer lives inside the enclosure with everything else: protected, labeled, and wired through terminals rather than plugged into a socket. That is the right choice for panel builders — the schedule becomes part of the documented installation instead of a consumer gadget someone can unplug. The flip-up cover over the display and buttons, as on our TC01, keeps the interface clean while allowing commissioning changes without removing the device.

Typical applications: water heater and boiler schedules, ventilation and extractor fans, signage and facade lighting, irrigation pumps, and off-peak load shifting where the tariff rewards moving consumption to cheap hours. In each case the timer is switching a contactor or relay, not the load directly — which brings us to the next point.

Switch the contactor, not the load

The single most reliable pattern in timer installations is: timer contact → contactor coil → load. The timer then switches a few tens of milliamps of coil current instead of the load's inrush, its contacts live essentially forever, and the contactor provides the isolation and making capacity the load actually needs. For motor loads this also lets the thermal protection sit where it belongs, on the motor starter. Our terminal block guide covers the wiring side of the same panel.

WiFi and app-controlled timers: when they earn their place

The TUYA-based WiFi timer adds remote schedule changes, grouping and status visibility from a phone. That is genuinely valuable for multi-site operators — a facilities manager changing forty sites' schedules from one app beats forty site visits. It is the wrong choice where the network is unreliable or where the installation must behave identically with or without connectivity; in those cases the standalone digital timer with local reserve is the more honest engineering answer. Note that several of our WiFi timer meters combine metering and switching in one DIN module, which suits subletting and cost-allocation use cases.

Specification checklist

• Load type and inrush character (LED driver, coil, motor, resistive)
• Whether the timer switches the load directly or a contactor coil (prefer the latter)
• Program type: 7-day digital, astronomical, or app/WiFi
• Power reserve duration through outages
• Supply voltage and DIN module width available in the panel

TC01 DIN-rail timers and WiFi TUYA timer meters are available with OEM branding and program presets. For metering with integrated control, see our three-phase meter guide.
