Cable Lugs: DT, DTL-2 and DL — Choosing the Right Termination

A cable lug is a half-inch of metal that decides whether a joint runs cool for twenty years or becomes a maintenance ticket. The failure mechanisms are always the same three: wrong material pairing, wrong crimp geometry, or a conductor that never matched the barrel. This guide covers the lug families we manufacture — DT copper, DTL-2 bimetal and DL aluminium — and how to specify each one correctly.

The three families, and when each is right

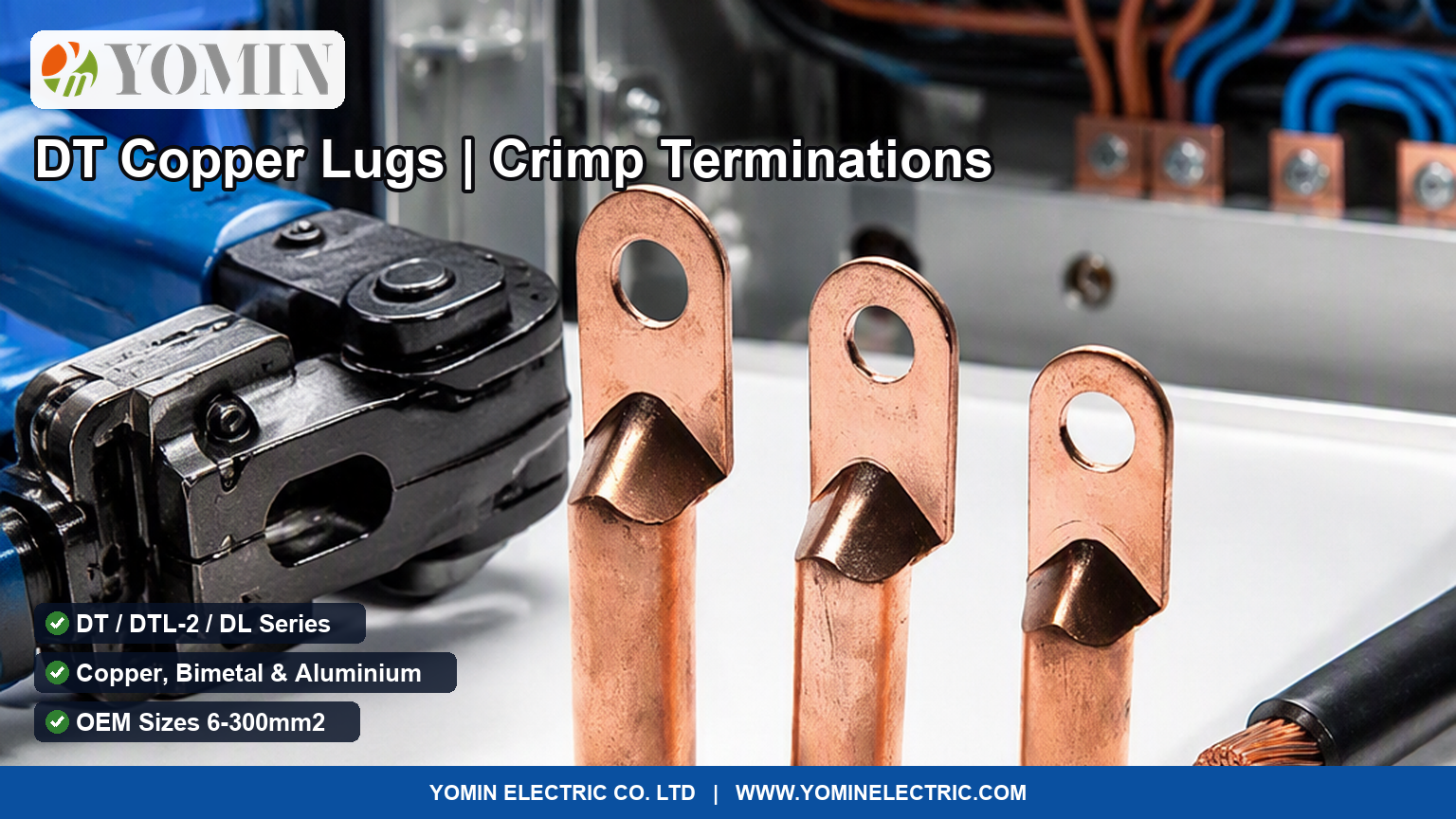

DT copper lugs are the default for copper conductors: a seamless copper barrel, tin-plated, with a single bolt palm. They are what you specify on switchgear, transformer terminations and panel feeders where both sides of the joint are copper.

DTL-2 bimetal lugs exist for the copper-to-aluminium problem. Crimping a plain copper lug onto an aluminium conductor creates a galvanic couple that corrodes at the interface; the DTL-2 puts a friction-welded copper-aluminium transition inside the barrel so each metal meets its own kind. If your installation mixes aluminium cable with copper busbar — extremely common in cost-driven distribution work — the bimetal lug is the correct component, not a workaround.

DL aluminium lugs serve aluminium conductors terminated onto aluminium or treated steel pads, and they are the light, low-cost choice where the whole circuit is aluminium.

Sizing: the barrel must match the conductor, not the bolt

Buyers routinely order lugs by bolt hole and discover the barrel is wrong. The barrel is sized to the conductor cross-section — 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² and beyond — and the palm hole is chosen separately to clear the stud it lands on. Our DT lugs carry the mm² marking stamped on the palm for exactly this reason: the installer can verify the match at a glance, years after the paperwork is gone.

Two traps worth naming. Stranded versus solid conductors of the same cross-section have different outer diameters; a lug barrel dimensioned for stranded can sit loose on solid wire. And flexible Class 5 conductor with a ferrule changes the stack-up again. When in doubt, send the conductor specification with the inquiry — a lug quoted against the actual conductor is a lug that crimps correctly the first time.

Crimp quality is decided by the die, not the muscle

A crimp is a cold weld by compression. The die nest must match the lug barrel and conductor exactly; an undersized die work-hardens and cracks the barrel, an oversized die leaves voids that heat-cycle loose. Use the manufacturer's die chart, crimp in the specified sequence from barrel end toward the palm, and inspect for the marked indentation depth. Pull-testing samples from each batch of terminations remains the cheapest insurance in electrical construction.

Where vibration or thermal cycling is severe — machine tools, gensets, traction equipment — consider that a correctly made crimp actually outperforms a bolted mechanical lug over time, because the compressed interface does not relax the way a bolted joint does. This is the same reason flexible busbars win vibration-prone connections: the joint is the weakest design decision in most panels, not the conductor.

Specification checklist

• Conductor material and cross-section (and stranded class)
• Lug family: DT copper / DTL-2 bimetal / DL aluminium
• Palm hole diameter and palm width to clear the stud and sit on the pad
• Barrel type: standard, bell-mouthed for easy insertion, or with inspection hole
• Plating: tin is standard; silver or nickel for specific environments
• Die chart and crimp sequence for the tool in use

We manufacture the full range in-house, including OEM barrel and palm configurations against your drawing. For panel wiring below these current levels, see our terminal block guide; for the busbars these lugs land on, see busbar fabrication.
